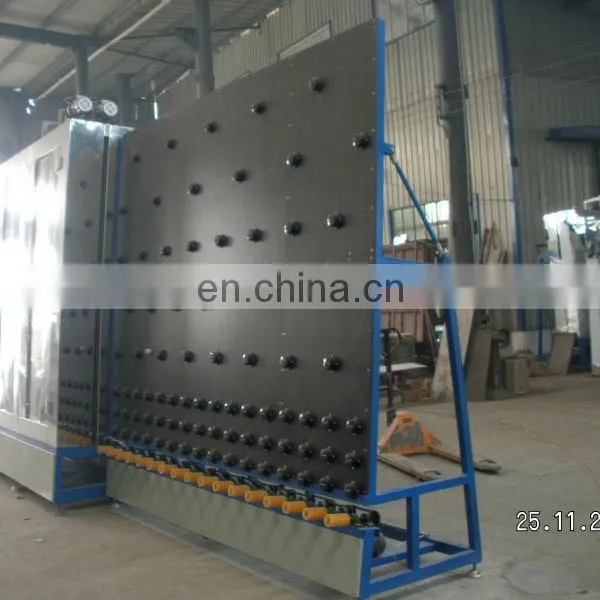

Glass Cleaning and Drying Machine
Main Features
1.The machine has Loading section, washing and drying section, washing quality inspection section.
2.LB Series Vertical Glass Washing and Drying Machine can be matched with insulating line
3.glass can be dried fast with the design of strong air knives, stainless stee washing tank.
4. the soft low-e brush can wash low-e glass, also the machine can be designed according to your special demands.
5.PLC control system with touch screen operation interface
6.Imported oil-free water proof bearings prevents the contamination to the water.
7.It has 6 brushes driving by 3 motors.
8.There is one sensor on the first transmit stage.
If the glass's height is more than 1meter, two motors start automatically to transmit the glass.If the glass is less than 1 meter, only one motor start to transmit the glass.
It saves electricity a lot.
Technique Parameter
| Model | Max.glass size | Min.glass size | Glass Thickness | Power Voltage | Weight | Size of line |
| LB2500 | 2500*3000mm | 300*500mm | 3-12mm | 19Kw | 4500Kg | 8200*1850*3100mm |
| LB2200 | 2200*3000mm | 300*500mm | 3-12mm | 19Kw | 4200Kg | 8200*1850*3000mm |
| LB2000 | 2000*2500mm | 300*400mm | 3-12mm | 15Kw | 3500Kg | 7000*1650*2800mm |
| LB1800 | 1800*2440mm | 300*400mm | 3-12mm | 15Kw | 3000Kg | 6880*1650*2700mm |
| LB1600 | 1600*2000mm | 300*400mm | 3-12mm | 12Kw | 2650Kg | 6200*1650*2500mm |
More Details
Other Related Machines
CNC Glass Cutting Machine
Semi-automatic Glass Cutting Machine
Manual glass Cutting Machine
Glass Cutting Line
Guarantee & Aftersales service
1.Guarantee the complete machine for one year, except the consumable parts.
2.24hour technical support by email or calling.
3.User-friendly english manual for machine using and maintaining.
