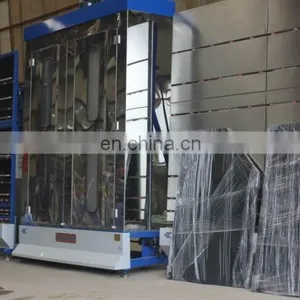

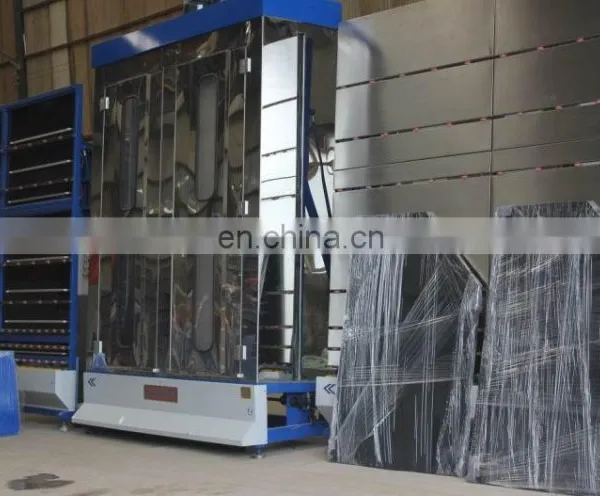

Glass Washing and dry cleaning equipment
Perfomance
Advanced Germany technology,main components adopts international famous brand, reliable performance, Power function can produce double unit,LOW-E unit ,extended unit ,Shaped unit , stepped unit , triple and so on
Glass Processing Type: Common Glass and Coating Glass
Main Features:
1. Glass washing & drying section:
A. Glass washing & drying section is made of 304# stainless steel.
B. Washing speed is 12m/min, equipped with water heating system. SKF Oil-free bearing avoid the oil molecular pollution to glass.
C. Six delivery solid rollers, are acid-proof, alkali-proof and anticorrosive. The distance is adjustable automatically.
D.NC bending rhombic air knife. Circle wind saves energy and avoid the wind pollution. Sponge down the noise.
E. Four-level clearance: three pairs of brushes and one pair of sponge rail, guarantee the washing quality. Six high- temperature nylon brushes, diameter is 180mm. The first two are hard brushes.
Power supply: |
380V 50Hz |
Air consumption: |
200L/min |
Power: |
24kW |
Max. process glass height |
2500mm*3000mm |
Min. process dimension: |
200×450mm |
Thickness of glass sheet: |
3~19mm |
Max. process speed: |
50m/min |
Note: we can supply according to the max glass size you want to process, as following:
Power supply: |
380V 50Hz |
Air consumption: |
200L/min |
Max. process glass: |
1600X2000mm, 1800x2500mm, 2200x3000mm, 2500x3000mm |
Min. process dimension: |
200×200mm |
Thickness of glass sheet: |
3-19mm |
Max. process speed: |
50m/min |
Payment Method:
30% of machine value as deposit is paid by T/T, 70% Pay the balance before shipment.
Delivery Item:
30 days after our company received the first payment that our customer give me.
Service Item:
The manufacturer will send technician(s) to buyer’s factory for providing
installation and commissioning and train service.
Warranty period:
1 year since the date of B/L, in warranty period, the manufacturer can provide free
charge of replace spare parts because of machine itself quality problem.
Contact person: Miss Ceci
Skype: missliu106
TM:1000395095
Tel: 86-15098968538
