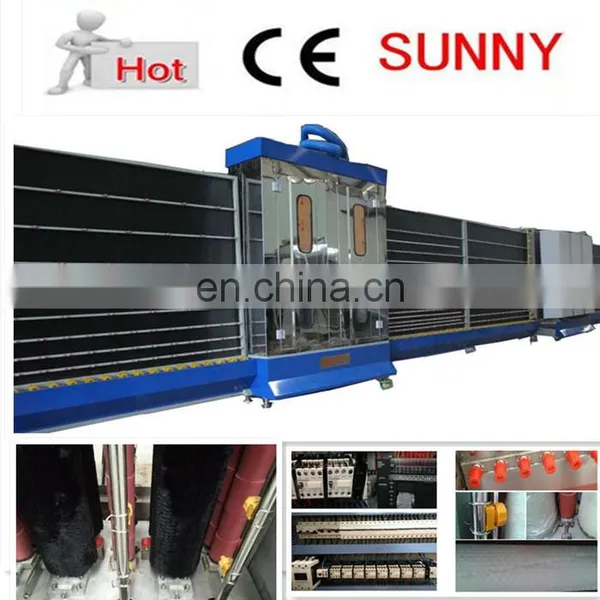

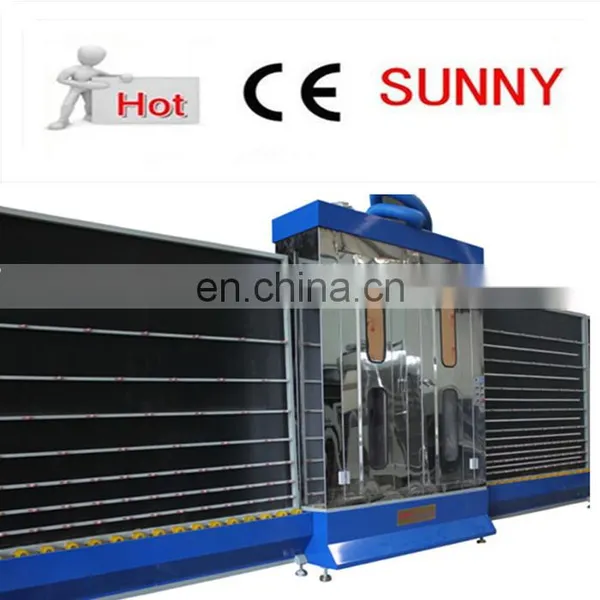

Vertical Glass Washer Machine
Apply water-proof shaft and bearing in the drying section
Perfect Low-e glass washing performance
304# Stainless steel
3.Normal specification asked by the customer:
LBW2500 glass washing machine(2500*3000mm)
Technique parameter
| Max. glass size | 2500x3000mm |
| Min. glass size | 250x450mm |
| Thickness of washing glass | 3-12mm |
| Max.Insulating Glass Thickness | UP to 50mm |
| Max.in washing section | 20m/min |
| Brush | 3 Pairs(Low-e) |
| Power voltage | 380V/50-60hz (Can change according your local power) |
| Size of line | 9000x2350x3300mm |
| Power rate | 20kw |
1.LBW2500 glass washing machine(2500*3000mm)
2.LBW2200 glass washing machine(2200*3000mm)
3. LBW2000 glass washing machine(2000*2500mm)
4.LBW1800 glass washing machine(1800*2500mm) 5. LBW1600 glass washing machine (1600*2000mm )
Washing tank
PERFORMANCE:
1.Glass washing machine adopts PLC control,cleaning machine are using digital control system,the equipment operation more humanized,high automation degree,easy operation.
2.Man-machine interface using touch screen control,automatic conversion.Operation single section
with display function.Can accurately show the machine running and fault condition,then convenient repair.
3.Automatic recognize file of coated glass and low-e glass
4.The body of washing machine are all made of industrial stainless steel 304#
5.Cleaning machine can clean coating and lowe glass,the machine have function of automatic alarm and stop when have error.
6.Washing machine adopt bearing of waterproof and lubrication
Horizontal Type for your reference:
Main Components:
NO. |
Part |
Brand |
From |
1 |
Air switch |
OMRON |
Japan |
2 |
A.C. contactor |
OMRON |
Japan |
3 |
Fiber-optic switch |
OMRON |
Japan |
4 |
Optoelectronic switch |
OMRON |
Japan |
5 |
Programmable controller PLC |
OMRON |
Japan |
6 |
Frequency Transformer |
OMRON |
Japan |
7 |
Temperature controlled switch |
OMRON |
Japan |
8 |
Human-computer surface |
OMRON |
Japan |
9 |
Bearing |
SKF |
SWEDEN
|
Remarks:
A. Pkg: for long time transportation
B. Terms: Freight On Board (FOB Qingdao)
C. From Qingdao, China
D. Delivery Time: During 15 Days After We Receive Your First Payment.
E. Payment: Telex Transfer (T/T), 30% be Paid as deposit, and the rest 70% is paid before delivery the machine.
F. Guarantee period: 1 year from the date of customer receiving the machines.
Contact ----- Ms Ceci Liu
Mobile:0086-15098968538
Trade manager: cn1000395095
Skype: missliu106
