Air flotation table
Specifications
1. Glass breaking machine
2. Air float table
3. Crosee breaking bars 1+1/1+2/2+2
4. Foot switch control or manual switch

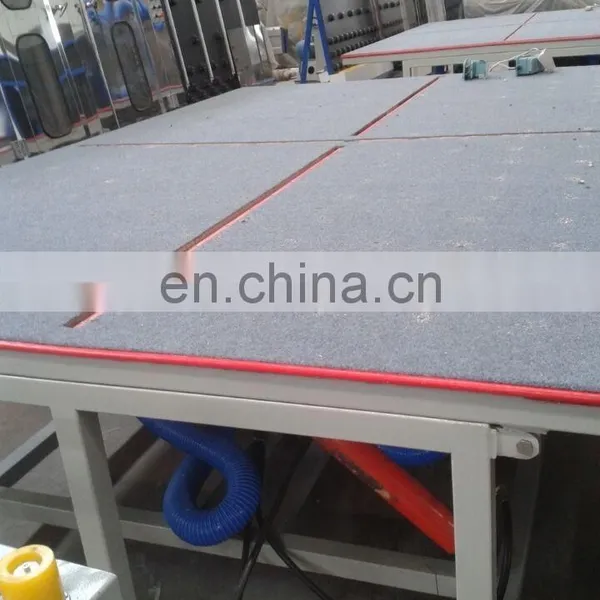

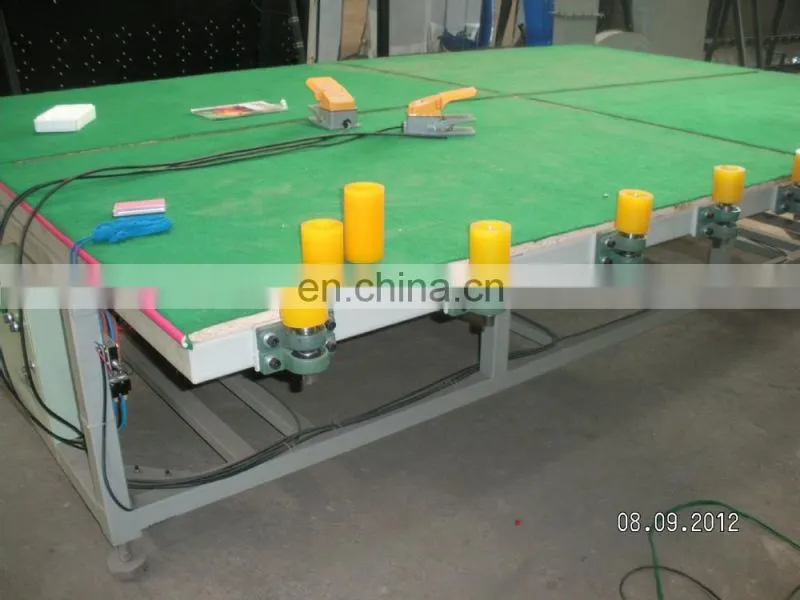

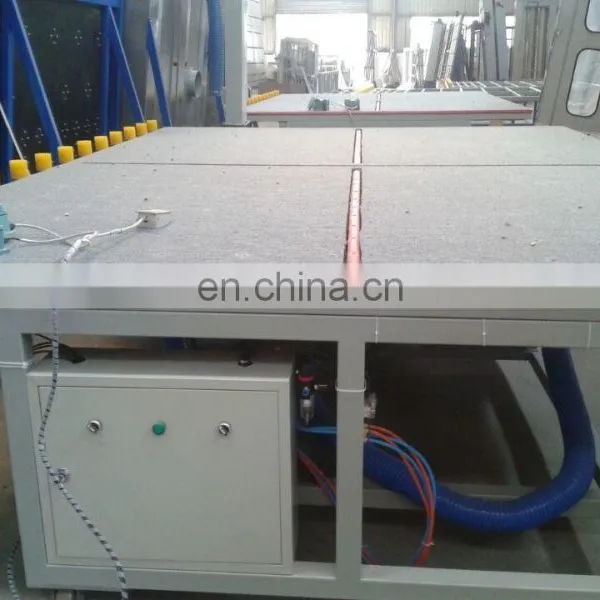

Tilting Air flotation Table -Glass Breaking Table
Function:

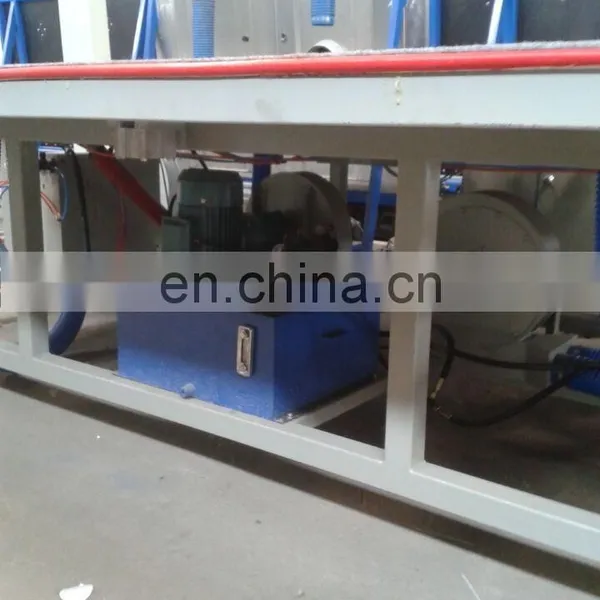

The tilting air flotation table is composed of air flotation table, “+” straight rod, air blower, air cylinder, hydraulic pressure station, electric cabinet, foot switch, etc. So it can tilt to pick up glass sheets from vertical position to horizontal position. On the working table, we can cut glass into pieces by hands. When splitting, put the cutting score of glass onto the middle part of the straight rod of the table, and close the air cushion, step the foot pedal down. The straight rod will be pushed upwards by the cylinder to break out the glass instantaneously. The table can break out glass in many positions, reducing the intensity of labor.
Max. glass size: 1800*2500mm
Glass thickness: 3-19mm
Power supply: 380v 50hz 3phase(adjustable)
Power rate: 4.5kw
Air Blower:2pcs
Foot switch: 2pcs
Hydraulic Pressure Station: 1pc
Overall dimension: 1940*2550*760mm
Weight: 1500kgs
A.Terms: Freight On Board (FOB Qingdao)
B. Delivery Time: During 15 Days After We Receive Your First Payment.
C. Payment: Telex Transfer (T/T), 30% be Paid as deposit, and the rest 70% is paid before delivery the
machine.
D. Guarantee period: 1 year from the date of customer receiving the machines.
24hour technical support by email or calling.
User-friendly english manual for machine using and maintaining.
Mobile:0086-15098968538
Skype: missliu106
