Horizontal hollow glass machinery

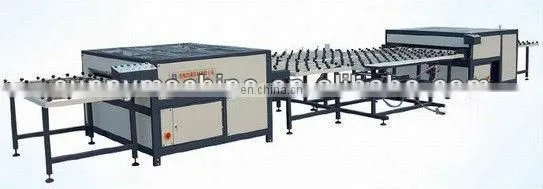

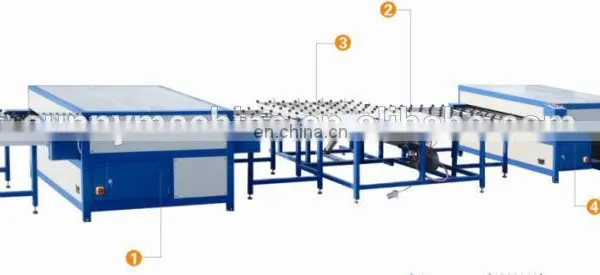

1600 Horizontal double glass machine include that
1. Horizontal glass washing Machine(Model:BX1600),
2. Strip Assembly table(JZT1600),
3. Glass Rolling over table(Model:FZT1600),
4. Horizontal Hot Press Machine(Model:YRB1600A),
5. Glass Transport Table(Model:ST1600) .
Detail Information as below :

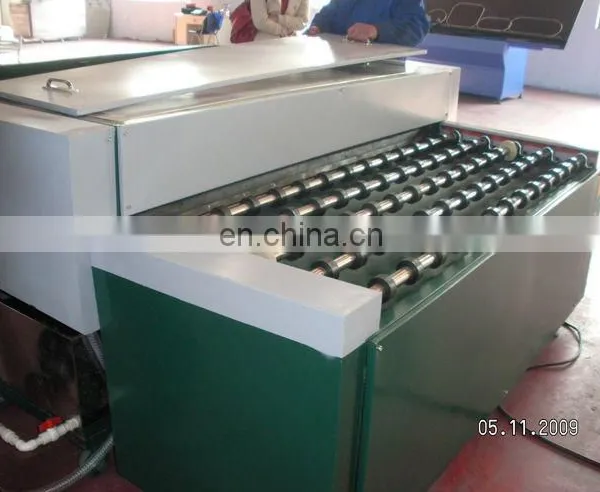

Horizontal glass washing Machine(Model:BX1600)
It is used to wash 3-12mm and 35mm-thinner glass with the horizontal structure, it is stable to transmit;stable performance with DELIXI contactor, push-button switches and pilot light.It adopts frequency stepless speed and is easy to operate as the button is concentrated on the operation table, the height of washing tank can be changed to meet the requirement of any glass thickness. Three groups of brushes assure the washing quality while two pairs of air knives assure the drying. Inspecting light is equipped to examine the glass quality

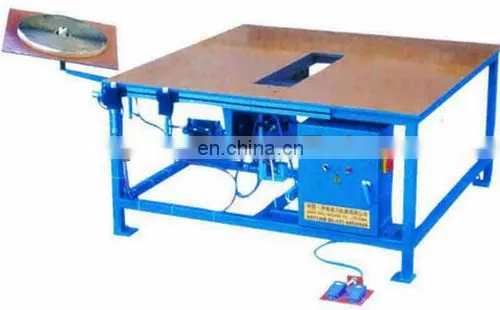

Strip Assembly table(JZT1600)
he machine is used to install the sealing strip of compound rubber-strip type double-glazing glass. The vacuum chuck is used for positioning and the universal-joint wheel is used to transfer glass with simple operation,precise positioning.
Glass Rolling over table(Model:FZT1600)

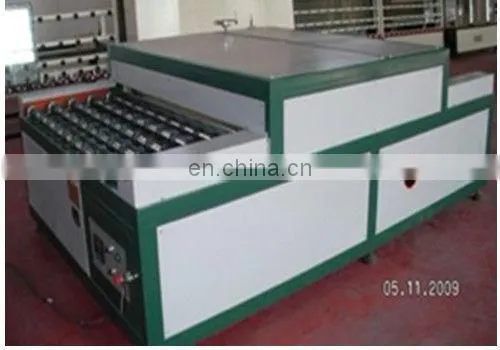

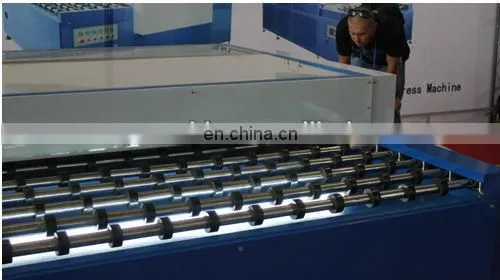

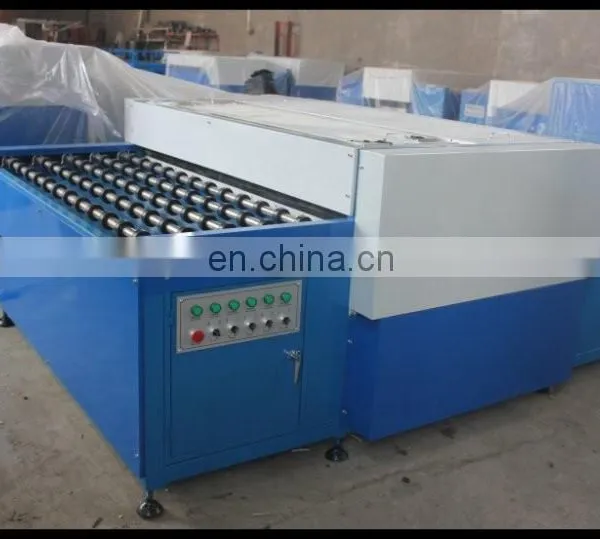

Horizontal Hot Press Machine(Model:YRB1600A)
Function and feature
1. It adopts two rubber rollers and frequency stepless speed so the transmission speed can be changed if necessary.
2.Temperature controlling device (8 heating pipes with 2kw power), Is used to keep the best temperature to assure the quality of the insulating glass.
3.The rollers in the hot stove are made of materials good in lubrication and heatproof.
Glass Transport Table(Model:ST1600)
Guarantee & Aftersales service:
1)Guarantee the complete machine for 12 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly english manual for machine using and maintaining.
