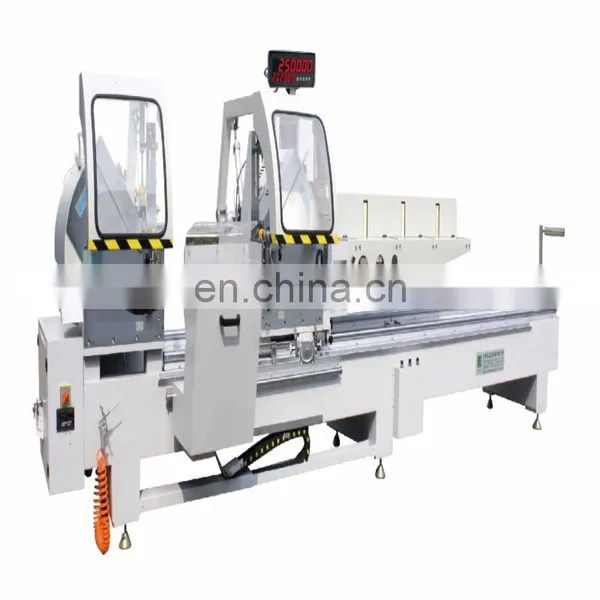

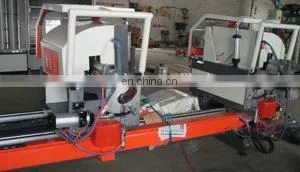

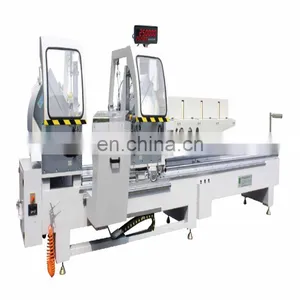

Double-head Precision Aluminum Profile Cutting Saw :
Aluminum Window Profile Cutting Saw ------- LJZ2-CNC-500x4200 Cutting Saw:
1. Features
Function:Used in aluminum door & window and curtain wall profile cutting. Feature Adopt
NC technology, and automatically finish various sizes of profile cutting. Right saw head motion
adopts high-lead ball screw motion, with high transmission accuracy, accurate locating, and
balanced work. Serial optimized length date can be input at the same time to realize continuous
cutting. Midship auto-induction material pulling rack and right-head compliant material pulling
rack give convenient and reliable profile location and clamp. Imported digital display system
automatically displays cutting length size and quantity; repeated orientation, high precision,
easy to operate. High tool motion precision and high quality cutting due to linear motion pair
used in machine guide and feeding device. High precision and good stability due to input linear
guide motion pair in feeding device. High precision principal axis special for machine tool makes
blade operate stably. Uniform speed feeding and smooth motion due to hydraulic damping cylinder.
Double saw head automatically realize cutting angle transformation between 22.5°(standby),45°and 90°profiles. Imported carbide saw blade gives high quality of cutting section and high endurance.
Self-opening protective cover makes cutting safe and convenient.
2. Technical Data
Air pressure |
0.5-0.8MPa |
Air consumption |
200L/min |
Input voltage |
380V 50HZ |
Saw blade standard |
500x4.4x30xZ120 |
Cutting angle |
90 45 65.5 (22.5) (degree) |
Cutting length |
400x4200mm |
Motor Power |
2.2KWx2 |
3. Related Machines
|
Aluminum Saw Machine |
LJMJ-420A Aluminum Door & Window Corner Connector Automatic Cutting Saw |
LJJZ-500 Corner Connector Automatic Cutting Saw for Aluminum Door & Window | |
SJ06-3700 Double-head Precision Cutting Saw for Aluminum Profile | |
LJZ2-500x4200 Double-head Precision Cutting Saw for Aluminum Profile | |
LJZ2-500x4200 Digital-display Double-head Precision Cutting Saw for Aluminum | |
LJZ2-500x4200 CNC Double-head Precision Cutting Saw for Aluminum Profile | |
LJZ2-500x4200 Integrated NC Double-head Precision Cutting Saw for Aluminum | |
|
Aluminum Corner Crimping Machine |
LJJ-120 Corner Combining Machine for Aluminum Door & Window |
LJJZ2-100x1800 Two-head Corner Crimping Machine | |
LJJZ4-100x1800x3000 Four-head corner crimping machine | |
LJJZ4-100x1800x3000 CNC Four-head Corner Crimping Machine for Aluminum | |
|
Aluminum Milling Machine |
LFX-300×100 Single-head Copy-routing Milling Machine for Aluminum Window |
LFX2-300x100 Double-head Copy Milling Machine for Aluminum Door & Window | |
LDX-200 Aluminum Profile End-milling Machine | |
LDX-250 Aluminum Profile End-milling Machine | |
SKC3-300x100 Three-hole copy-routing drill for aluminum windows | |
Punching Machine |
YL-A Pressing Machine for Aluminum Profile |
YL-1 Profile Press Machine | |
Driller |
LDZZ4 -13 Drill combination for aluminum-plastic doors and windows |
Bender |
LWJ-100 Alu-alloy Bending Machine |
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms.Sailing He
Mobile: +86 18005318120 (whatsapp)
Skype: judy.he74
