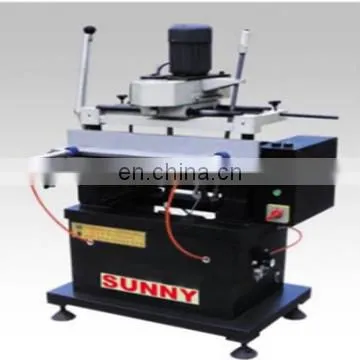

Single-head Copy-routing Milling Machine for Aluminium Door and Window LFX-300x100US$ 1,000 - 1,200MOQ: 1 Set -
Aluminium Profile Single Head Copy Routing Milling MachineryUS$ 1,000 - 1,200MOQ: 1 Set
-
Window Machine-End Milling MachineUS$ 1,100 - 1,200MOQ: 1 Set
-
Face Milling Machine/Aluminum Window MachineUS$ 1,100 - 1,200MOQ: 1 Set
-
Top Quality Curtain Walls MachineUS$ 1,100 - 1,200MOQ: 1 Set

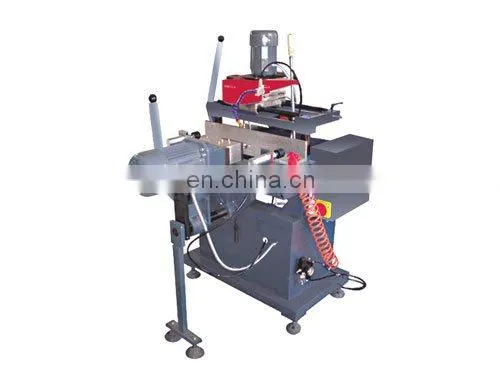

Aluminum window door profile copy routing machine-SKC3-300x100
1. Features
Used for processing various kinds of holes of aluminum doors & windows. Machine
Features: Horizontal milling head and vertical three-hole drill can process three holes
on the lock and lock-position hole at one time. Special A-alloy milling cutter with long
using life ensures high quality processing.
2. Technical Data
Air pressure |
0.5-0.8MPa |
Input voltage |
380V 50HZ |
Total power |
1.85KW |
Speed |
2800r/min |
Cutter diameter |
5mm |
Diameter of aiguilles |
12mm |
Copy routing range |
290x90mm (vertical) |
3. Related Machines
|
Aluminum Saw Machine |
LJMJ-420A Aluminum Door & Window Corner Connector Automatic Cutting Saw |
LJJZ-500 Corner Connector Automatic Cutting Saw for Aluminum Door & Window | |
SJ06-3700 Double-head Precision Cutting Saw for Aluminum Profile | |
LJZ2-500x4200 Double-head Precision Cutting Saw for Aluminum Profile | |
LJZ2-500x4200 Digital-display Double-head Precision Cutting Saw for Aluminum | |
LJZ2-500x4200 CNC Double-head Precision Cutting Saw for Aluminum Profile | |
LJZ2-500x4200 Integrated NC Double-head Precision Cutting Saw for Aluminum | |
|
Aluminum Corner Crimping Machine |
LJJ-120 Corner Combining Machine for Aluminum Door & Window |
LJJZ2-100x1800 Two-head Corner Crimping Machine | |
LJJZ4-100x1800x3000 Four-head corner crimping machine | |
LJJZ4-100x1800x3000 CNC Four-head Corner Crimping Machine for Aluminum | |
|
Aluminum Milling Machine |
LFX-300×100 Single-head Copy-routing Milling Machine for Aluminum Window |
LFX2-300x100 Double-head Copy Milling Machine for Aluminum Door & Window | |
LDX-200 Aluminum Profile End-milling Machine | |
LDX-250 Aluminum Profile End-milling Machine | |
SKC3-300x100 Three-hole copy-routing drill for aluminum windows | |
Punching Machine |
YL-A Pressing Machine for Aluminum Profile |
YL-1 Profile Press Machine | |
Driller |
LDZZ4 -13 Drill combination for aluminum-plastic doors and windows |
Bender |
LWJ-100 Alu-alloy Bending Machine |
4. Remarks
Pkg: Seaworthy packing or customize
Terms: FOB/CIF/CFR/EXW
From Qingdao, China To_______,
Delivery Time: During 30 Days After We Receive the deposit
Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and
The rest 70% is effected while delivering the goods
Trademark: SUNNY
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
