Aluminum Curtain-wall Profile Tenon Milling Machine
Machine introduction:
1. Six combined cutters can assembly any size according to the users’ requirements
2. One time feeding can process the required morties dimension of the profile surface.
3. Milling at any angle between 180º is available
4. Applicable to molding processing for end surface and level surface of a variety of profiles
5. Feeding system adopts motor drag, adjustable speed, uniform cutting and feeding speed,
Accurate processing and high quality
Euipment feature:
Power supply |
380V/50Hz |
Cutting motor power |
13.2kw(six group) |
Motor rotary speed |
2800r/min |
Feeding motor |
0.37KW |
Operation air pressure |
0.5-0.8Mpa |
Motor main shaft diameter |
Φ32mm |
Wortable measurement |
480 x 480mm |
Adjustbale space of cutter |
Φ250Milling cutter 4piecs 14"milling cutter 2 pieces |
Quantity of milling cutter |
horizotal 80mm vertical 280mm cutter 6piecs |
Contour dimension |
2070mmx1130mmx1820mm |
Weight |
1800kgs |

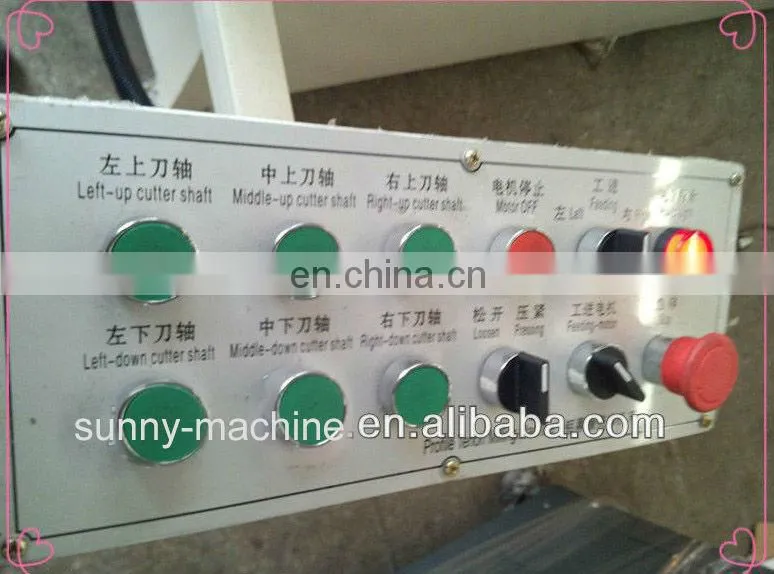

Detail picture:
