Aluminum Four-head Corner Combining Machine,Aluminum Combining Machine,aluminum Machine

Aluminum Four-head Corner Combining Machine,Aluminum Combining Machine,aluminum Machine thumbnail-1
Aluminum Four-head Corner Combining Machine,Aluminum Combining Machine,aluminum Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SUNNY
Place of Origin:
Shandong, China
Model Number:
LJZJ-100*3000
Contact Supplier Request Quote Chat Now
Nanjing Vacuum Bagging Film Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUNNY
Place of Origin Shandong, China
Model Number LJZJ-100*3000

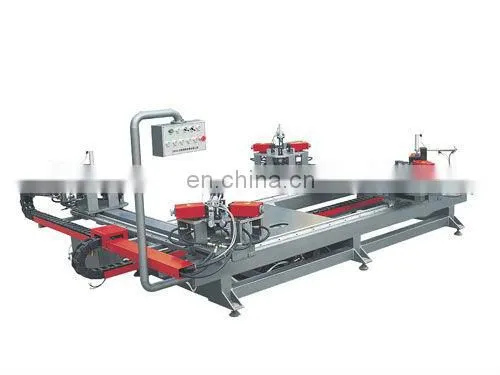

Machine description:LJZJ-100*3000 two head corner crimping machine for aluminum windows and doors

1.Introduction:
Machine Function: Suitable for corner combining of framework and leaf of various aluminum windows, especially heat insulation aluminum window and high grade aluminum alloy door and window. Machine Features: Stable corner combining dues to hydraulic power drive. Left and right punching heads adopt new mechanical linkage device, which realizes completely synchronous corner combining, avoids useless deform and makes the connecting firmly. Less processing error, easier operation and better processing quality. Screw adjusts combining tool s distance, making the tool-setting convenient. Multi-position combining tool is available to process thermal bridge aluminium.


2.Parameters:

Power supply:380V,50Hz

Input power:1.1Kw

Air pressure:0.5-0.8Mpa

Air consumption:2L/min

Rated oil pressure:16Mpa

Oil tank volume:20L

Corner combining cylinder stroke:98mm

Outside dimension:830*1000*1200mm

Weight:380Kg



3.other corner crimping machine we have:

 LZJ-120 Corner crimping machine for aluminum windows and doors

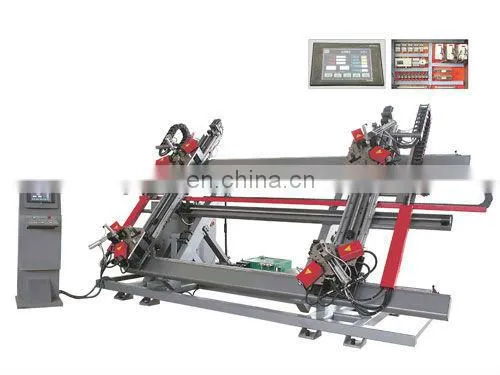

Aluminum Four-head corner combining Machine,Aluminum combining machine,aluminum machine







 Two-head corner crimping machine for aluminum windows and doors

Aluminum Four-head corner combining Machine,Aluminum combining machine,aluminum machine





CNC four-head corner crimping machine for aluminum windows and doors

Aluminum Four-head corner combining Machine,Aluminum combining machine,aluminum machine

3.  Note:

Most Electrics Part are CE or UL Standard

Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.

Package: Each PC in wooden cases.

Port of Loading: Qingdao, China

Delivery Time: During 20 days after we receive your first payment.

Trade Mark:SUNNY
