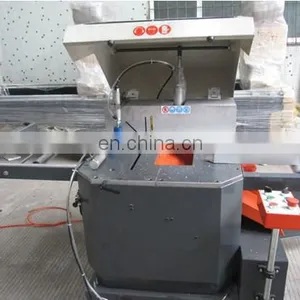

Single Head Aluminum Windows Cutting Machine
US$ 1 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SUNNY
Place of Origin:
Shandong, China
Model Number:
LJZ500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Profile Cutting Saw Machine(cnc Type)US$ 1 - 15,000MOQ: 1 Set -
Aluminum Window Door Corner Crimping MachineUS$ 1 - 2,000MOQ: 1 Set
-
Aluminum Window and Door CNC Four Corner Combining MachineUS$ 1 - 25,000MOQ: 1 Set
-
Single Head Steel Cutting SawUS$ 1 - 2,000MOQ: 1 Set
-
End Milling Machine for UPVC and Aluminum ProfileUS$ 1 - 1,000MOQ: 1 Set
Brand Name
SUNNY
Place of Origin
Shandong, China
Model Number
LJZ500
After-sales Service Provided
Overseas service center available
single head aluminum windows cutting machine
Introduction
1.Special for aluminum and pvc profile cutting at 45~90
2.Carbide saw blade give accurate processing and high endurance
3.To provide bracket with scale ruler for material locating.
Technique Parameter
| Saw cutting (W*H) | 120*200mm |
| Main motor power | 1.5kw |
| Main motor rotation speed | 2840r/min |
| Saw blade dimension | Ø450*Ø30 |
| Saw blade swing angle | 90°-45° |
| Working voltage | 380V 50HZ |
| Over all dimension(L*W*H) | 7000*1300*1500mm |
| Weight | 280kg |
| Repeat locating length | ≤0.05mm |
| Angle cutting tolerance | ±5 |
| Planeness of cutting surface | 0.10mm |
| Cutting profile surface roughness | Ra12.5μm |
Other Related Machines for Aluminum Profiles
CNC Double Head Precision Cutting Saw
Digital Display Double Head Precision Cutting Saw
Lock Hole Groove Processing Machine
End Milling Machine
Single Head Corner Combining Machine
Corner Connector Cutting Saw
