Single Head Aluminum Profile Cutting Saw
US$ 1 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
sunny
Place of Origin:
Shandong, China
Model Number:
yg-06
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Window and Door Making MachineUS$ 1 - 15,000MOQ: 1 Set -
Aluminum Profile End Milling MachineUS$ 1 - 1,200MOQ: 1 Set
-
Cnc Aluminum Window and Door Corner Combining MachineUS$ 1 - 30,000MOQ: 1 Set
-
Aluminium MachineryUS$ 4,000 - 5,000MOQ: 1 Set
-
Machinery for Aluminium FabricationUS$ 1 - 5,000MOQ: 1 Set
Brand Name
sunny
Place of Origin
Shandong, China
Model Number
yg-06
After-sales Service Provided
Engineers available to service machinery overseas
single head aluminum profile cutting saw
Main Features:
1.used for aluminum window and door profile cutting and for curtain wall profile cutting, also for plastic profile cutting
2.Carbide alloy blade
3.with up-feed blade and digital display positioning system
4.The blades can be adjusted within the range of 45~90° freely.
Technical Parameters:
Main motor power |
2.2KW |
Main motor rotation speed |
2840r/min |
Saw cutting(W*H) |
235*150mm |
Saw blade dimension |
Ø500*Ø30*120T |
Saw blade swing angle |
45°~90° |
Working voltage |
380V 50HZ |
Repeat locating length |
≤0.1mm |
Angle cutting tolerance |
±5’ |
Planeness of cutting surface |
≤0.10mm |
Cutting profile surface roughness |
Ra12.5Um |
Size |
1200*1300*1500mm |
Weight |
600KGS |

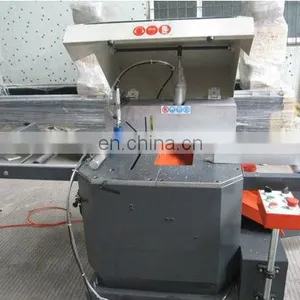

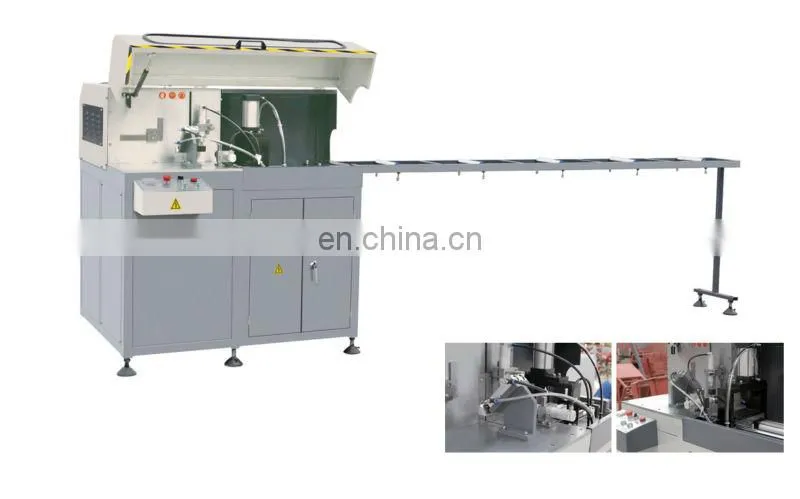

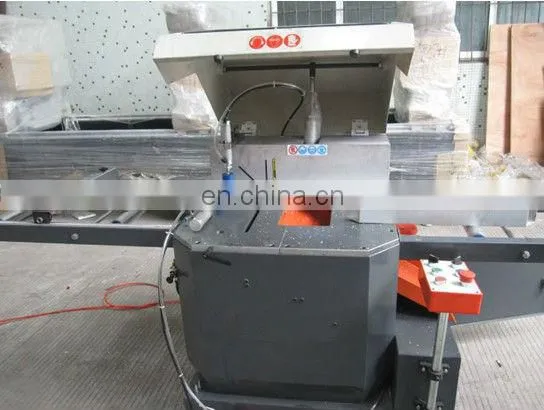

machine pictures:
