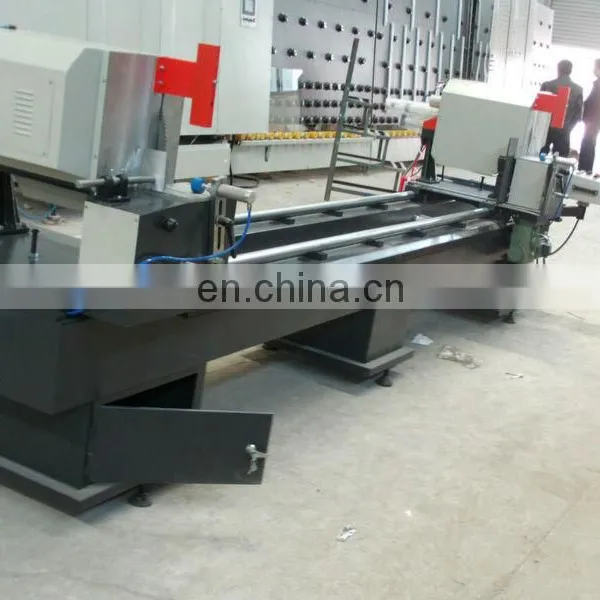

Aluminum cutting saw machine, aluminum windows machine, aluminum profile machine, aluminum double miter cutting saw machine, cnc aluminum machine
1.Function:
Used in aluminum door & window and curtain wall profile cutting. Feature Adopt NC technology, and automatically finish various sizes of profile cutting. Right saw head motion adopts high-lead ball screw motion, with high transmission accuracy, accurate locating, and balanced work. Serial optimized length date can be input at the same time to realize continuous cutting. Midship auto-induction material pulling rack and right-head compliant material pulling rack give convenient and reliable profile location and clamp. Imported digital display system automatically displays cutting length size and quantity; repeated orientation, high precision, easy to operate. High tool motion precision and high quality cutting due to linear motion pair used in machine guide and feeding device. High precision and good stability due to input linear guide motion pair in feeding device. High precision principal axis special for machine tool makes blade operate stably. Uniform speed feeding and smooth motion due to hydraulic damping cylinder. Double saw head automatically realize cutting angle transformation between 22.5°(standby),45°and 90°profiles. Imported carbide saw blade gives high quality of cutting section and high endurance. Self-opening protective cover makes cutting safe and convenient
2.Technical Parameter:
Air pressure: 0.5-0.8MPa
Air consumption: 200L/min
Power: 380V 50HZ
Motor power: 2.2KWx2
Cutting angle: 90 45 65.5 (22.5) (degree)
Saw blade standard: 500x4.4x30xZ120
Cuttting length: 400x4200mm
3. Note:
Most Electrics Part are CE or UL Standard
Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.
Package: Each PC in wooden cases.
Port of Loading: Qingdao, China
Delivery Time: During 20 days after we receive your first payment.
Trade Mark:SUNNY
4.Contact information:
Lisa Jiang
Mobile:0086-13964014791
Skype:jnsunny_jiang
