Vertical glass washing and drying machinery-LBW1600 Vertical Glass Washing and Drying Machine:
1. Features
LB Series Vertical Glass Washing and Drying Machine can be matched with insulating line, it
combined function of two step washing, glass can be dried fast with the design of strong air knives,
washing tank with stainless steel, the soft low-e brush can wash low-e glass, also the machine can be designed according to your special demands.
2. Normally used size we can make
Model |
Max.Glass Size |
Min.Glass Size |
Glass Thickness |
Power |
Weight |
Dimension |
LBW2500 |
2500*3000mm |
300*500mm |
3-12mm |
19Kw |
4500Kg |
8200*1850*3100mm |
LBW2200 |
2200*3000mm |
300*500mm |
3-12mm |
19Kw |
4200Kg |
8200*1850*3000mm |
LBW2000 |
2000*2500mm |
300*500mm |
3-12mm |
15Kw |
3500Kg |
7000*1650*2800mm |
LBW1800 |
1800*2440mm |
300*500mm |
3-12mm |
15Kw |
3000Kg |
6880*1650*2700mm |
LBW1600 |
1600*2000mm |
300*500mm |
3-12mm |
12Kw |
2650Kg |
6200*1650*2500mm |

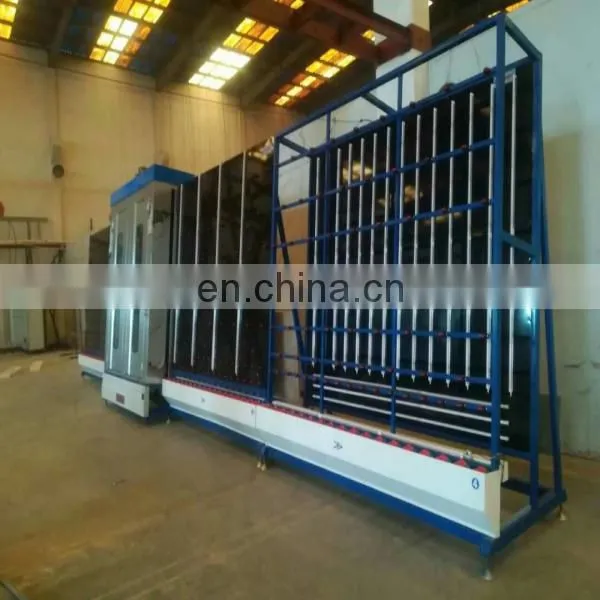

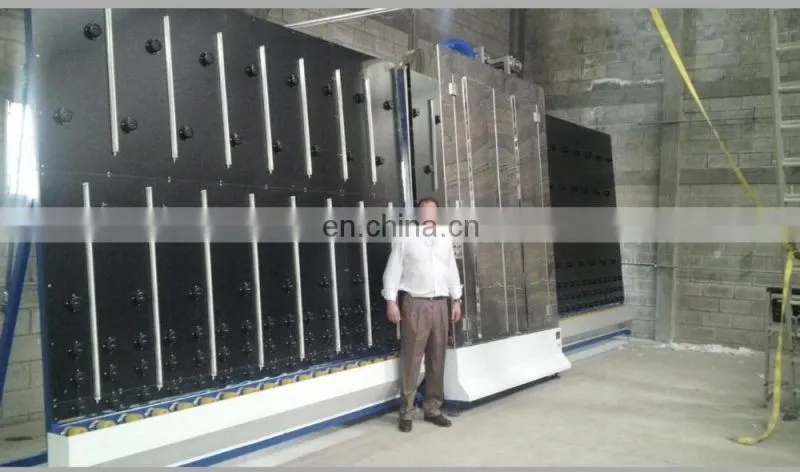

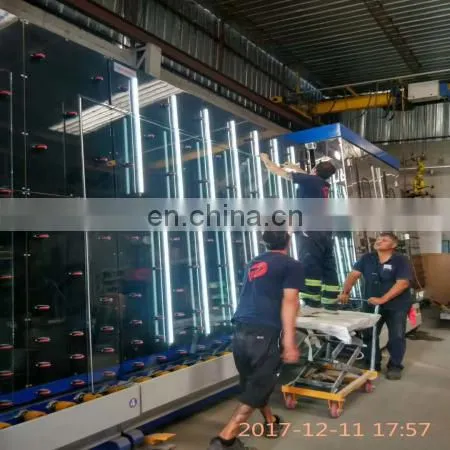

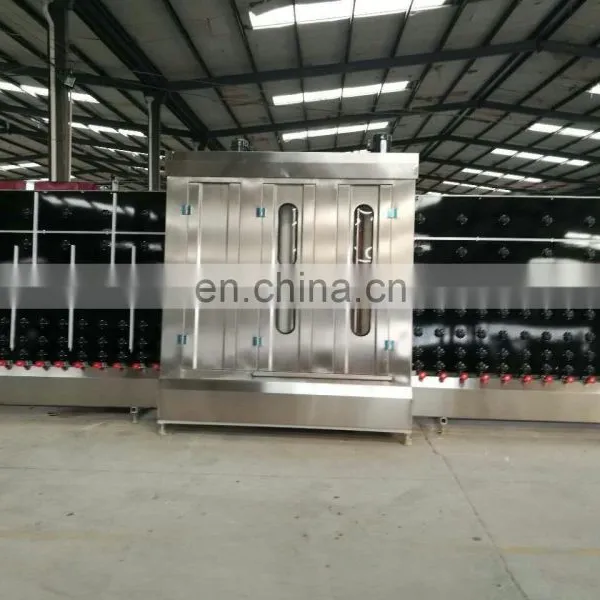

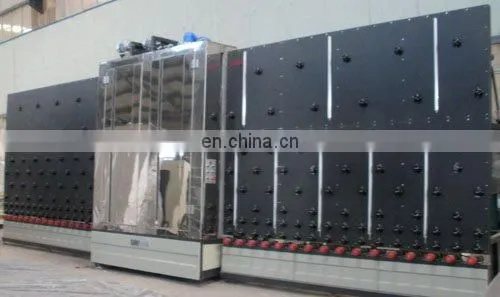

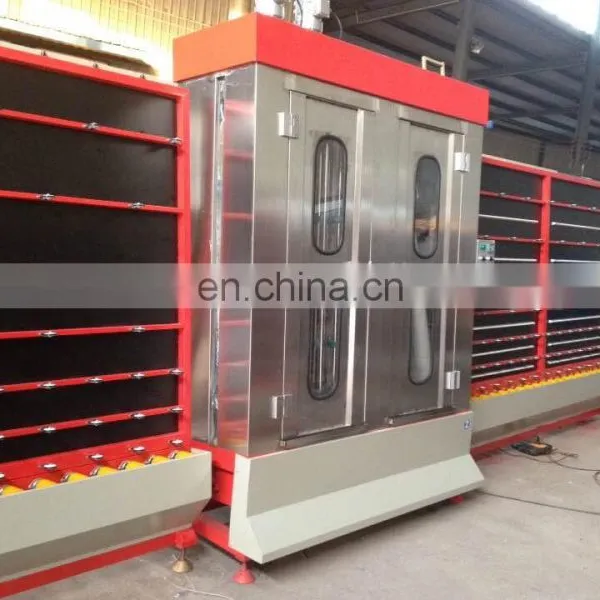

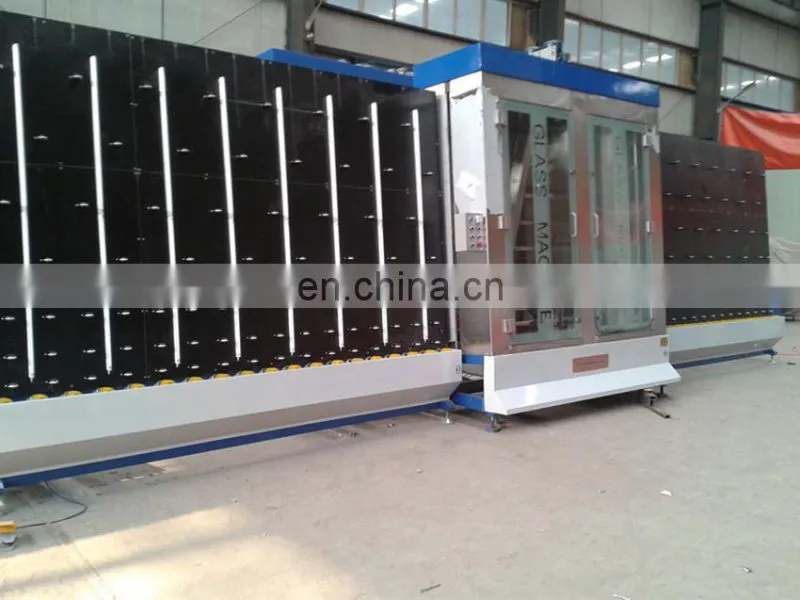

3. Photos
4. Remarks
Pkg: Seaworthy packing or customized
Terms: FOB/CIF/CFR/EXW
From Qingdao, China To_______,
Delivery Time: During 30 Days After We Receive Your First Payment
Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and
The rest 70% is effected while delivering the goods
Trademark: SUNNY
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
