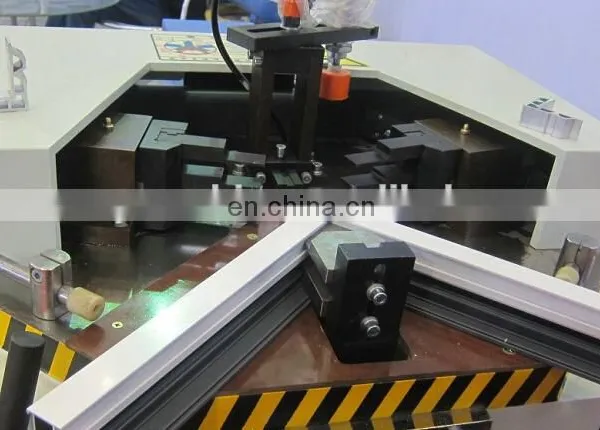

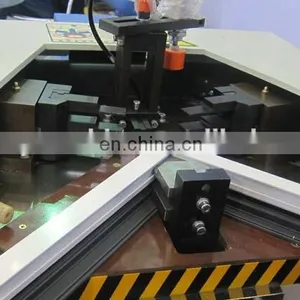

Corner Combing Machine for aluminum Door & Window
Corner Combining Machine is one of the essential equipments for production line of aluminum doors and windows.
Corner Combining Machine is one of the essential equipments for production line of aluminum doors and windows.It is mainly used for 90-degree joint extrusion and connection. Place an corner connector into the cavity between the two profiles before corner combination. The hydraulic driving file make the profile keep its new form permently. This kind of extrusion the joints of two profiles has much higher efficiency and precision than any means of connection.
1. Main Use and Use Scope
LZJ-120 Corner Combining Machine is specialized machine in the process of aluminum windows and doors production, it is used for the welding of 90°angle.
2. Technical Data
Power Supply Three-phase, four-wire, 380V/50Hz
Motor Power 1.5Kw
Motor rotative Velocity 1400r/min
Rated Oil Pump Pressure 16Mpa
Oil Pump Model 2.5MCY
Air Sources Pressure 0.5-0.8Mpa
Air Consumption LMA: 6L/min; LMB: 2L/min
Oil Tank Capacity 20L
Corner Crimping Pressure 48KN
Movement Path 68mm
Adjustment Range 70mm
Profiles Height (Max.) 120mm
3. Composure, Working Principle, Structure and Character
3.1 Composure:
Please refer to attached diagram 1
3.2 Working Principle
Corner Crimping Cylinder 2 push corner crimping slide block 3, the corner crimping slide block move ahead and push the left clinching axis 10 and right clinching axis 18, the connection of 90°angle is finished by corner crimping cutter 11 and 17 on the clinching axis.
3. Structure and Character
LZJ-120 Corner Crimping Machine is developed on the high-tech from abroad. It is controlled by pneumatic, electric and hydraulic system. Because of adopting the wedge mechanism settings, it eliminates oil pressure fluctuation on the corner crimping quality, and makes the corner crimping completely in sync, and the depth of corner crimping more synchronically, the 90°angle is more accurate. Furthermore, the front and back locating can be adjustable either, which is suitable for making profiles with different section cross and sizes. An adjustable timing control setting is helpful for different operators.
refer to attached diagram 1
3.2 Working Principle
Corner Crimping Cylinder 2 push corner crimping slide block 3, the corner crimping slide block move ahead and push the left clinching axis 10 and right clinching axis 18, the connection of 90°angle is finished by corner crimping cutter 11 and 17 on the clinching axis.
3. Structure and Character
LZJ-120 Corner Crimping Machine is developed on the high-tech from abroad. It is controlled by pneumatic, electric and hydraulic system. Because of adopting the wedge mechanism settings, it eliminates oil pressure fluctuation on the corner crimping quality, and makes the corner crimping completely in sync, and the depth of corner crimping more synchronically, the 90°angle is more accurate. Furthermore, the front and back locating can be adjustable either, which is suitable for making profiles with different section cross and sizes. An adjustable timing control setting is helpful for different operators.
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly english manual for machine using and maintaining.
Remarks:
A. Pkg: for long time transportation
B. Terms: Freight On Board (FOB Qingdao)
C. From Qingdao, China
D. Delivery Time: During 15 Days After We Receive Your First Payment.
E. Payment: Telex Transfer (T/T), 30% be Paid as deposit, and the rest 70% is paid before delivery the
machine.
F. Guarantee period: 1 year from the date of customer receiving the machines.
