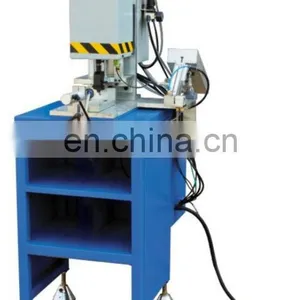

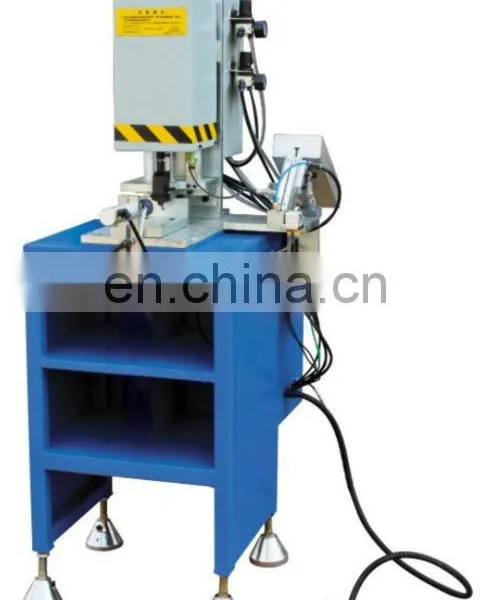

Screw Unit Installing & Feeding Machine
Automatic screw feeding and installing machine/Vinyl window steel screw installing machine
1.Brief description
1).Function: it can finish the fixing and jointing of the profile and the steel liner for the PVC window door production.
2).Features:
1). It can finish the fixing and jointing of the profile and the steel liner, and it no need to drill the holes, and it can install 2-4 pieces screws at one time.
2). Strong torque design strong adaptability
3). Automatically installing screw device, easy to operate
4). The distance of the screws can be adjusted according to the needs
5). High efficiency, it can save more workers, and save cost
2. Technical Parameter:
Power supply:220v 60hz 3p
Power rate:0.25kw
Height: 100mm
Profile depth: 32mm
Screw diameter: 3.5~4.5mm(diameter), 13-26mm (length)
Screwdriver diameter:6.35X110mm
Error rate: 2-5%
Locating distance: 100mm
Screw distance: 250-380mm
Steel Reinforcement thickness:1-2mm
Overall dimension:700X650X1700mm
Weight: 150kgs
JInan Sunny Machinery Co.,Ltd.
contact person: Ms Awen
mob: 0086-15063343341
PLS CONTACT WITH ME FOR MORE DETAILS !
