PVC Window Seamless Welding Machine/ PVC Window Machine/ Plastic UPVC Window Machine
1. Description
1). Seamless welding&cleaning (seamless) welding machine for Vinyl/PVC/UPVC/Plastic window door can clear welding beading at one time after finishing the welding, and can strictly control the size of welding seam; Therefore, after welding of colorful section steel is finished, its surface welding creater looks perfect and top-grade, and its welding strength is higher than that of the original ones
2). Through controlling pneumatic system, SWFHJ-3500.1/1B eaning(seamless) welding machine for PVC/Plastic window increases processing mode of strengthening the welding strength, especially software processing in melting-welding clearance and welding process, thus it can guarantee optimal welding strength in various environments; It can also conduct quantitative adjustment according to digital parameters
3). The cutter features good exchangeable.
The cutter of the SWFHJ-3500.1/1B welding seamless machine adopts special material, via special heat-treatment processing technics and finish accuracy. The cutter is standardization completely, to achieve exchangeable, without professional the cutter can change without professional
4). Integrative window-support welding
This machine for PVC window uses eight cutting tools to weld and clear corners and seams, and it can also conduct low-seam clearing for window-support and crossed window-support; Various window-support have perfect welding surface and high welding strength.
2. Features
1). One-time clean-up the welding tumor completed upon completion.
2). Can control the welding gap size strictly.
3). Therefore, color window profiles of welding is completed, the surface of the weld is very beautiful, upscale, weld strength higher than the strong point of the original profile
4). Can weld various shape profiles, like joint-mitre, cross muntin and so on.
3.Model SWFHJ-3500.1/1B
|
Model number |
SWFHJ-3500.1/1B |
|
Power supply |
220V 50Hz |
|
Air consumption |
18 0L/min |
|
Input power |
1.5kw |
|
Welding length |
4 2 0~ 35 00mm |
|
Welding profile height |
10~100mm |
|
Welding profile width |
≤ 120mm |
|
Welding mullion width |
≤ 110mm |
|
Operation air pressure |
0.6 ~ 0.8 Mpa |
|
Humidity |
≤ 80%(no dew) |
|
Contour dimension(L*W*H) |
800*1200*1800mm |
|
Temperature |
-5~+40 |
|
Machine weight |
36 0 kg |
|
Welding methods |
Weld window frame Weld window-support Weld profile materials of different heights |

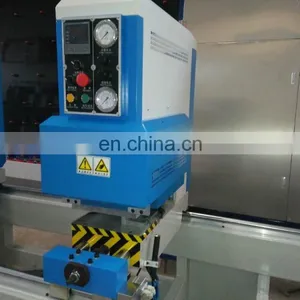

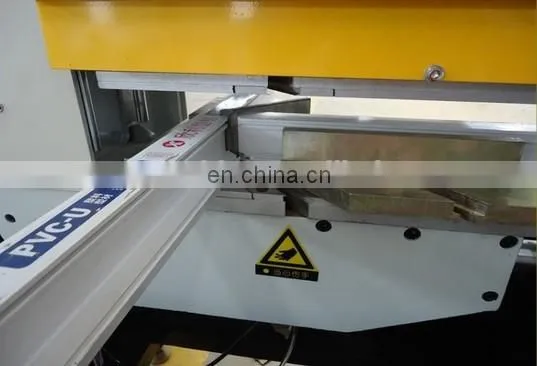

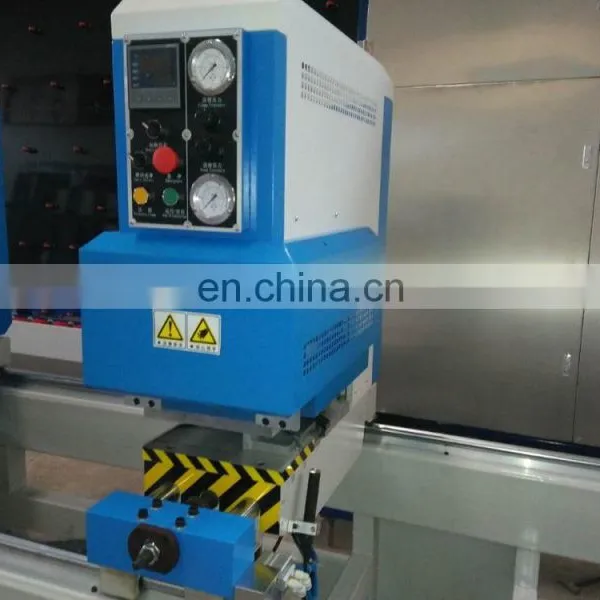

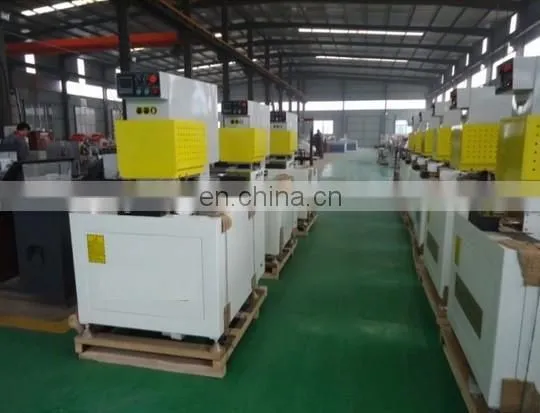

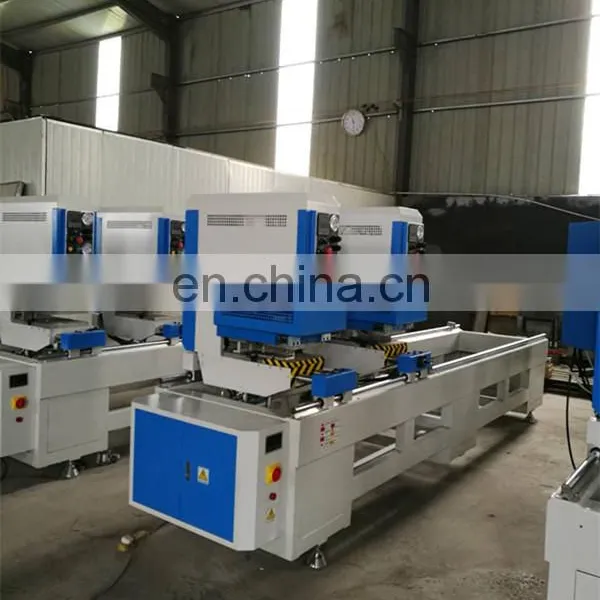

4. Photos for Seamless Welding Machine for colorful pvc profile
