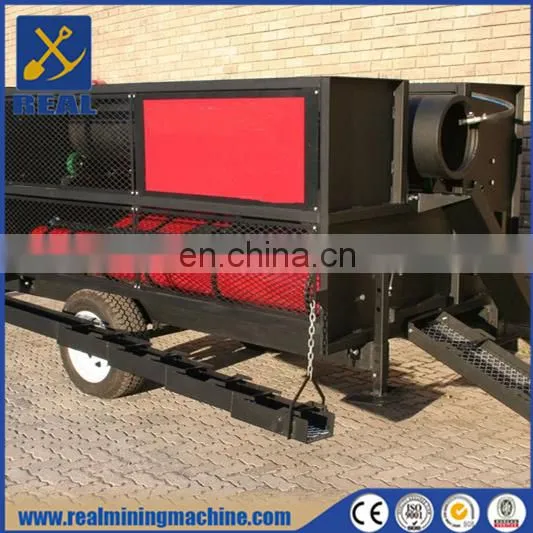

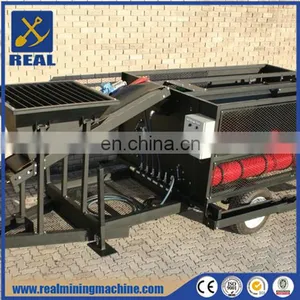

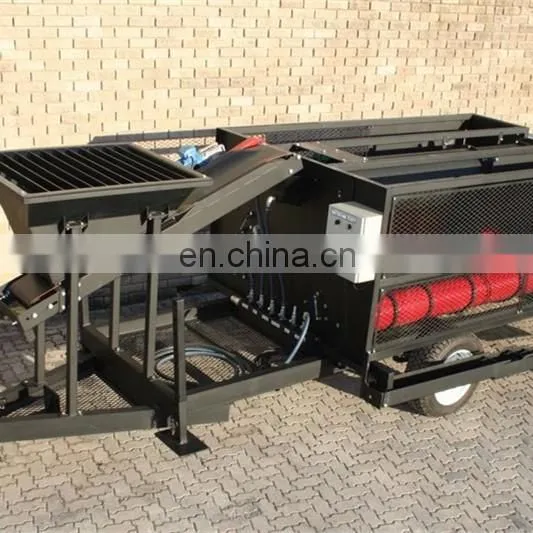

Mobile High Efficient Compact Gold Wash Plant
1.Features:
1. Compact,mobile concentrator, easy to move and operate;
2. This machine is the most advanced and efficient small scale mining equipment ;
3. great recovery rate down to ultra-fine particles ;
4. Can do continuous process, advanced spiral system, increase gold recovery rate, reduce operator;
5. Portable, simple structure, easy operation, low operating cost.
Capacity:
Capacity of HPC machines is defined according to the rate at which they will consume / process a stockpile of raw feed material (“Run of Mine” or “Bank-run” material). This is material typical of Placer deposits which contain large and small rocks, gravel, stones and sandy material. Processing capacity is limited primarily by the fraction of undersize material screened from this raw feed and fed onto the HPC’s Concentrator Belt. Accordingly, should you feed the HPC machine with material which is already undersize (or the deposit you are processing consists mostly of fine/sandy material), all of this material will pass directly to the concentrator belt and the effective operating capacity of the machine will be based on this.
Please refer to the attached Production Capacity Tables and Material Flow Diagrams for capacity information corresponding to the material to be processed.
Integrated Feed Conveyor & Feed Material

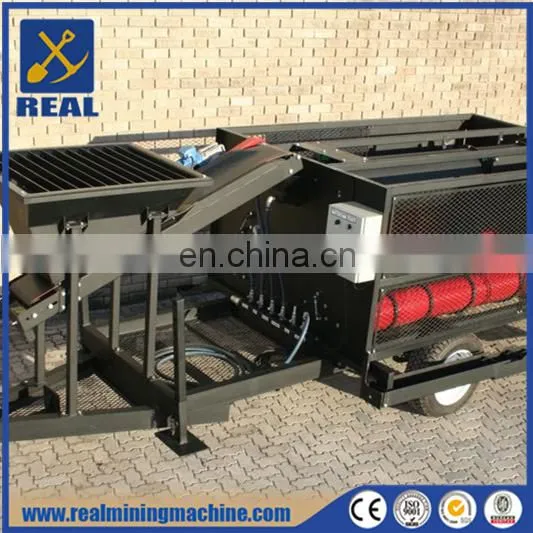

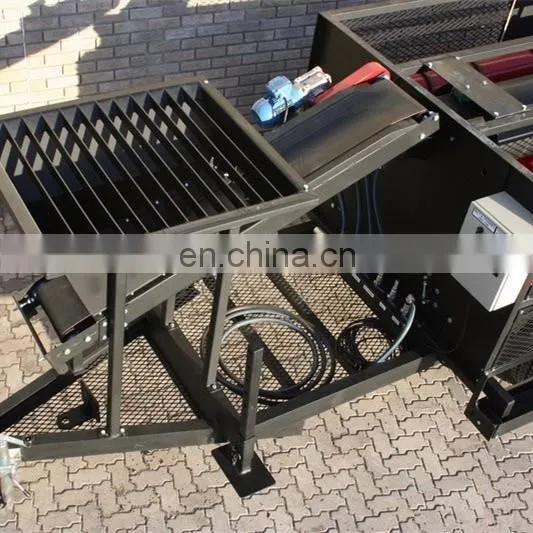

• Hopper capacity is 0.2m3 (7 cubic feet) and is fitted with a detachable, horizontal Grizzly to remove +75mm (+3'') material.
• Feed Rate is fully controllable by a combination of Variable Speed Drive to adjust conveyor speed and bolt-on choke plate to allow for complete flexibility of material sizing.
• Hopper can be fed manually or using a mini-excavator.
Drive system
• Concentrator Belt and Trommel drive system: 1.5kW (2.0 HP) 3-phase Drive Motor with Reduction Gearbox.
• Integrated Feed Conveyor drive system: 0.4kW (0.5 HP) 3-phase Drive Motor with Reduction Gearbox.
• Each motor is controlled by a Digital Variable Frequency Controller housed within a waterproof enclosure. Note: Single-phase power supplied to the HPC-15 is supplied directly to the Variable Frequency Controllers which convert the power to 3-phase power required by the Drive Motors. The first Variable Frequency Controllers can be adjusted to set the speed of the Concentrator Belt and Scrubbing / Screening Trommel and the second Controller and be adjusted to set the Feed Rate of the Feed Conveyor.
Electrical Supply Requirements:
Electrical Supply must be Single Phase380V and 60Hz / 50Hz.
The motors on the HPC-15 have a combined rating of 1.9kW. When considering startup 1 “inrush” current, we recommend a minimum of 5VA or 6kW Generator (excludes power required for electrical water pump). HPC-15 is supplied with Electrical Supply cable. Note: Electrical Generator is not supplied with the HPC-15.
Water supply requirements:
The HPC-15 requires water supply of approximately 40 gallons/minute (160 liters/minute) at a pressure of approximately 45psi (310 kPa). Any electrical, petrol or diesel powered pump capable of providing this water flow may be used. The Water Supply must be connected via a 2” hose (“lay-flat” or discharge hose) clamped onto the inlet nipple on the Water Manifold. Note: Water Pump and connection hose are not supplied with the HPC-15.
Feed material:
Maximum: 6” (150 mm) minus material. Recommended: 3” (75mm) minus.

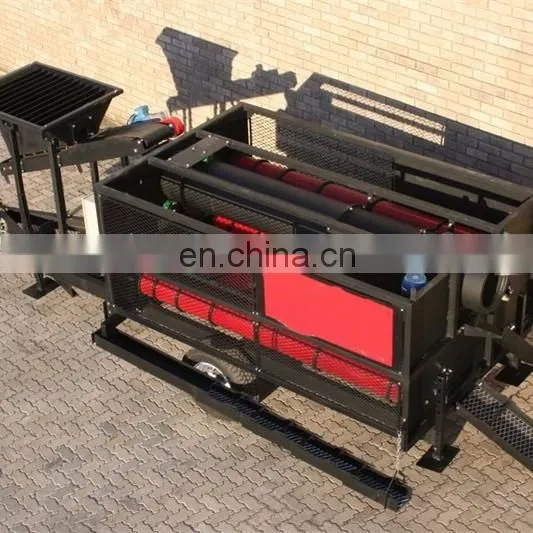

Trommel
Scrubbing & Screening Trommel is 2.8m long with 0.4m diameter and 1.65 m 2-stage Scrubber. Screen is 8mm.
Dimensions:
Length 5.63m, Width 1.76m, Height 1.80m, Weight: 1,700 kg
Shipping info:
Optimal shipping configuration: 1 X HPC-15 in 20’ container. International customs code: HS #: 8474.10.00 (1) Sorting, screening, separating or washing machines
Trailer:
Single-axle trailer with Pintle-hitch (40mm /1.6’’ ID) - Ball Hitch available - to be specified on order.
Manning:
1 equipment operator required.
Note: for safety reasons, it is always best to have at least 2 people present when operating machinery.
Simple Packaging gold wash plant& Trommel screen .
Packaging the trommel screen spare parts like screen siece by wooden boxes protect damage and loss during transportation ;
Delivery machine by 20-foot & 40-foot container according to trommel gold wash plant total size ;
Be responsible contact with shipping agent arrange machine shipping ,client can also contact shipping agent by himself to delivery our gold wash plant ;
Qingzhou Real Mining Equipment Science Technology Co.,Ltd.--The professional manufacturer and accessories of Gold Mining Machine in China,and have more than 20 years experience.
Our main products include:
1.Full set gold mining machinery
-->Gold washing machine
1)Vibrating screen2)Trommel3)Clay scrubber4)Dry gold washer
-->Gold recovery machine
1)Gold concentrator2)Sluice box3)Shaking table
4)Amalgamator&furnace
2.Mini gold mining dredge(jet suction type in water)
3.Mobile gold machine 1)Drum type2)Shaking type3)Belt type
4.Magnetic separator
5.Small exploration & gold separating machine
6.Gold pan
We always stick to the business principles :Customers first,Credit first,Service first.
We warmly welcome all clients both at home and abroad to visit us and cooperate with each other on the mutual benefits.
If there have any needs,pls feel free to contact us.
