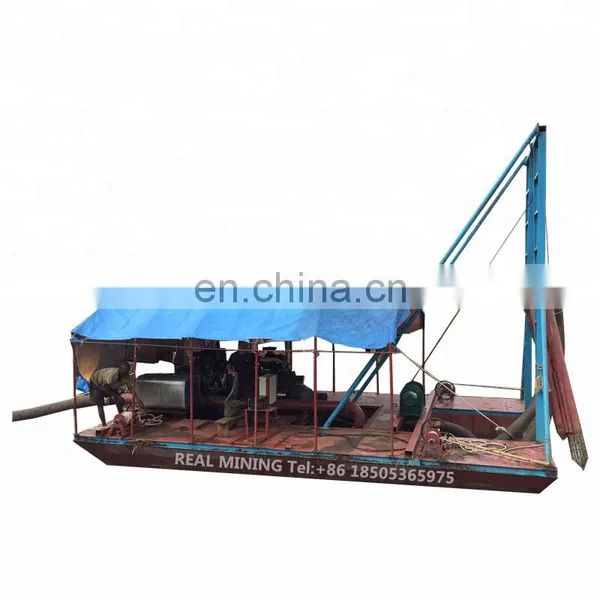

Flushing And Suction Type Sand Dredger
REAL -CS200 Model sand suction equipment mainly used for sand filed(proportion of stone no more than 30%),river course and desilting working environment. Easy to operate, long discharging distance, less energy consumption, heavy workload, It is a common sand dredging and desilting equipment recent years.

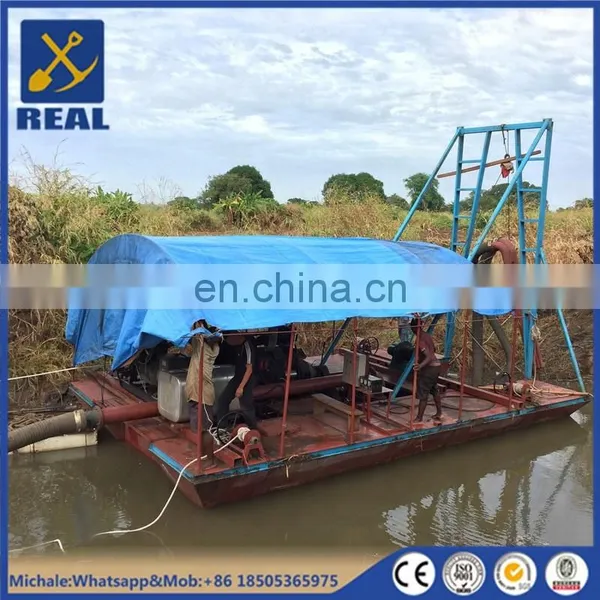

It powered by a diesel engine and a generating set, the equipment complex include sand suction system, flushing system, hoisting machine, the GPS and sunshade tent etc.

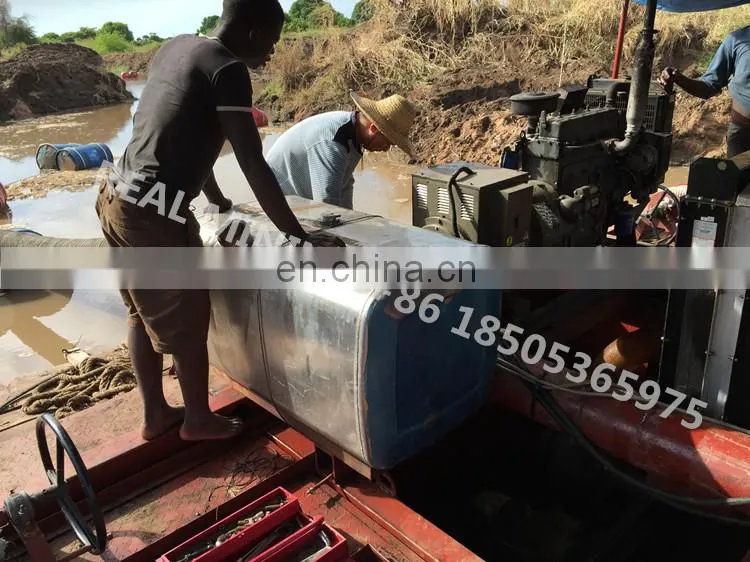

Diesel engine, sand pump, generating set these core components are manufactured by well-known domestic manufacturers, wear well and less wearing parts.
Main Dimension | |
Overall Dimension |
11.5m*5m*1.5m |
Main Engine Room Size |
6m*2.2m*1.5m |

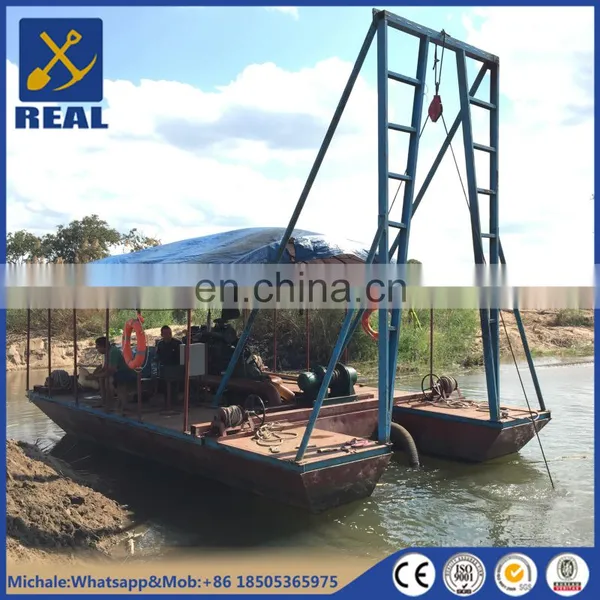

Lifting Platform Height |
9m |
Side Float Body |
11.5m*1.2m*1.5m |
Sand Suction Taps Length |
3m,6m Each One |
Equipment Materials | |
Floating Body Plate |
Bottom 5mm,Side 4mm, Surface 3mm |
Main Engine Room Plate |
Bottom 8mm,Side 6mm |
Sand Suction Taps |
Φ200mm Seamless Pipe |
Water Pressure Pipe |
Φ150mm Seamless Pipe |
Equipment Configuration | |
Sand Pump Model |
Shijiazhuang Wear-resistant Alloy 8/6D-G Pump |
|
Sand Pump Clean Water Flux
|
500m³/h |
Sand Pump Rotate Speed |
950r/min |
Sand Pump Inlet&Outlet |
200mm/150mm |
Sand Suction Pipe Inlet/Outlet |
200mm/200mm |

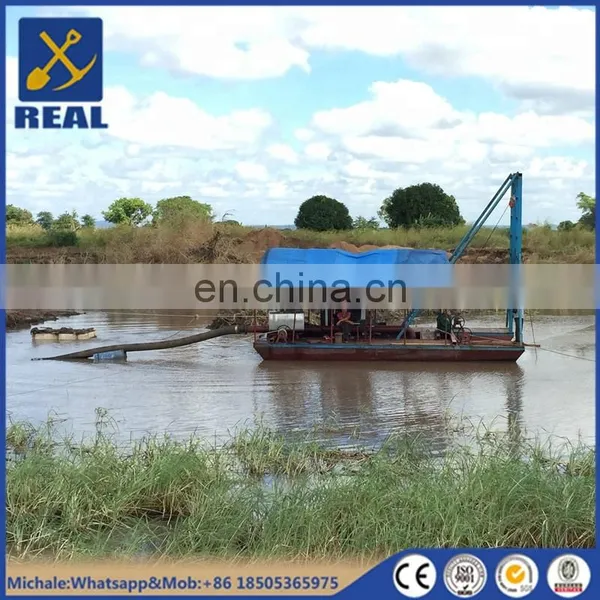

In Congo:
Packing: Container
Shipping: Within 30 days depend on actual configuration.
7X24 Hours service, if there have any needs, please feel free to contact me, thank you!
