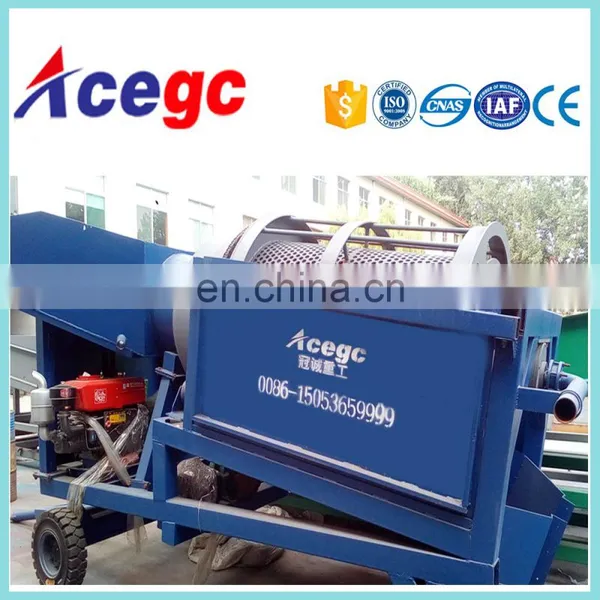

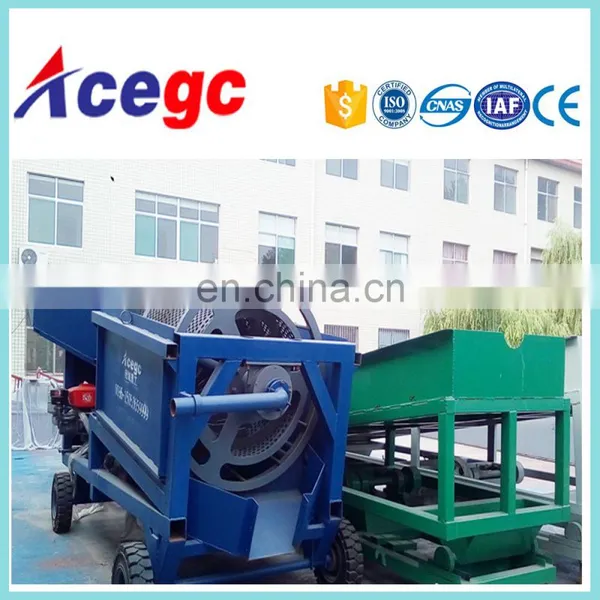

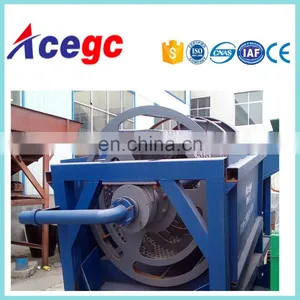

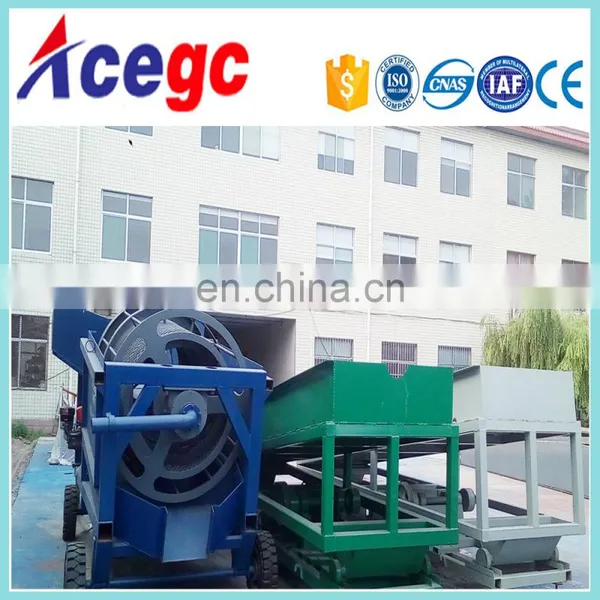

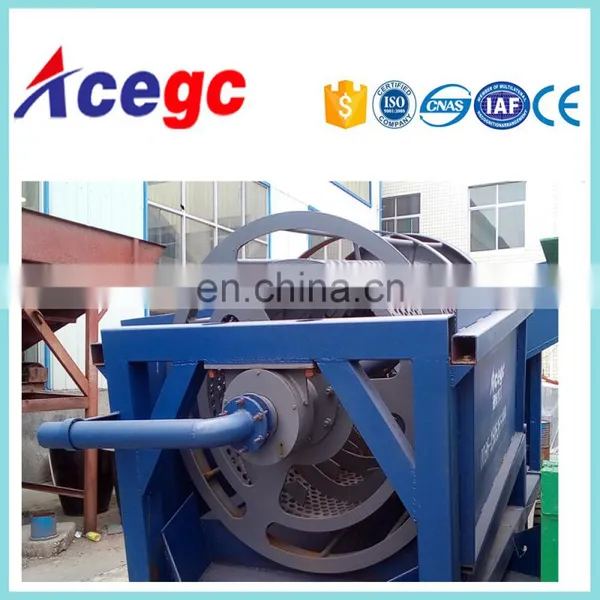

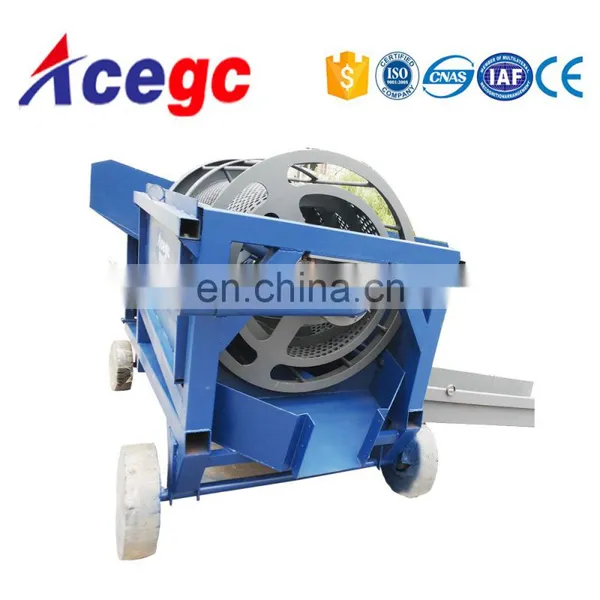

Alluvial placer gold mining equipment trommel screen gold separating car
Alluvial placer gold mining equipment trommel screen gold separating carwith reamer is widely used in alluvial gold mine with clay ore,the reamers to cut clay ore a good performance. We use this gold trommel to separate the gold sand to different size, then different size material go to the next step of concentration,gold jigging machine, gold centrifugal, gold sluice box, shaking table are used after separating from gold trommel screen. This gold trommel is very popular in Africa and south America, it can be mobile, suitable for small, middle, and large scale alluvial mining plant.,also good performance as important unit in dredger,movable gold separting car,mineral processing line etc.
Advantage and feature
1. Cost-effective and high-efficiency screening solutions.
2. Screens with different size hole are available
3. Multiple layers of screen is available which is east to replace
4. Large capacity
5. Unique screen design makes it not easy to be blocked and extend the working life
6. Heavy duty feeding hopper is available.
7. Gear wheel driving
1st floor of trommel screen

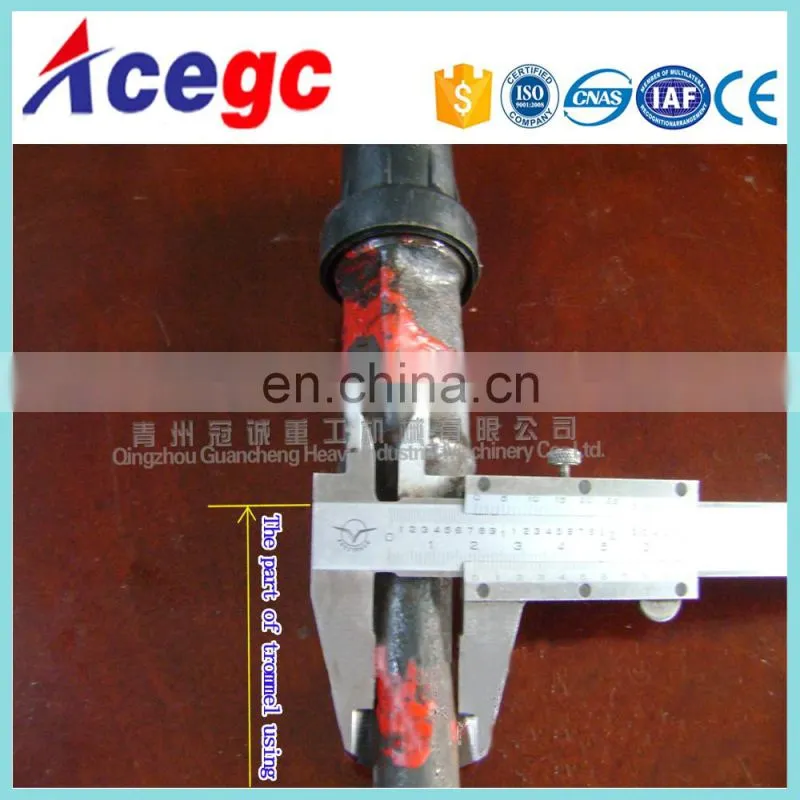

Normally we use rod part of sucker rod which is well used in oil field,high tensile strength,elastic and high temperature resistance.

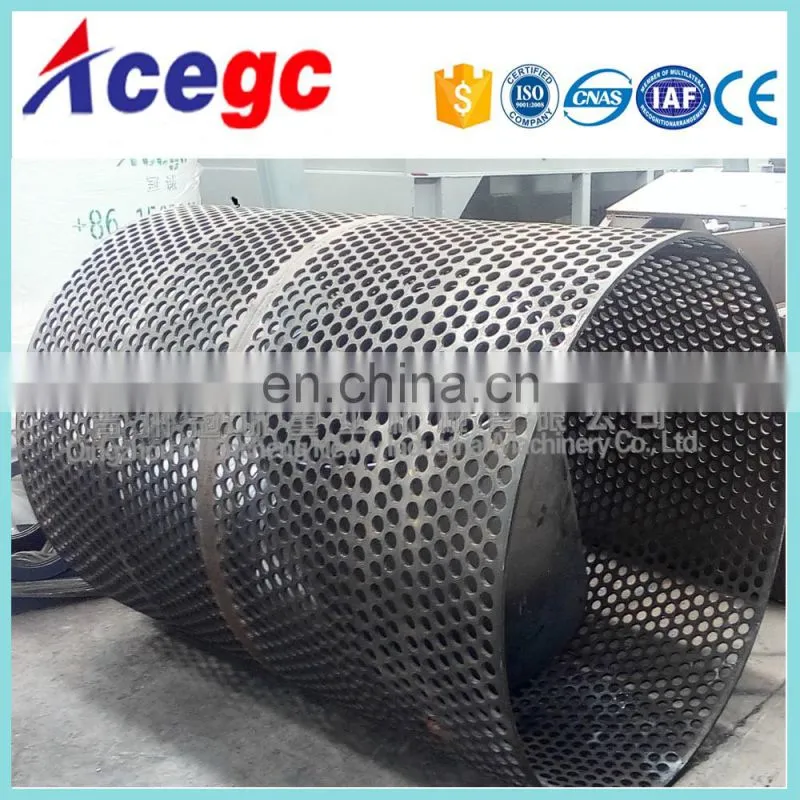

2nd floor

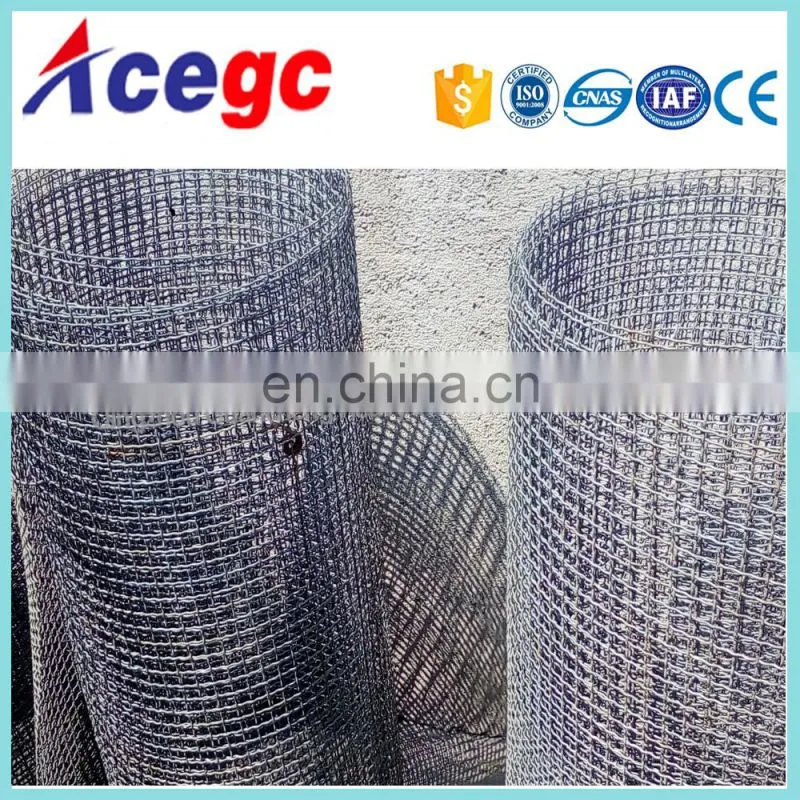

Normally we use steel or stainless steel screen mesh .
Manufacturing

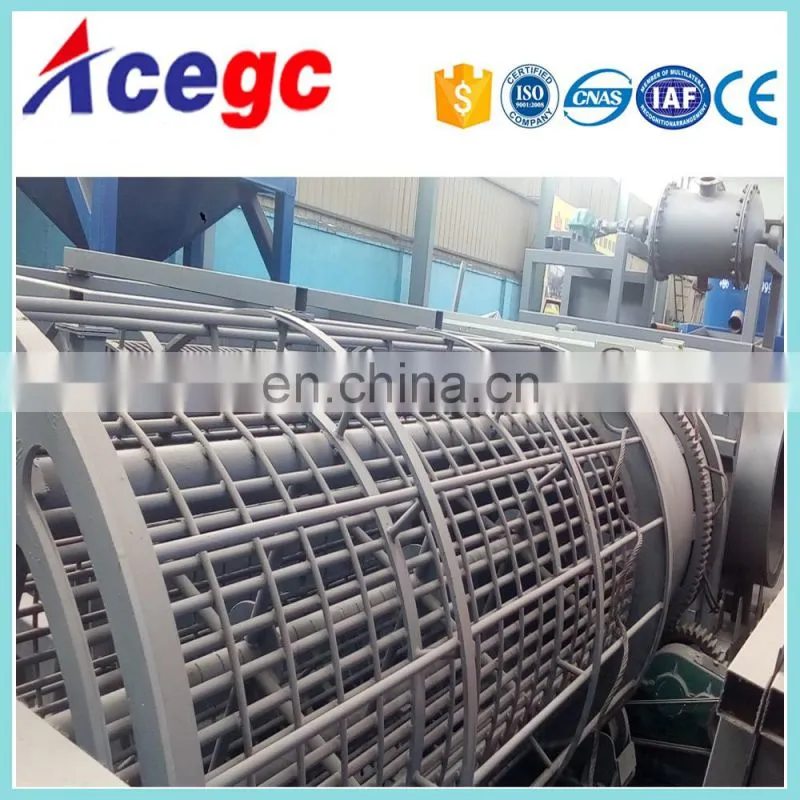

It's manufacturing picure in workshop.
The technology process

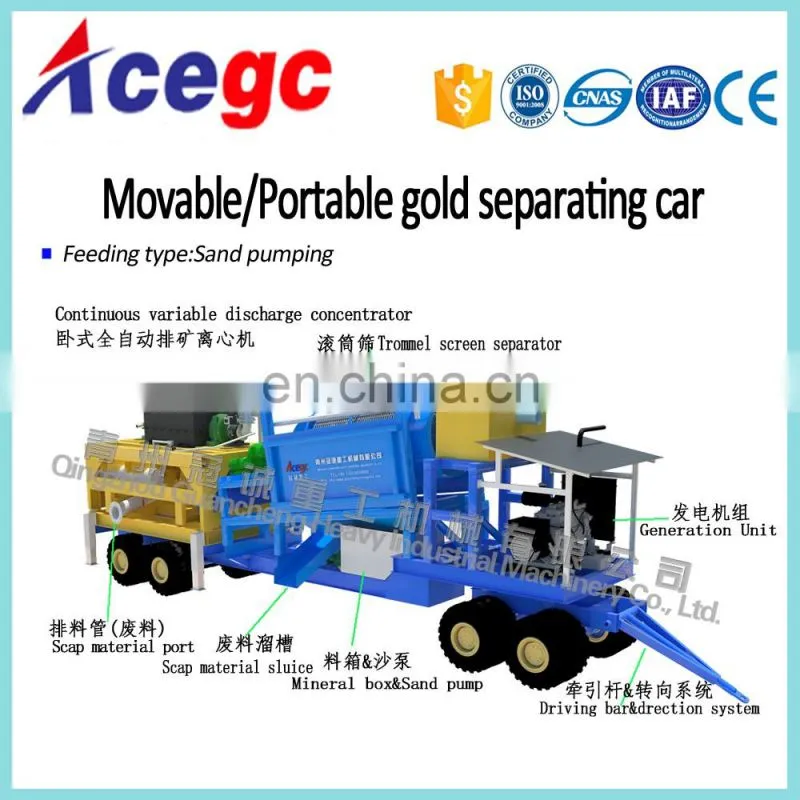

The raw material is poured into input speed reducing box by sand pump to reduce pressure and feeding speed,then enters into the trommel screen separator to be separating into 2sizes,small and big size which is useless directly geting rid by scrap sluice.
The samll size material is discharged into horizontal automatic discharging centrifuge controlled by PLC through sand pump, and the concentrate automatically discharged from concentrate discharge port, scrap material is discharged into the waste area from the scrap material pipe.

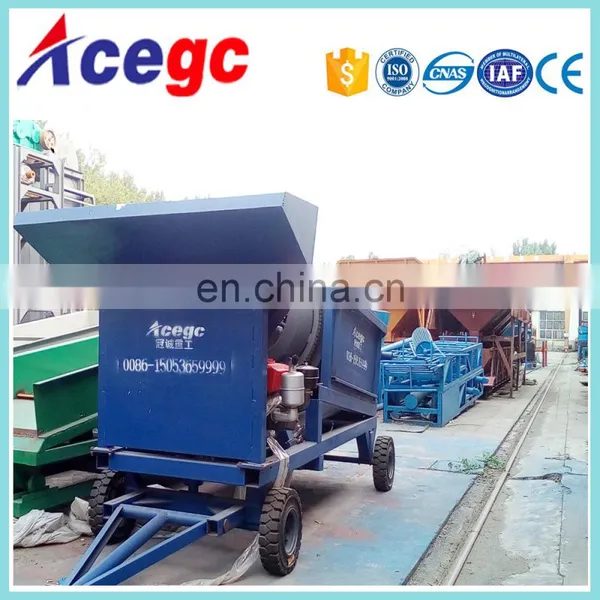

Details parameter of100-150ton/hour movable/portable gold separating car
