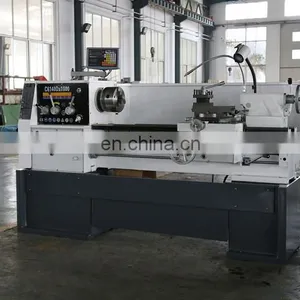

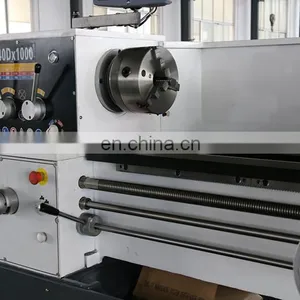

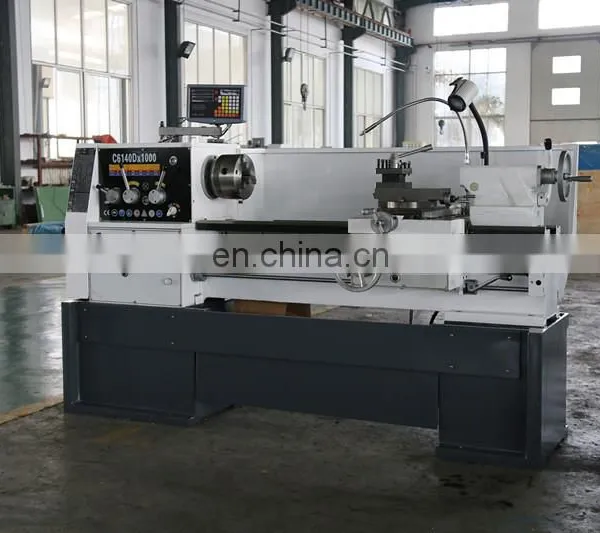

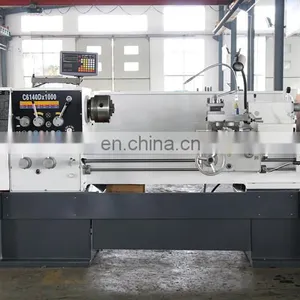

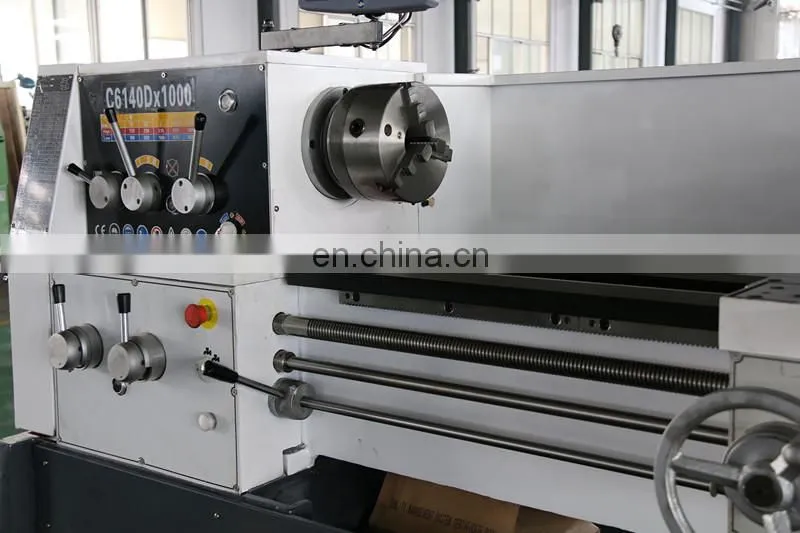

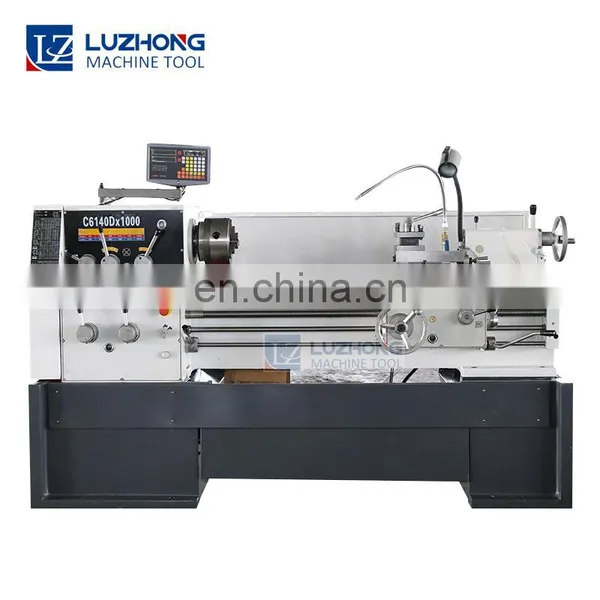

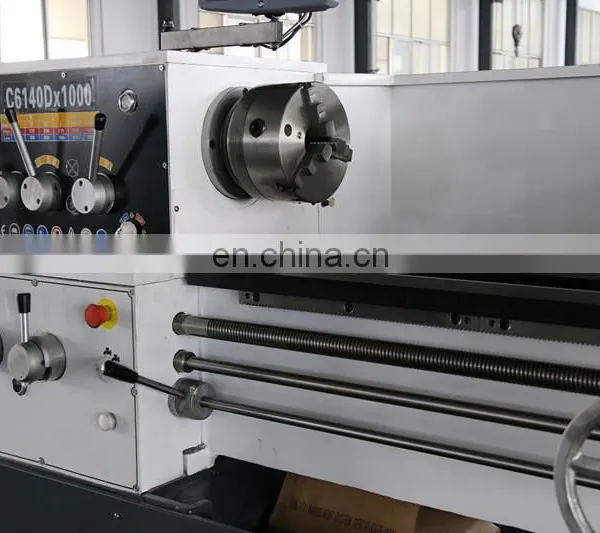

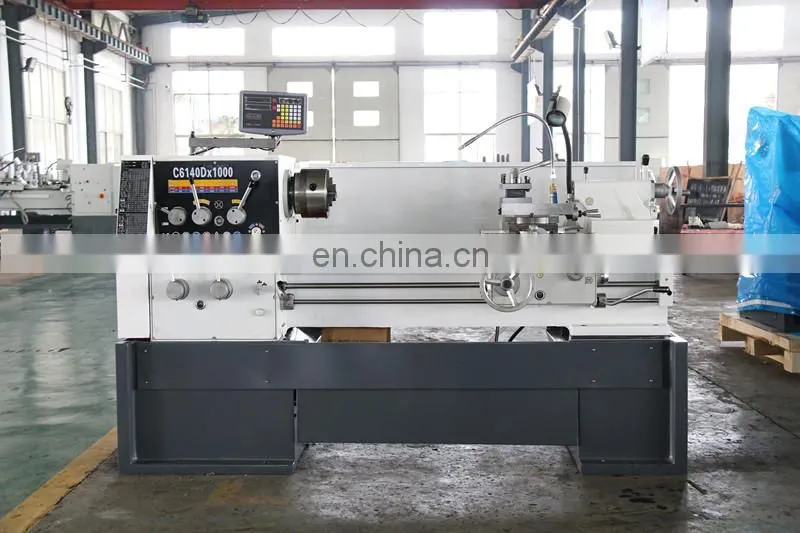

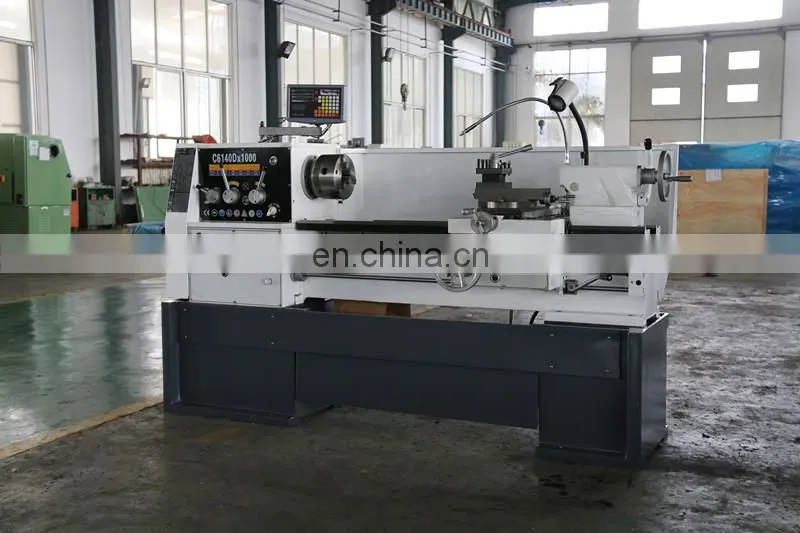

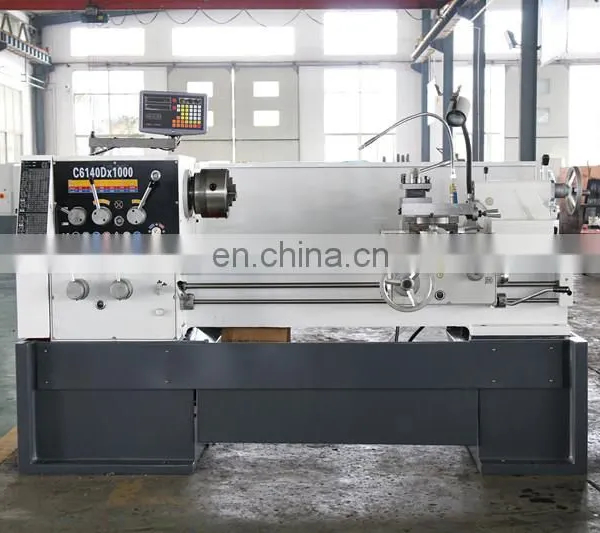

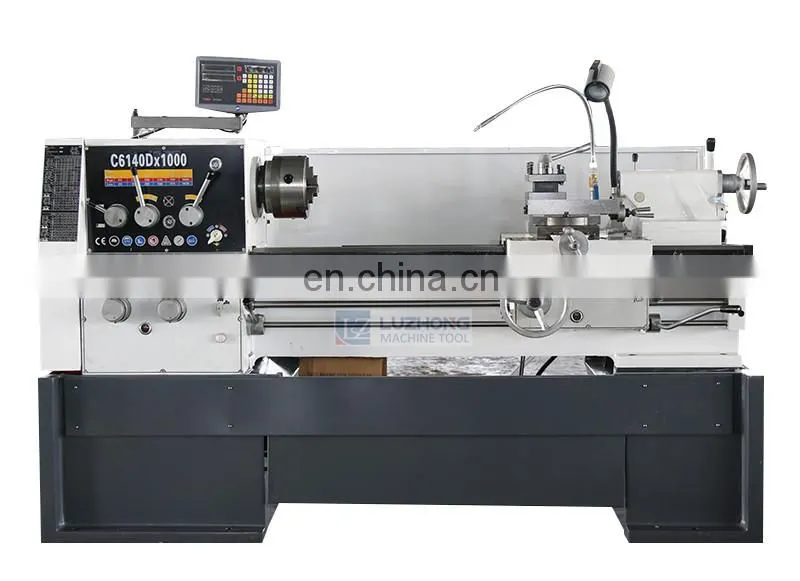

China Cheap Metal C6136D C6140D Horizontal Lathe Machine Price
Product description:
C series universal lathe is suitable for internal and external turning ,tapering ,and other rotating faces ,metric ,module and inch threads ,as well as drilling and pull oil slot ,widely used in axisal and plates processing .
The lathe bed is wider than normal machine ,owns high rigidity ,guideway after high frequency quenching ,with high durability.
Easy operated ,one handle to operate quite convenient .
Own high rigidity in both structure and transfer parts ,high percent the use of power make the machine cutting easily .Lots of optional accessories for you to choose .
Whole side test before leave the factory ,make sure the machine owns high stability and more reliable .
Product main technical Specifications:
Specifications |
C6132D |
C6136D |
C6140D |
||
capacity |
Max.Swing over bed |
320mm |
360mm |
400mm |
|
|
Max.swing over carriage |
180mm |
200mm |
240mm |
|
Max.length of workpiece |
750/1000mm |
||||
Width of bed |
312mm |
||||
Section of turning tool |
20x20mm |
||||
Spindle |
Spindle speeds |
30-1600r/min(12 steps) |
|||
Spindle hole |
Ø52mm |
||||
Spindle nose |
C6 |
||||
Spindle taper |
MT6 |
||||
Feed |
NO. of feed |
Longitudinal(0.039-1.05mm),cross(0.019-0.52mm) |
|||
Range of metric threads |
0.5-20mm(25 kinds) |
||||
Range of inch threads |
80-1.75TPI(35 kinds) |
||||
Range of module threads |
0.25-10mm |
||||
Range of diametral threads |
160-3.5DP(30 kinds) |
||||
Tailstock |
Max.tailstock spindle travel |
100mm |
|||
Tailstock spindle diameter |
Ø60mm |
||||
Taper of tailstock |
MT4 |
||||
Main motor |
3/4kw |
||||
Packing dimensions |
Overall dimension for 750mm |
2000x1130x1540 |
|||
Overall dimension for 1000mm |
2250x1130x1540 |
||||
Weight |
Overall dimension for 750mm |
1400kg |
1500kg |
1700kg |
|
Overall dimension for 1000mm |
1500kg |
1600kg |
1800kg |
||

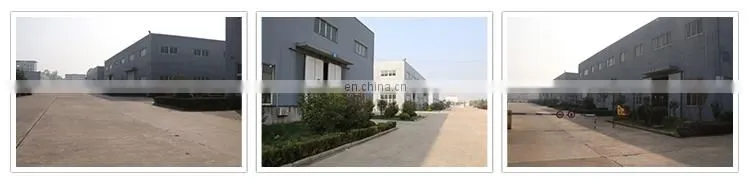

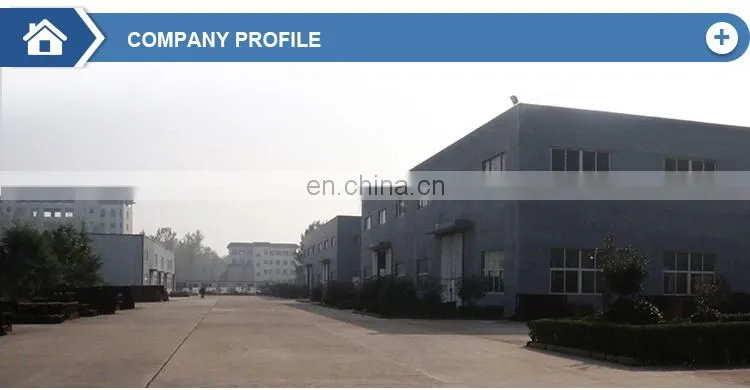

Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
