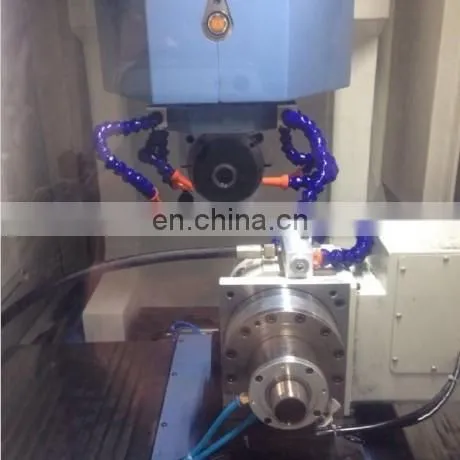

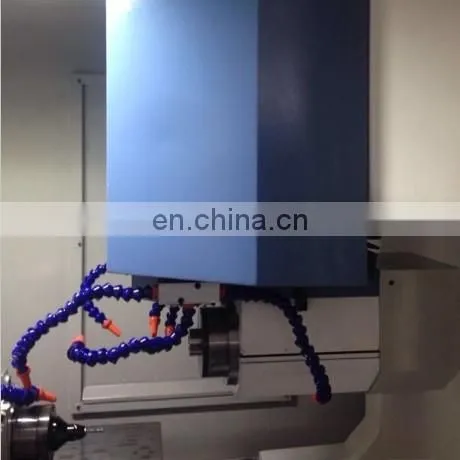

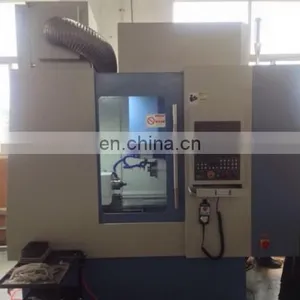

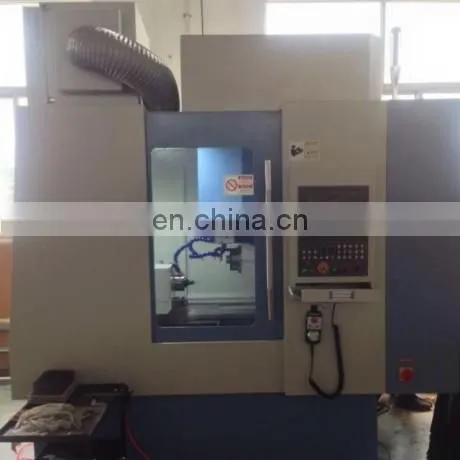

VIK-5B cnc tool grinding machines with 5 axis for milling tool
Features:

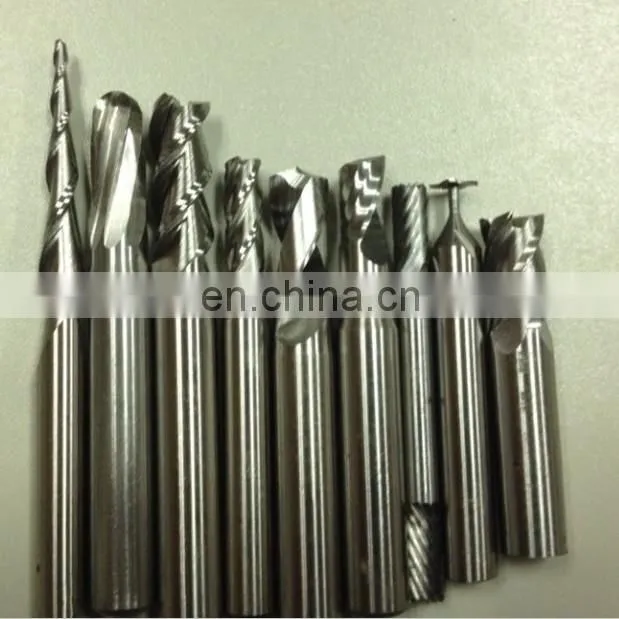

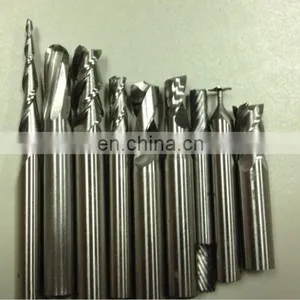

VIK-5B 5 axis CNC tool grinding machine can manufacturing and grinding end mill, ball-cutter, step drills, reamers, Gun drilling, toothed knives, files, medical tools, CNC blades, woodworking tools and more.
Technical parameters:
Linear axis travel |
X:340/Y:290/Z:220 |
Linear axis fast moving speed |
15m/min |
Linear axis resolution |
0.001mm |
A-axis travel / speed |
360°/30rpm |
C-axis travel / speed |
215°/16rpm |
Rotary axis resolution |
0.001° |
A axis Pneumatic clamping range |
Collet 0.3-28mm(optional) |
Max workpiece diameter |
345mm |
Max workpiece length |
500mm |
Max grinding wheel diameter |
170mm |
Grinding electricity Spindle power |
12.5KW(20KW) |
Grinding electricity Spindle speed |
9000rpm |
Total power |
30kw |
Machine size |
2255*1650*2400mm |
Total equipment weight |
6T |
Technical Features:
Using the most advanced 5 Axis CNC Software in the industry, flexible and strong,according to customer special requirements, Specialized tool grinding software package can be configured.automatic loading and unloading systems, powerful big. This tool grinding software with 2D and 3D presentation capabilities, can store hundreds of tool parameter model, user-friendly multi-species production.
1. Using tool manufacturing dedicated CNC system,five-axis linkage control.
2. Transmission system uses all the imported servo motor, screw, linear guide and bearings.
3. Grinding rotary C-axis imported anti-backlash Turbine worm, to ensure high precision and high stability.
4. The bilateral head system was used to detect the parametersonline,And tool manufacturing and grinding of the outer diameter, helix angle and other parameters of automatic measurement.
5. Equipped with modular cooling, lubrication and mist collection device.
6. Grinding spindle with independent oil cooler.

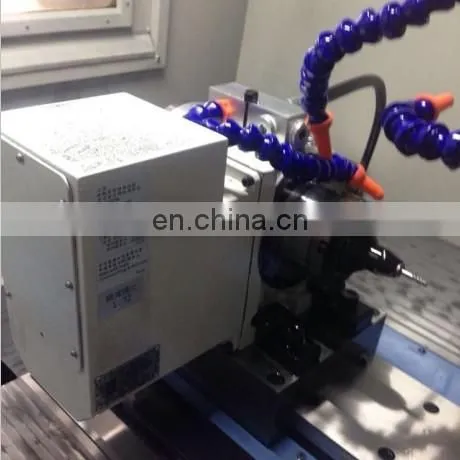

7. Equipped with movable indexing head, pneumatic clamping, use of special tooling, you can grind longer class tool
8. The use of multi-piece combination of grinding wheel installation, complete processing of the workpiece one time, without frequent replacement wheel sets.
9. Configurable automatic loading and unloading device.
standard exported wooden case
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
