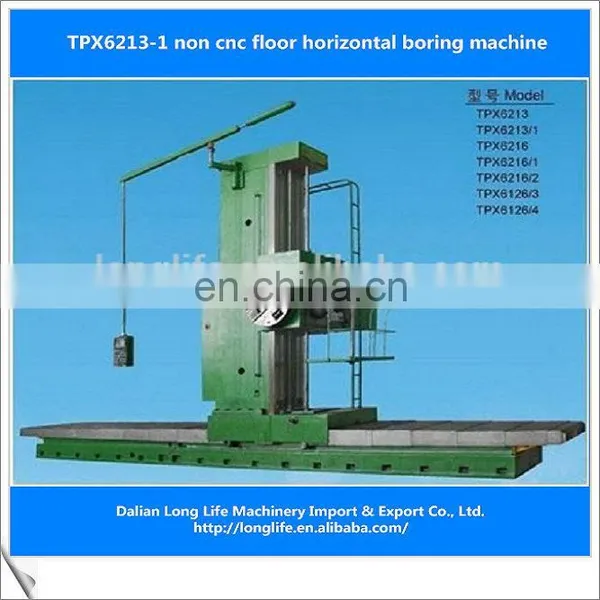

TPX6213-1 floor type horizontal boring machine
TPX6213 floor type horizontal boring miling machine can be adapted to machine casting, steel, and nonferrous word- places.
Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving.
This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type part.
Spindle is stepless speed, 4 steps speed-change by mechanical shift, 2 steps feed by mechanical shift, box ways and facing head is balanced reducing type.
Specifications |
Unit |
Parameter |
Spindle bore diameter |
|
Φ130 |
Spindle taper |
|
Metric 80# |
Spindle speed (stepless) |
r/min |
4~800 |
Range of spindle speed |
mm/min |
0.01~8 |
Travel of spindle (Z-axis travel) |
mm |
900 |
Distance from spindle center to table surface |
mm |
Max.2000 Min.240 |
Max. spindle axial thrust |
N |
31360 |
Max, spindle torque |
Nm |
4900 |
Travel of headstock (Y - axis travel) |
mm |
2000 |
Feed range (stepless) |
mm/min |
4~200/0.05~8 250~800/0.01~2 |
Travel of front column (X - axis travel) |
mm |
8000 |
Maximum loading capacity |
t/m2 |
15 |
Power of main motor |
kW |
15 |
Feed motor power |
kW |
5.5 |
Overall dimensions (LxWxH) |
mm |
10000x1470x4115 |
Weight of machine |
t |
45 |
Pls send inquiry to me for optioanl accessories and other further information about horizontal boring machines.
Payment Term:
1. 30% down payment, 70% by T/T before shipment;
2. 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
1. 1 Set;
2. ≥2 sets, there will be much discounts.
Warranty:
1. Normally, 12 months for parts as of delivery of the machines;
Shipment:
1. For machine itself, by sea or train(inland countries).
2. For documents, by international express. eg DHL, TNT or EMS.
