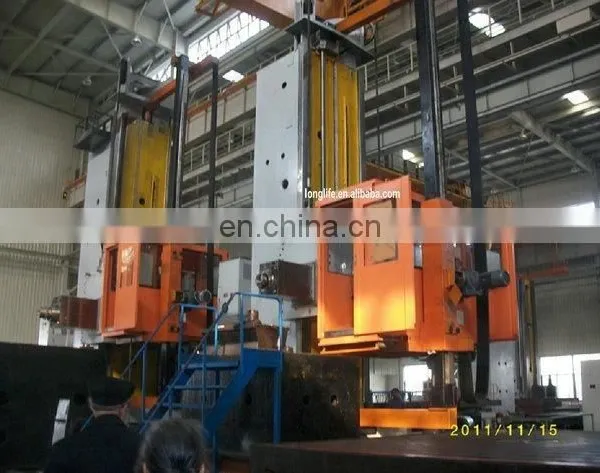

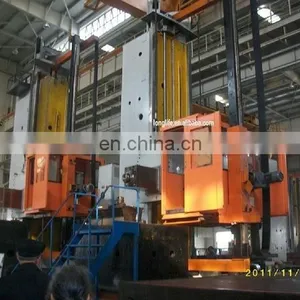

TPK200 cnc boring and milling machine
(floor type, 200mm spindle diameter)
Item |
Unit |
TPK200 |
Headstock | ||
Spindle dia. |
mm |
200 |
Spindle taper |
ISO |
60 |
Spindle speed |
rpm |
2.5~800 |
Shift number of spindle gear |
|
4 |
Spindle torque |
Nm |
16000 |
End size of milling head |
mm |
330 |
Ram section |
mm |
460x550 |
Main motor power |
kW |
100 |
Working range | ||
X-axis(column travel) |
mm |
6000+nx1000 |
Y-axis(headstock vertical travel) |
mm |
4000~6000 |
Z-axis(ram travel) |
mm |
1200 |
W-axis(spindle travel) |
mm |
1250 |
Overlay travel of spindle and tram |
mm |
2450 |
Travel speed |
|
|
X-axis |
mm |
0.1~8000 |
Y-axis |
mm |
0.1~5600 |
W-axis |
mm |
0.1~4500 |
Z-axis |
|
0.1~4500 |
Measuring system |
|
HEIDENHAIN |
CNC system |
|
Siemens 840D sl |
Spindle bearing adopts constant flow hydrostatic bearing. with advantages of heavy loading capacity. little heat dissipation, and long term accuracy stability;
X. Y. Z axis adopt pump per pocket hydrostatic guideway of constant flow;
Double rack and pinion transmission for clearance elimination, and preloaded ballscrew transmission;
Headstock balancing adopts electro-hydraulic compensation mechanism;
Auto diagnoses function for convenient operation.
S/N |
Name |
Quantity |
1 |
Radial tool post |
1 |
2 |
work table |
1 |
3 |
Socket wrench |
1 |
4 |
Socket wrench |
2 |
5 |
Small adjusting shaft of spindle bearing nut |
1 |
Pls send inquiry to me for optioanl accessories and other further information about such cnc boring and milling machine.
