5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre

5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre thumbnail-1
5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre thumbnail-2
5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre thumbnail-3
5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre thumbnail-4
5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre thumbnail-5
5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre thumbnail-6
5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre thumbnail-7
5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre photo-1

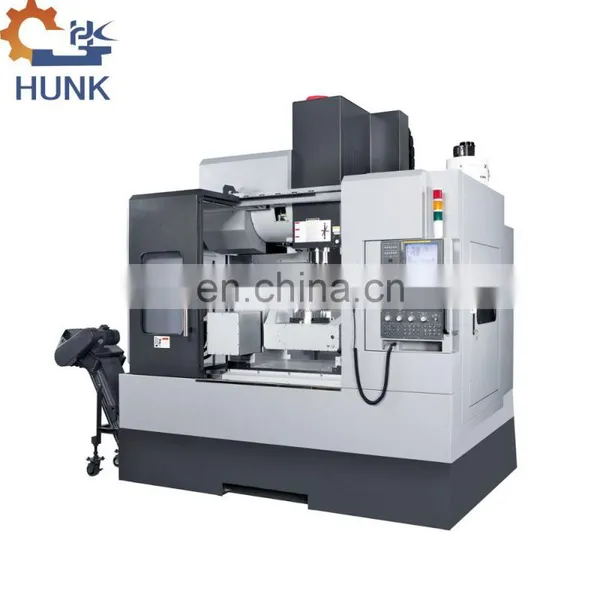

5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre photo-2

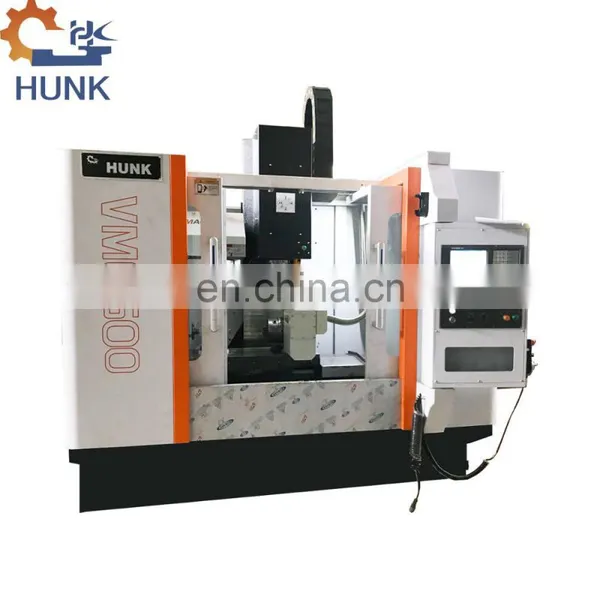

5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre photo-3
5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre photo-4
5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre photo-5
5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre photo-6
5 Axis CNC Portable Milling Machine VMC600L CE Economical Vertical Machining Centre photo-7
US$ 25500.00 - 26000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2014
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Turn Mill CNC Machine Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
VMC MACHINE

standard configuration

1)5.5kw servo motor, spindle speed 10000rpm, BT40
2) 16(standard) tools, Drum-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) PMI (Taiwan) linear guideway,
6) ROYAL/POSA (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

Optional configuration:

1)
No tool magazine
2)
16 tools, Umbrella-type tool magazine
3)
4th axis ( bar type, made in China), center height 110mm/125mm, with tailstock
4)
4th axis (bar type, GAS Taiwan) CNC-120R/170R/200R, with tailstock
5)
4th axis (bridge type, GSA Taiwan) CNC-120R/170R/200R
6)
5th axis option
Technical parameter
Item
unit
VMC600
Table size
mm
800*360
Load capacity
kg
350
T slot
3-14*115
X axis travel
mm
600
Y axis travel
mm
400
Z axis travel
mm
500
Distance from spindle center to table
mm
100-600
Distance from spindle center to columnslide way
mm
430
Tool shank
BT40
Spindle speed
RPM
8000
Spindle motor power
KW
5.5
MAX.diameter of tool
mm
120*200
MAX,length of tool
mm
350
MAX.weight of tool
kg
8
X/Y-axis rapid moving speed
mm
30000
Z axis rapid moving speed
mm
30000
Feed rate
mm/min
2.5-3000
Positioning  accuracy
mm
0.015
Repeated positioning accuracy
mm
0.0075
Out dimension
mm
2400*2250*2270
Weight
kg
3300
Test
Packing & Delivery
Our Service

1.24 hours on Internet and Telephone, free instruction and problem solving.

2. Free training how to use cnc lathe machine.

3. User-friendly English manual or operating video for machine using and maintaining.

4. on-the-spot training and installation can be met if required.

5. We always deliver CNC lathe machine on time so that our customers does not need to waste extra time to wait. We also respond our customer at the first time in order to satisfy customers' requirement.
