6.0 mm Corten Steel Front End Container Corner Post

6.0 mm Corten Steel Front End Container Corner Post thumbnail-1
6.0 mm Corten Steel Front End Container Corner Post thumbnail-2
6.0 mm Corten Steel Front End Container Corner Post thumbnail-3
6.0 mm Corten Steel Front End Container Corner Post thumbnail-4

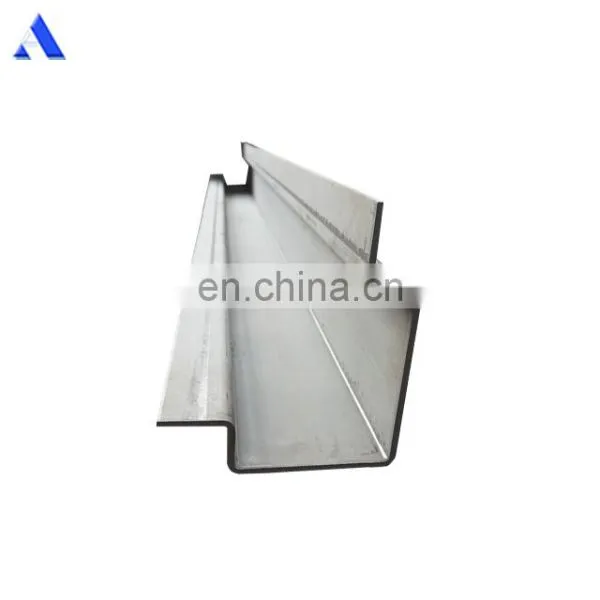

6.0 mm Corten Steel Front End Container Corner Post photo-1

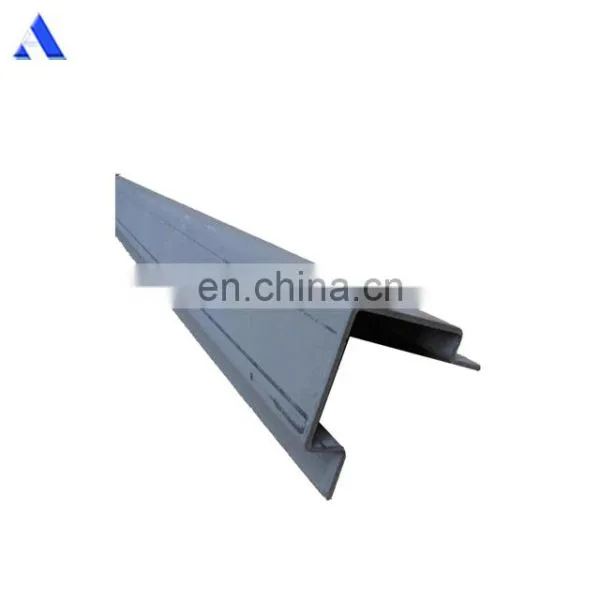

6.0 mm Corten Steel Front End Container Corner Post photo-2

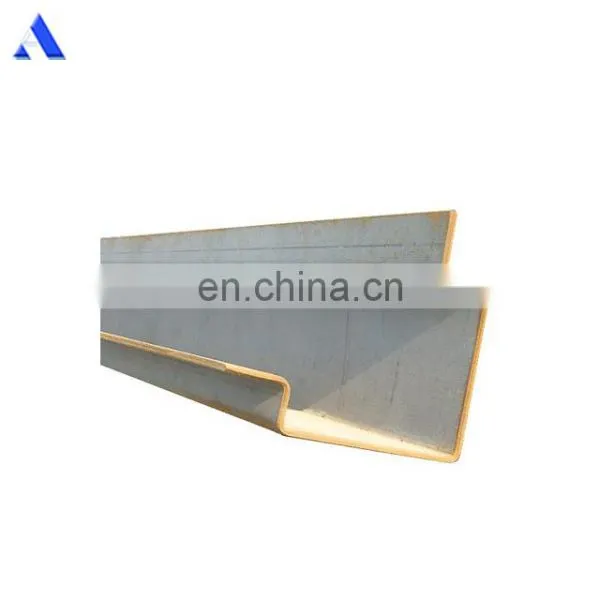

6.0 mm Corten Steel Front End Container Corner Post photo-3

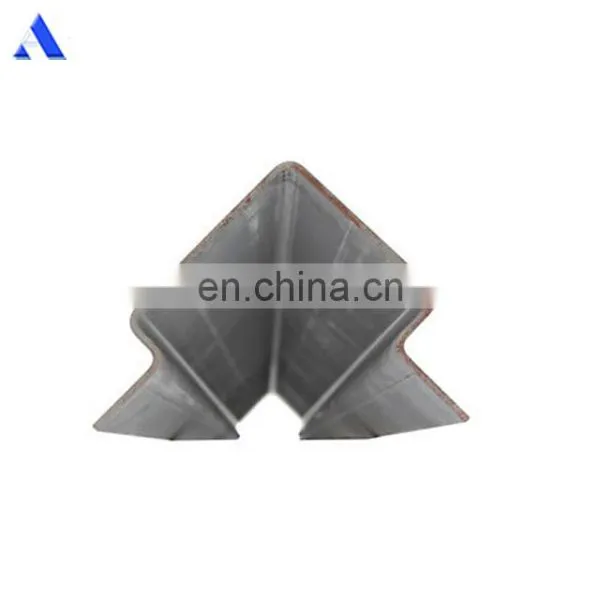

6.0 mm Corten Steel Front End Container Corner Post photo-4
US$ 50.00 - 100.00 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
ACE, ACE
Place of Origin:
Tianjin, China
Type:
Dry Container
Contact Supplier Request Quote Chat Now
White Tarpaulin Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ACE, ACE
Place of Origin Tianjin, China
Type Dry Container
SUPER SEPTEMBER
Related Product

All Types Shipping Container Parts

Container Corner Casting
Container Floor Plywood
All Type Dry Shipping Container

All Type Reefer Container

All Type Tank Container

Product Description

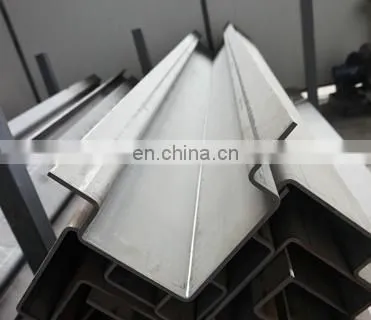

Container Corner Post

1. Size: Please check the chart as follows.
2. Material: Corten-A steel (SPA-H )
3. Weight: Please check the chart respectively as follows.
4. Type of Corner: GP/HC Container
5. Usage: Container building
6. Surface Treatment: Zinc Shop primer coated

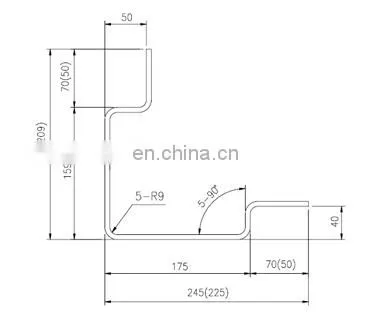

Specifications_Container Front Corner Post
Type:
GP Container Using
HC Contaienr Using
Size:
6.0 x 209 x 225 x 2400 mm
6.0 x 229 x 245 x 2400 mm
6.0 x 209 x 225 x 2700 mm
6.0 x 229 x 245 x 2700 mm
Weight:
59.46kgs
72.89 Kgs
Material:
SPA-H Corten-A steel
Usage:
20ft 40ft container building
Serface Teatment:
Shop Pirmer
Package:
Usually 20 pcs packed into one pallet
Other size is ok, we could do we per your requirement.

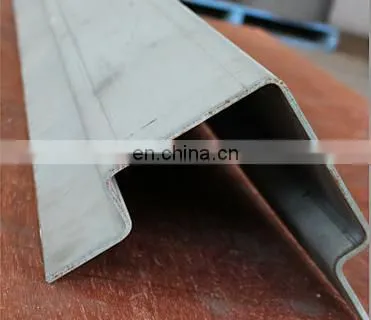

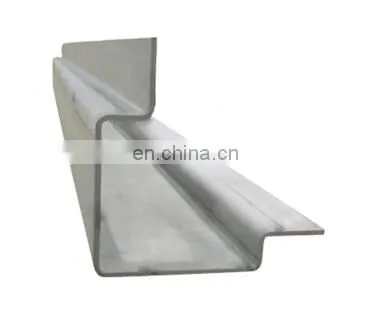

Detailed Images
NOTE:
We could also supply other container spare parts, we could accept mixed order.
All Container Parts List:
Other Parts
DESCRIPTION
Dimensions(mm)
Material









Door End
ISO Corner Fitting, 8pcs/set
178x162x118
SCW490
Door Hinge Set
Blade, Pin, Lug, Bush
Container Door Locking Device
Door Gaskets
1143x2254
EPDM
Gasket Retainer
SUS304
CSC plate
0.8x100x200
SUS304
Door Panel (3 CORR)
2.0X943X1957
CORTEN
Door Vertical Member Edge SQ.Tube
3.2x50x100x2260
CORTEN
Door Horizontal Member Edge, Channel
3.0x50x150x1024 or 943
CORTEN
Door Sill
4.5x158x150x2400
CORTEN
Door Header Lower
4.0x112.5x113x137.5x2400
CORTEN
Rear Corner Post inner
12x113x40x2353
CORTEN
Rear Corner Post outer
6.0x70x39x230x2400
CORTEN


Front End
Front End Panel
2.0x1024x2400
CORTEN
Front Corner Post
6.0x209x225x2400
CORTEN
Front Bottom Rail
4.0X115X154x2400
CORTEN
Top End Member SQ.Tube (Horizontal)
3.0x60x60x2112
CORTEN
Roof
Container Roof Panel (5 CORR)
2.0x1045x2356
CORTEN
Door Header Upper (Extension Plate)
3.0x388x2400
CORTEN
Top End Rail (Extension Plate)
3.0X397x2400
CORTEN
Side
Container Side Panel
1.6x1116x2400
CORTEN
Top Side Rail, SQ. Tube
3.0x60x60x5702
CORTEN
Ventilator Cover
204x67x25
ABS





Base
Container Plywood Flooring, 19ply
28x1160x2400
Hardwood
Floor screw
L=5 to 120
CORTEN
Bottom Side Rail
4.5x50x162x30x5702
CORTEN
Cross Member Small
4x45x122x45x2350
CORTEN
Cross Member Large
4x45x122x75x2350
CORTEN
Fork Pocket Bottom Plate
360x300
CORTEN
Fork Pocket Top Plate
360x2350
CORTEN
Gooseneck parts
CORTEN




Other
Lashing Ring
SS41
Hexagon Set screws Nuts and Bolts
L=6 to 200
CORTEN
Sealed pop rivet Blind rivet
4.8*16.5
CORTEN
Decals: Weight& Capacity, UIC, Container Type, Ower's Serious
CORTEN
Open Top Container: Header Hinge,Tarpaulin, Eyelet,TIR Cable, D-Ring
Flat Rack: Twistlocks

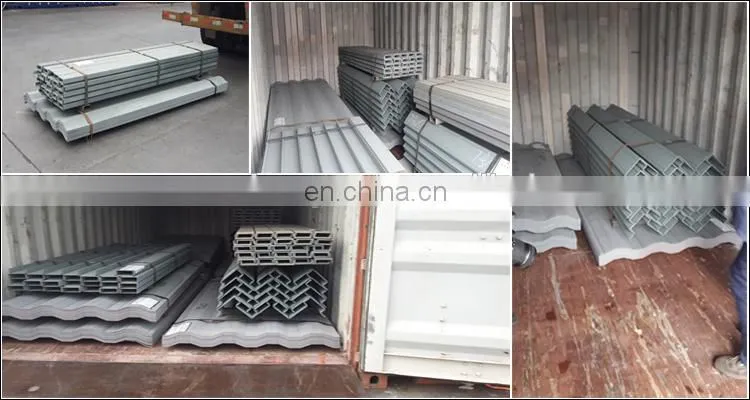

Packing & Delivery

Container Corner Post

1. Container front corner post: 20 sheets packed into one pallet.
2. We could arrange them via LCL and FCL.
