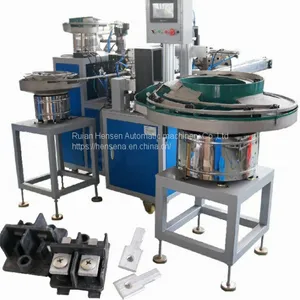

Help CenterAutomatic Assembly and Screwdriver Machine for Electric Parts
Related Products
-
Automatic Cable Clip assembly machineUS$ 100 - 1000MOQ: 1 Set -
Automatic Pencil sharpener assembly machineUS$ 100 - 1000MOQ: 1 Set
-
Automatic O-ring/seal Ring Assembly MachineUS$ 100 - 1000MOQ: 1 Set
-
Clothes Peg Assembly MachineUS$ 100 - 1000MOQ: 1 Set
-
Custom Automatic Electric Portable Coffee Maker Automatic Coffee GrinderNegotiableMOQ: 1 Set
I. Description

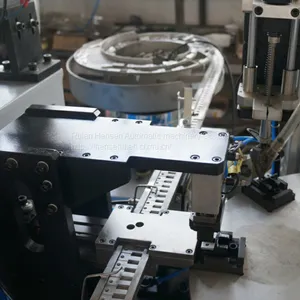

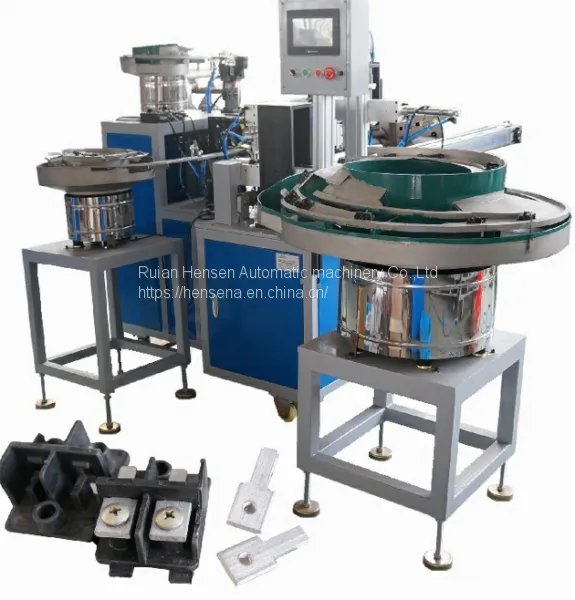

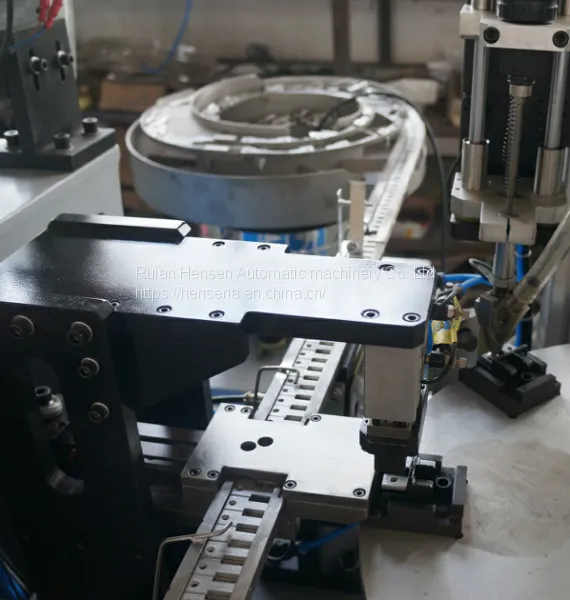

1. this machine is 8-station 2-axis turntable fixing screw machine, installed on the rotary table with 4 jigs. Each turntable rotation to complete a product, each time feeding 2 pcs of screw.
2. screw dropping with fiber check, guaranteed the number of screws.

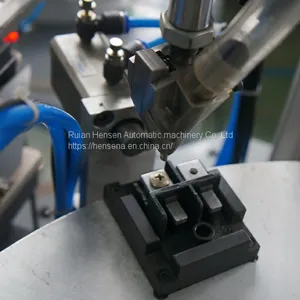

3. With automatic clutch screw driver, when the screws arrive to the torque will automatically stop, can determine the locking screw sliding, floating and other defective products, and displayed on the touch screen.
4. by replacing the fixture can be used for other models.
5. screw universal in the case of tooth size unchanged, different length is ok

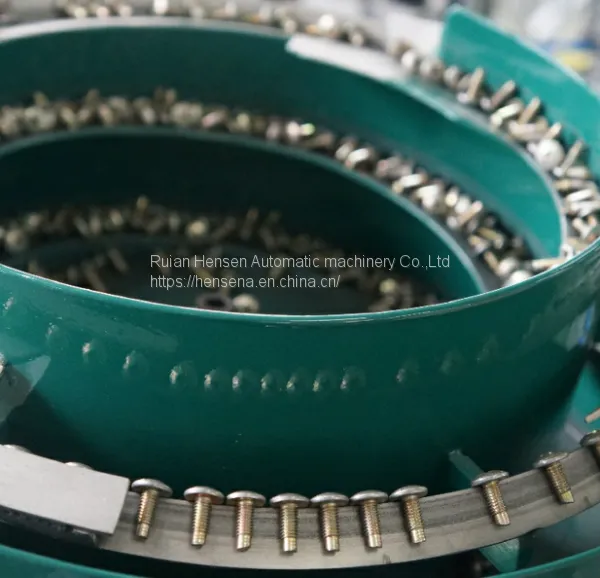

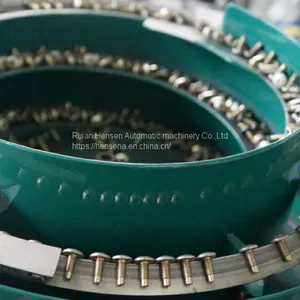

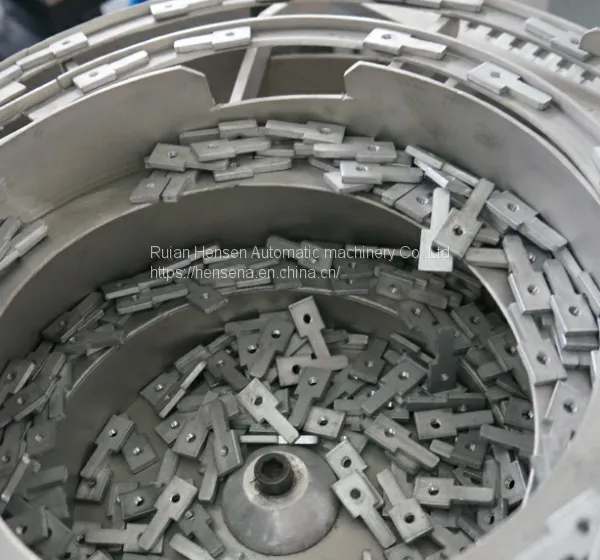

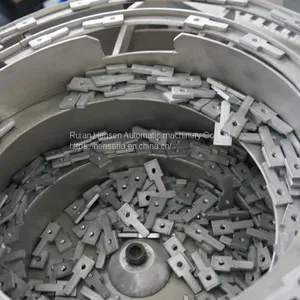

6. Auto loading the product by vibrator bowl, after fitting 2 pcs screw the robot discharge product.
II. technical parameter:
|
Main parameter Structure |
Dimension |
1650*1350*1500 (H* L* W ) |
Power supply |
AC 220V 50HZ 300W |
|
Air supply |
0.6MPa |
|
Weight |
480kgs |
|
Structure |
Disk-driver |
Gear motor+ can splitter |
Rotary working |
8 working station. 1 products/workstation |
|
Discharge |
Manipulator unloading+ conveyor belt |
|
Control system |
Host control |
Siemens PLC + Touch screen |
Efficiency |
Screwing speed |
30-40pcs/min |
Screwdriver |
Screwing number |
2 pcs (1-16 axes optional) |
Torque |
Adjustable |
|
Screw |
Specification |
M1.2-M6.0,Cross, triangle and so on |
Detection |
Screw slip, screw omit screwing |
|
Displayed on the touch screen | ||
