20T Flower Basket Tablet Press Machine|Pill Press Machine|Candy Press Machine
20T Flower Basket Tablet Press Machine|Pill Press Machine|Candy Press Machine
Introduction of China flower basket type tablets press machine :
This machine is a small continuous automatic tablet press which is one of the essential equipments
for pressing granular raw materials into tablets or medicines taken with water in pharmaceutical,
chemical, food, electronics industries.
Application of China flower basket type tablets press machine :
It can be used to press medicinal tablets, catalysts, candies, calcium, coffee pills, powder
metallurgical parts, electronics components, various tablets of pesticide and fertilizer etc.In small
batch production, laboratory and hospital.
The machine can press special shaped, ring-like tablets of different kinds, and can also process the
tablets of pesticide both sides are impressed trademarks, letters and simple patterns .
Feature of China flower basket type tablets press machine :
1. Excellent performance, strong adaptability, convenient operation
2. Machine has big pressure. Could press big tablet, for small capacity
3. Material filling and depth adjusted
4. Machine could be operated by electricity and hands.
5. Machine could press different tablet size and tablet shape by changing mould.
The machine can press special shaped, ring-like tablets of different kinds, and can also process the
tablets of pesticide both sides are impressed trademarks, letters and simple patterns .
Parameter of China flower basket type tablets press machine:
Model |
MNPT-4T |
MNPT-10T |
Max. pressure |
40 KN |
100 KN |
Max. Dia of Tablet |
45mm |
50 mm |
Max.Depth of fill |
35 mm |
45 mm |
Max. Outside Dia.of Ringlike tablet |
22 mm |
35 mm |
Max. Hole Dia. Of Ringlike tablet |
10 mm |
14 mm |
Production Capacity (pcs/hr.) |
3000 |
2750 |
Motor Power |
1.1 Kw |
3.0 Kw |
Overall Size (L * W * H) |
685 * 565 * 1610 mm |
666 * 860 * 1800 mm |
Net Weight |
520Kg |
750 Kg |

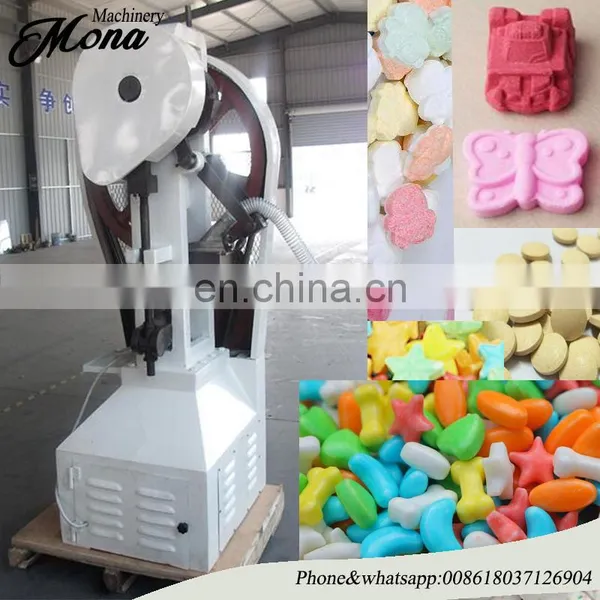

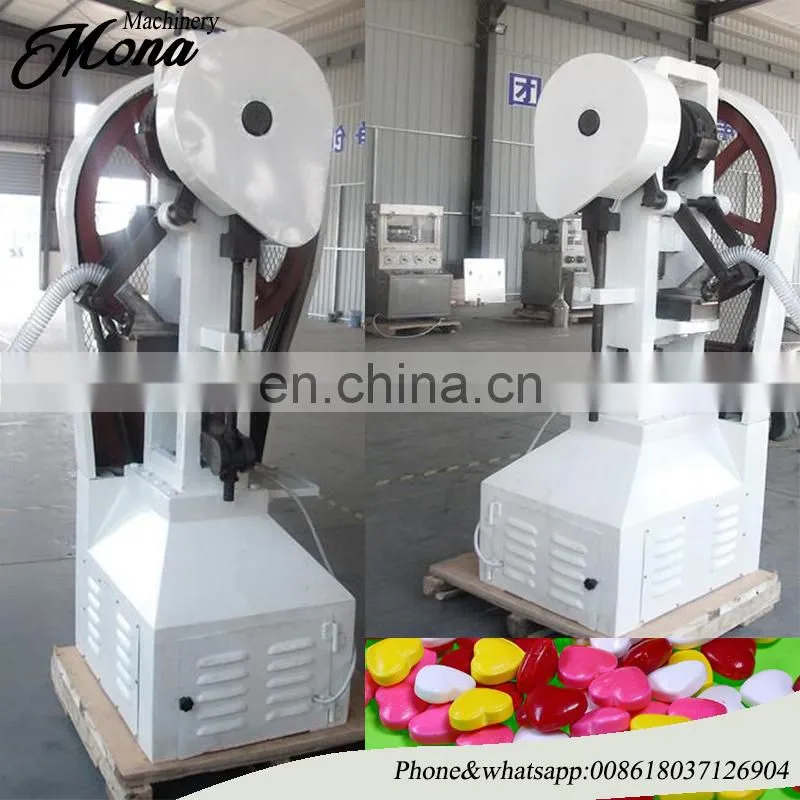

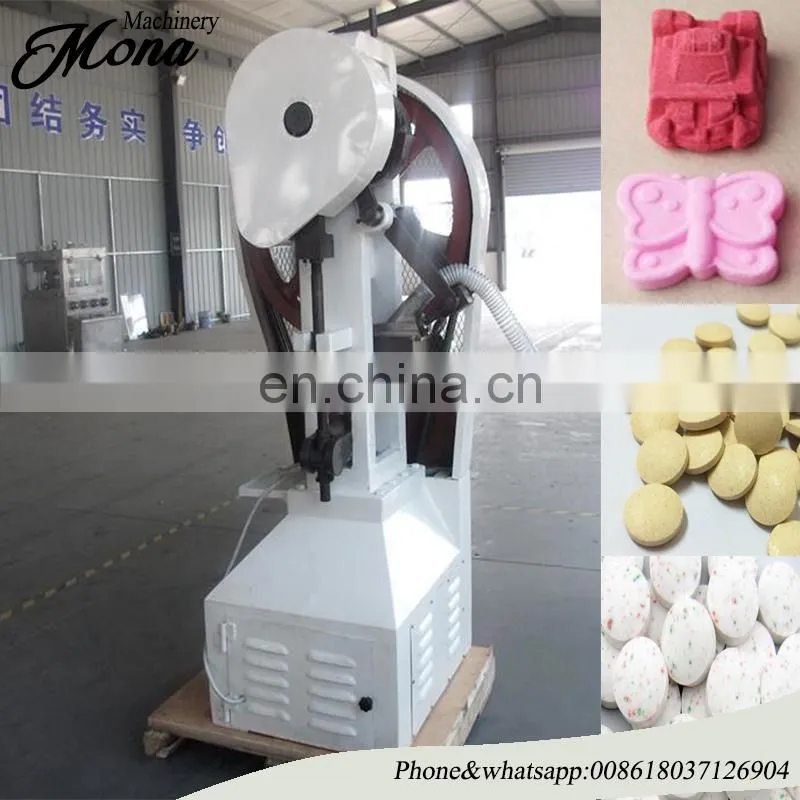

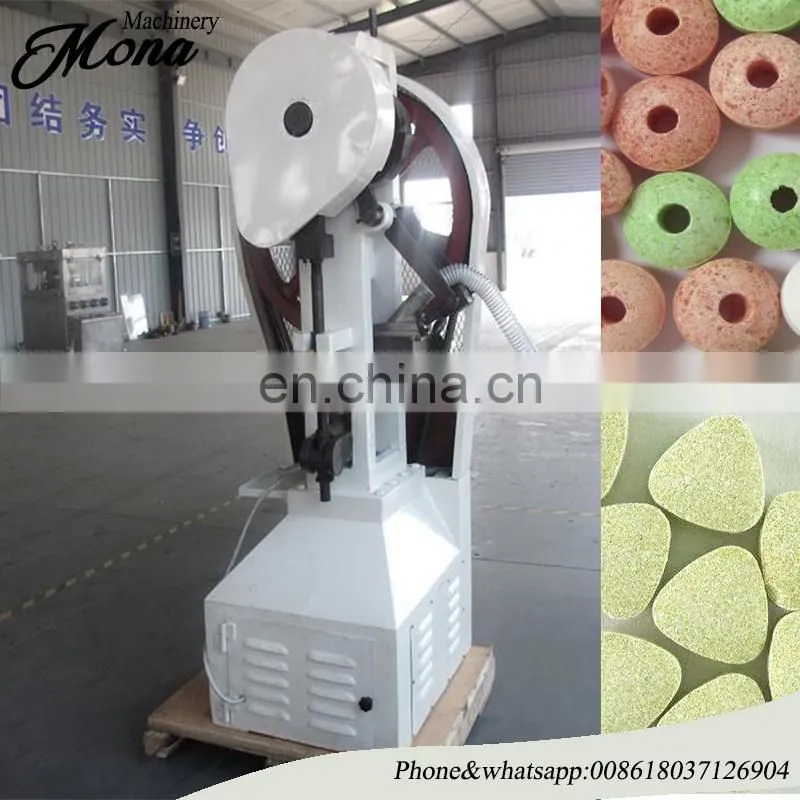

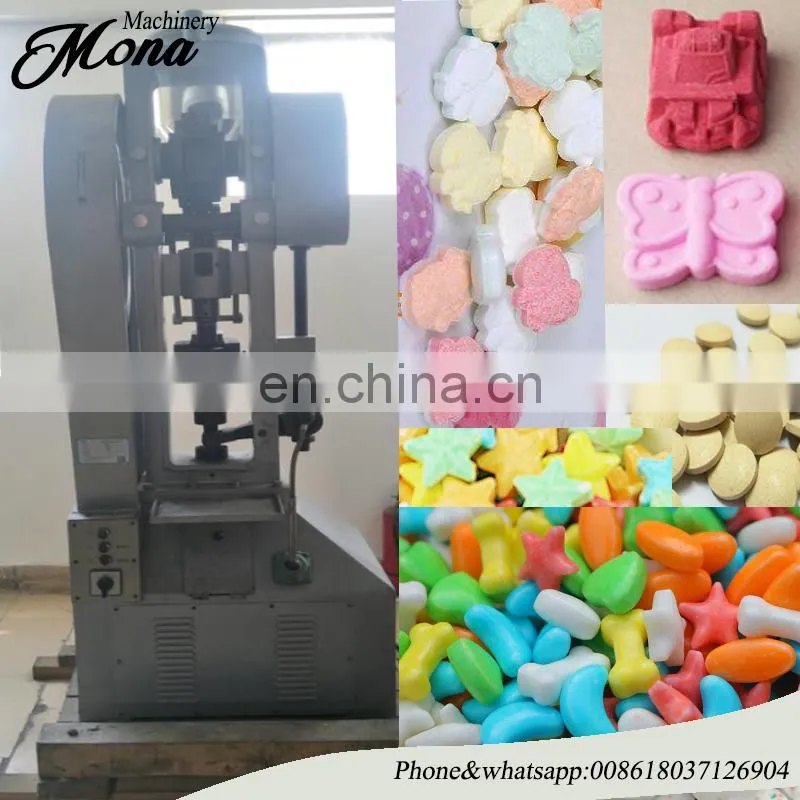

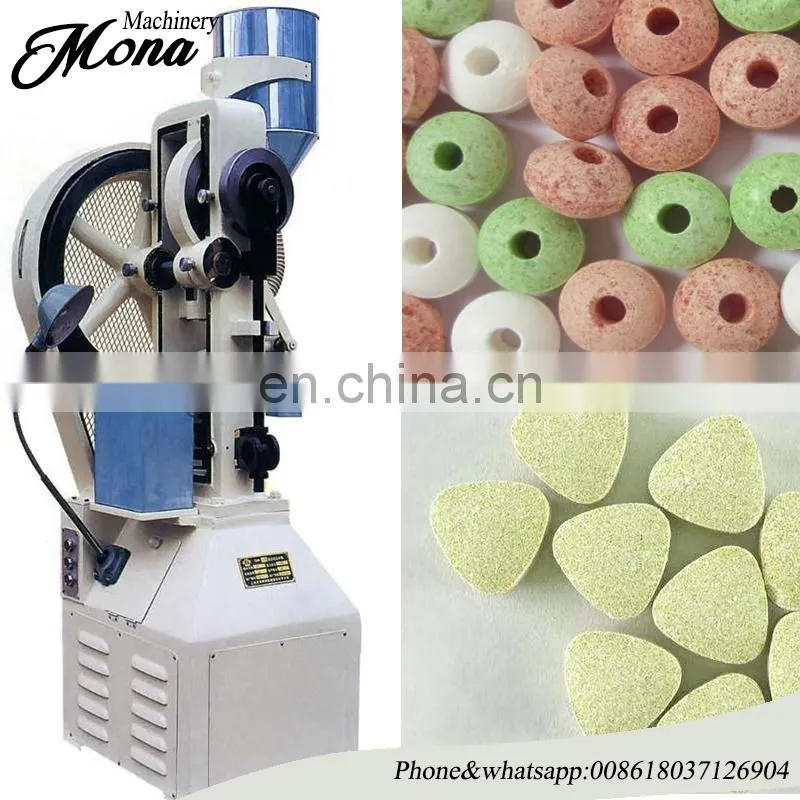

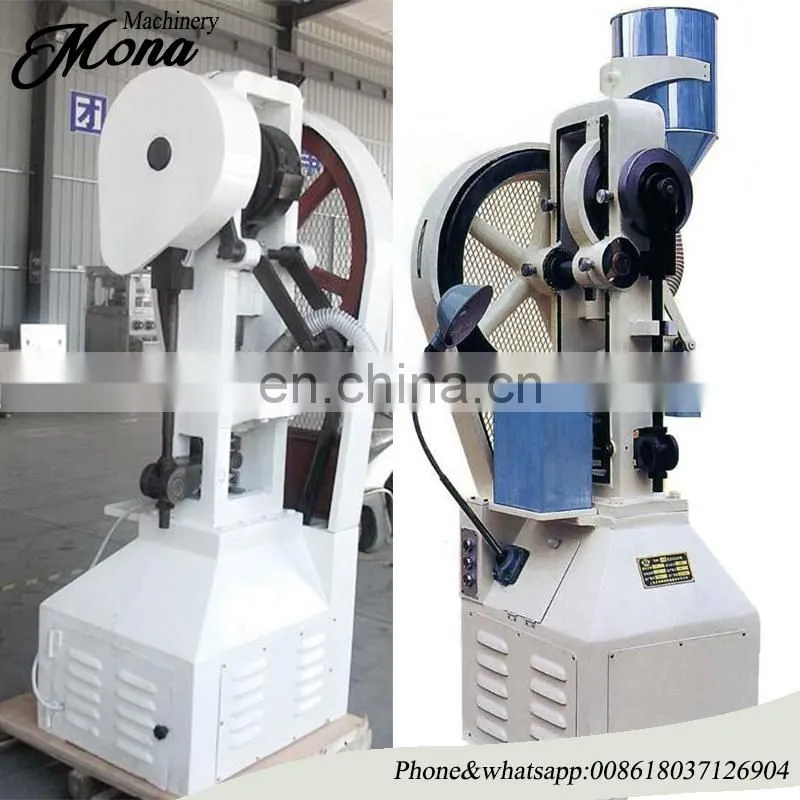

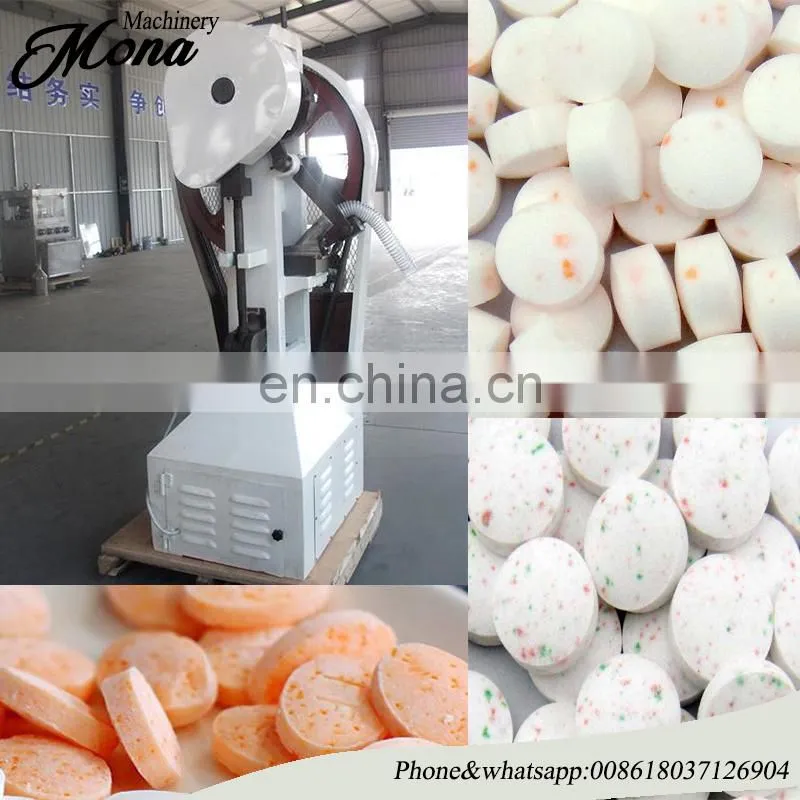

Picture of flower basket type tablets press machine
