Home > Industrial Equipment & Components > Engine & Part > Engine > Co1200/20 1200kw 1500rmp Diesel Engine Used in Oil Field A12V190pzl+Yozj750-20zhlshb

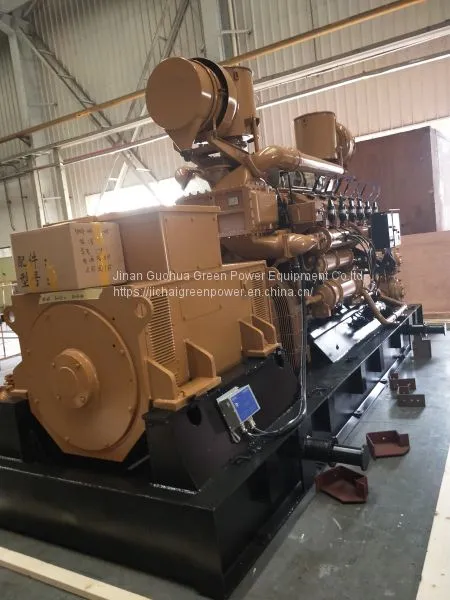

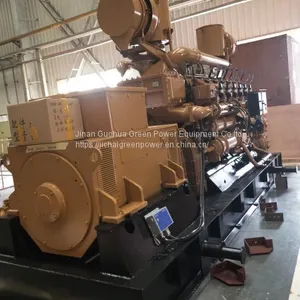

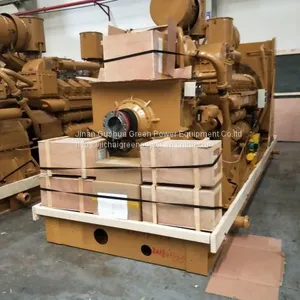

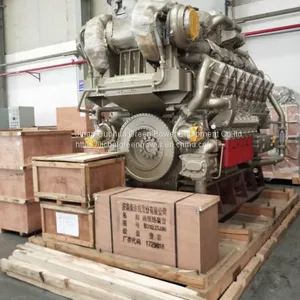

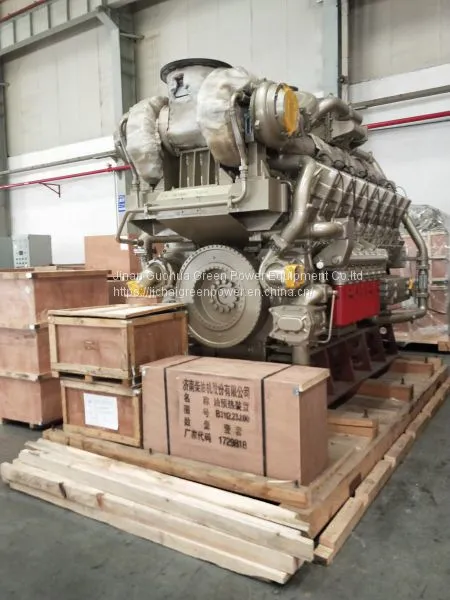

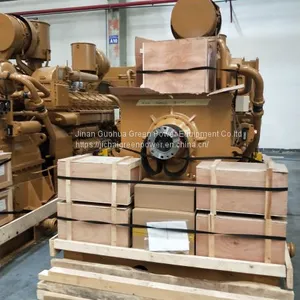

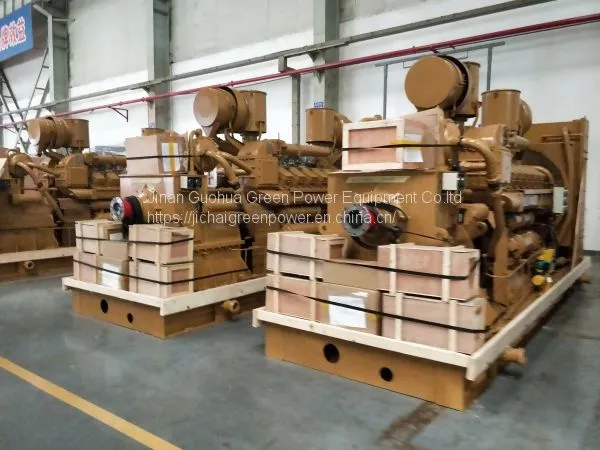

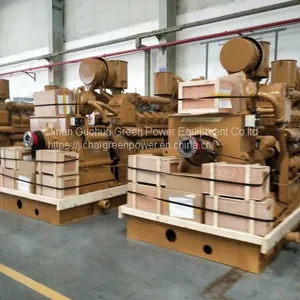

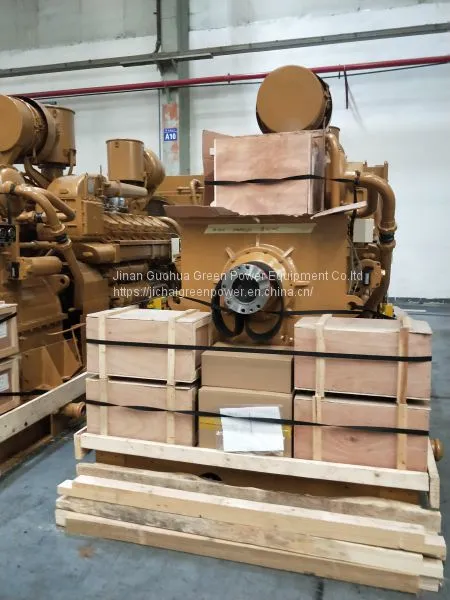

Co1200/20 1200kw 1500rmp Diesel Engine Used in Oil Field A12V190pzl+Yozj750-20zhlshb
US$ 10000 - 120000
MOQ: 1 Carton
Key Specifications
Get Latest Price
Certification:
SGS CE
After-sales Service Provided:
Overseas service center available
Weight:
10000KG
Payment & Shipping
Payment Methods:
Port of Shipment:
Jinan/qingdao/guangdong
Delivery Detail:
12 days
Related Products
-
G12V190pzl Jinan Diesel Engine Brand Drilling Engine PartsUS$ 10000 - 150000MOQ: 1 Unit -
Co1200/20 1200kw 1500rmp Diesel Engine Used in Oil Field A12V190pzl+Yozj750-20zhlshbUS$ 10000 - 150000MOQ: 1 Unit
-
JDEC JICHAI JINAN Chiodng DIESEL ENGINE 2000 DIESEL GENERATING SETSUS$ 1 - 1MOQ: 1 Piece
-
Jichai 500kw Natural Gas Generator Made in China G12V190zldt-2US$ 10000 - 150000MOQ: 1 Unit
-
1000kw Jichai Chidong Brand Natural Gas Generator H16V190zlt2-2US$ 10000 - 150000MOQ: 1 Unit
Certification
SGS CE
After-sales Service Provided
Overseas service center available
Weight
10000KG
| series 2000 diesel engines | |||||||
| Model | Rated Power（KW/hp) | Rated Speed（r/min) | Specific fuel consumption（g/kw.h) | Specific oil consumption（g/kw.h) | Overall Dimension L＊B＊H（mm) | Net weigh（KG） | |
| BG12V190ZL | 900/1500 | 800/1500 | ≤209.4 | ≤1.6 | 3160＊1770＊2400 | 5300 | |
| BG12V190PZL | 900/1500 | 800/1500 | ≤209.4 | ≤1.6 | 4374＊1740＊2400 | 8100 | |
| BG12V190ZL-3 | 810/1300 | 730/1300 | ≤209.4 | ≤1.6 | 3160＊1770＊2400 | 5300 | |
| BG12V190PZL-3 | 810/1300 | 730/1300 | ≤209.4 | ≤1.6 | 4374＊1740＊2400 | 8100 | |
| G12V190ZL | 900/1500 | 800/1500 | ≤209.4 | ≤1.6 | 2692＊1560＊2070 | 5300 | |
| G12V190PZL | 900/1500 | 800/1500 | ≤209.4 | ≤1.6 | 3860*2040*2678 | 8100 | |
| G12V190ZL-3 | 810/1300 | 730/1300 | ≤209.4 | ≤1.6 | 2692＊1560＊2070 | 5300 | |
| G12V190PZL-3 | 810/1300 | 730/1300 | ≤209.4 | ≤1.6 | 3860*2040*2678 | 8100 | |
| G12V190ZL-1 | 740/1200 | 660/1200 | ≤209.4 | ≤1.6 | 2692＊1560＊2070 | 5300 | |
| G12V190PZL-1 | 740/1200 | 660/1200 | ≤209.4 | ≤1.6 | 3860*2040*2678 | 8100 | |
| G12V190ZL-2 | 600/1000 | 540/1000 | ≤209.4 | ≤1.6 | 2692＊1560＊2070 | 5300 | |
| G12V190PZL-2 | 600/1000 | 540/1000 | ≤209.4 | ≤1.6 | 3860*2040*2678 | 8100 | |
| G8V190ZL | 600/1500 | 540/1500 | ≤213.5 | ≤2.7 | 1802＊1560＊2070 | 4300 | |
| G8V190PZL | 600/1500 | 540/1500 | ≤213.5 | ≤2.7 | 3280*2040*2678 | 6750 | |
| G8V190ZL-3 | 510/1300 | 460/1300 | ≤213.5 | ≤2.7 | 1802＊1560＊2070 | 4300 | |
| G8V190PZL-3 | 510/1300 | 460/1300 | ≤213.5 | ≤2.7 | 3280*2040*2678 | 6750 | |
| G8V190ZL-1 | 470/1200 | 425/1200 | ≤213.5 | ≤2.7 | 1802＊1560＊2070 | 4300 | |
| G8V190PZL-1 | 470/1200 | 425/1200 | ≤213.5 | ≤2.7 | 3280*2040*2678 | 6750 | |
| G8V190ZL-2 | 390/1000 | 350/1000 | ≤213.5 | ≤2.7 | 1802＊1560＊2070 | 4300 | |
| G8V190PZL-2 | 390/1000 | 350/1000 | ≤213.5 | ≤2.7 | 3280*2040*2678 | 6750 | |
| Main technical data | |||||||
| No. and arrangement of cylinders:12,60。Vee | |||||||
| Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection | |||||||
| Bore:190mm | |||||||
| Stroke:210mm | |||||||
| Total displacement:71.45(47.6)L | |||||||
| Compression ration:14:1 | |||||||
| Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel) | |||||||
| Starting method:Air motor or electric motor | |||||||
| Lubricating method:Pressure and splash lubrication | |||||||
