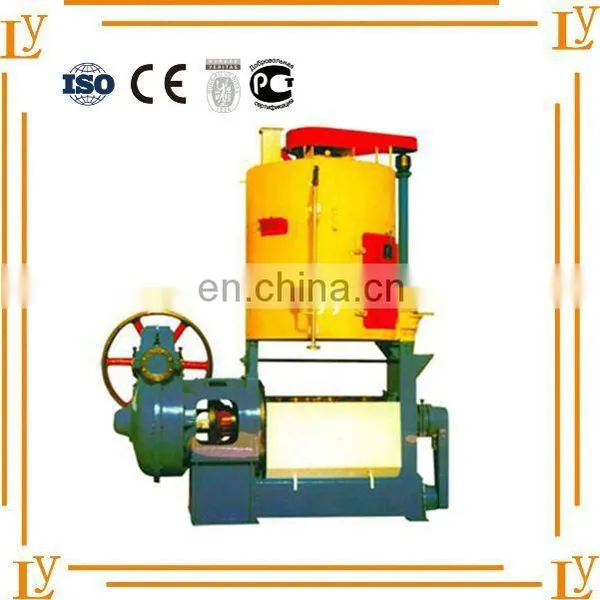

oil mill project

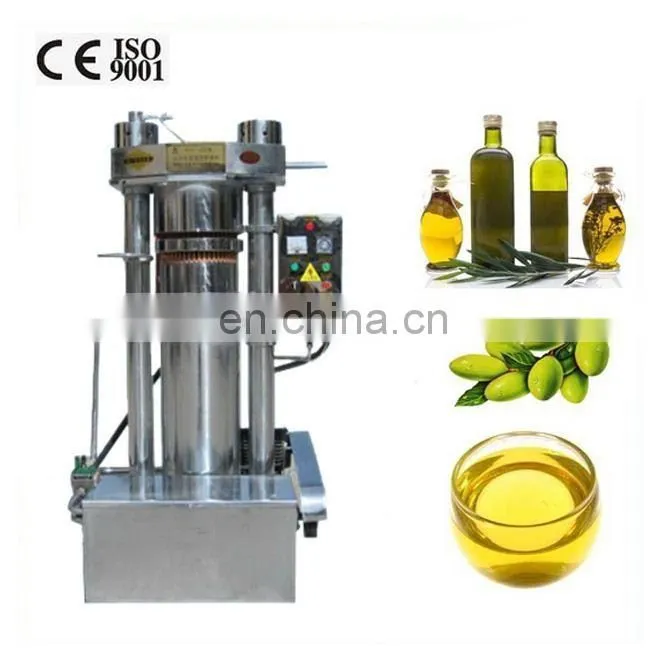

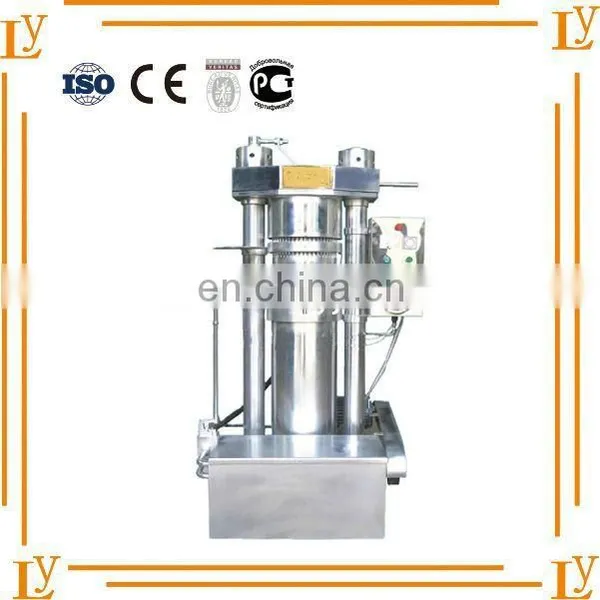

oil press machine Features:
LY type automatic hydraulic oil press features: main oil processing plant in view of the small and medium-sized, high pressure, speed is quick, USES broad, oil crops can squeeze.
oil press machine Advantage:
1.LY series of automatic hydraulic press and main processing peanut, soybean, rapeseed, tea seed, walnut, sunflower seed, castor bean, sesame seed, rice bran, corn germ oil crops, etc.
2.Compared with screw machine, oil and bread loss is small, with stable performance, convenient operation, durable, product quality is good. Bread of protein content is high, the bread of comprehensive utilization of advantages, such as wide range. The traditional hydraulic oil press, usually have three people operation, and experienced technical personnel, should pass package pile, pile, the pile. This process down, want to use 2-3 hours to complete. Take a lot of work time consuming.
3.LY automatic hydraulic oil press, only one operation, forbid to professionals, the working efficiency is greatly improved, from the oil into the machine to squeeze net only 50 minutes, a squeeze net, fast. And equipped with temperature control design, ensuring the oil yield efficiency of, electrical installation is more humanized, automatic open, automatic stop. The operation is simple, safe and reliable. Host reasonable structure, beautiful modelling, cover an area of an area small, durable, is oil press history breakthrough reform. This product to save energy, reduce the labor force, improve the oil yield efficiency of, squeeze out of oil, fragrant smell, high quality clean, as a replacement for the old oil press of advanced equipments, is also our friends to become rich good helper.
4.This oil press in addition to all of the vegetable oil press outside can also to animal oil of press, white soil press, all kinds of chemical raw materials to take off the oil, dehydration, to take off the juice, take off the function such as liquid.
oil press machine Main technical parameters:
Model |
LY-230 |
LY-410 |
LY-460-3 |
LY-460-2 |
LY-460 |
LY-500 |
Working pressure |
50Mpa |
45Mpa |
40Mpa |
40Mpa |
40Mpa |
40Mpa |
Volume of tube squeezing tube |
10kg |
80kg |
150kg |
100kg |
100kg |
200kg |
Average productivity |
200kg/8h |
700kg/8h |
1200kg/8h |
900kg/8h |
900kg/8h |
1500kh/8h |
Main power |
1.5kw |
1.5kw |
3kw |
3kw |
3kw |
4kw |
Ribbon heater power |
4kw |
4kw |
4kw |
4kw |
4kw |
4kw |
weight |
1300kg |
1500kg |
2300kg |
1900kg |
1800kg |
2800kg |
Product capacity:
Item |
sesame |
peanut |
rapeseed |
sunflower |
soybean |
cotton seed |
walnut seed |
linseed |
camellia seed |
Oil yield(%) |
45-55 |
40-50 |
30-40 |
32-40 |
11-16 |
11-25 |
42-52 |
32-38 |
26-38 |
Cake thickness(mm) |
1.0-1.5 |
0.8-2.0 |
1.0-1.5 |
1.2-1.5 |
0.8-1.5 |
1.0-2.0 |
0.8-1.5 |
1.0-1.8 |
1.0-2.0 |
Dry cake residual oil rate(%) |
≤6 |
≤6 |
≤6 |
≤6 |
≤5 |
≤6 |
≤6 |
≤6 |
≤6 |
Main Material:
materials |
models |
time period/time |
weight/time |
output /10 hour |
oil ratio |
|
sesame |
type 180 |
5-8 minutes |
1-3kg |
150-300kg |
42%--52% |
type 230 |
4-6minutes |
2-7.5kg |
450-750kg |
||
type 320 |
8-10minutes |
5-15kg |
800-1200kg |
||
|
almond |
type 180 |
5-8 minutes |
1-2.5kg |
150-250kg |
40%-45% |
type 230 |
4-6minutes |
2-6kg |
350-500kg |
||
type 320 |
8-10minutes |
5-14kg |
700-1000kg |
||
|
walnut meat
|
type 180 |
5-8 minutes |
1-2.5kg |
150-250kg |
50%-60% |
type 230 |
4-6minutes |
2-6kg |
350-500kg |
||
type 320 |
8-10minutes |
5-14kg |
700-1000kg |
||
|
pine nut |
type 180 |
5-8 minutes |
1-2.5kg |
150-250kg |
45%-60% |
type 230 |
4-6minutes |
2-7kg |
350-500kg |
||
type 320 |
8-10minutes |
5-14kg |
700-1000kg |
If you have large capacity oil material to process, how about a Oil Press Mill Project?
Application of Oil Press Porject:
Henan Institute Of Grain Machinery Manufacturing Co., Ltd. is established driven by the academy of Henan University of Technology. As a large joint-stock enterprise integrating technology, manufacturer and sales, our company is specializing in the production of grain and oil machinery, agricultural and sideline machinery.

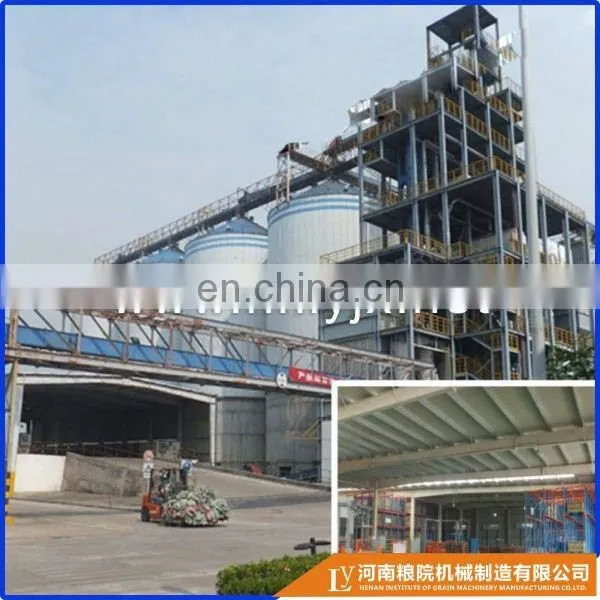

•10-500T/H oil material first cleaning,drying and storage section turn-key project.
• 100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean hot peeling, bean skin crushing; the soybean extrusion, high oil contained pre-press cake extrusion, and high oil contained embryos puffed; of direct puffed). Rice bran production line turn-key project.

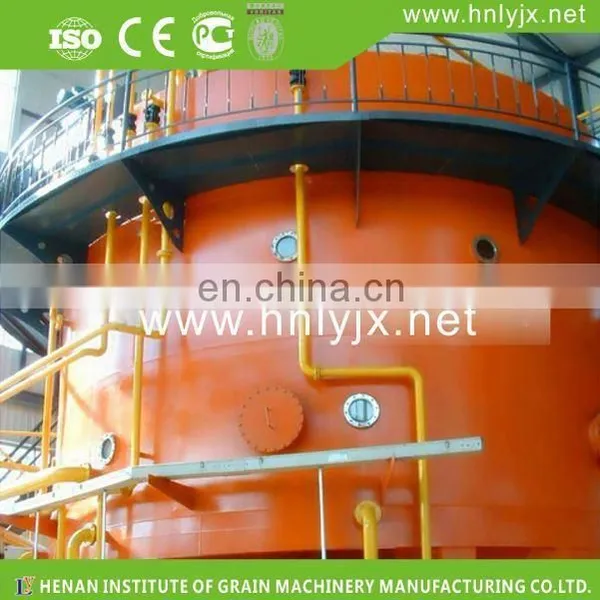

• Leaching workshop turnkey project (Towline extractor, Rotocel extractor, loop type extractor, DTDC separated machine, the full negative pressure evaporation, paraffin wax recovery, leaching workshop degum, phospholipid concentrate).

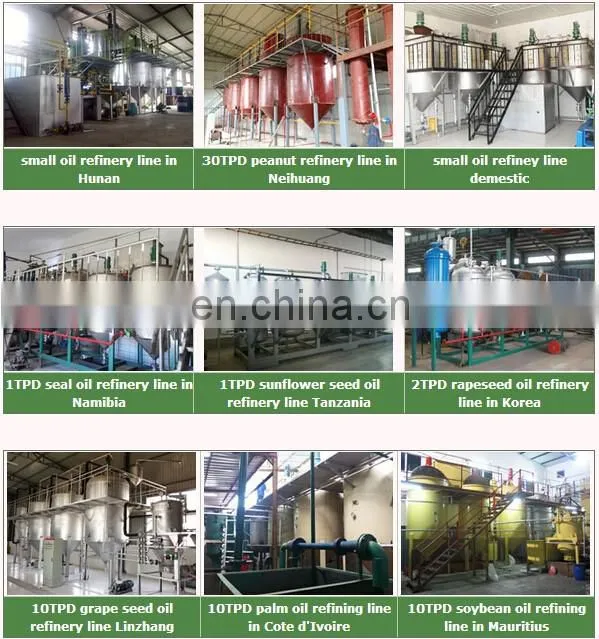

• 30-1000T/D oil continuous grade two or one physical (chemical) refining production line.
• 10-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project
• 10-200T/D Fatty acid esterification production cooking oil production line.
1. How can I get your quotation or project?
Please tell me your flowing information:
What is your raw material?Sunflower,soybean,coconut,peanut,rapeseed or other?
How much raw material do you want to process per day or per hour?
Do you need crude oil or refined oil?
2. How can I believe in your company?
We have more than 30years in all kinds of vegetable oil material machine production,and we have all kinds of production certificates,such CE,BV,ISO9001 and more,please visit our web:, and you will know more of us.
3. What is your sales-after services?
Please don’t worry,dear,if we have chance to cooperate with each other,once we signed the contract,we will build special project service team for you,from the drawing to the production,we will have special workers for all process tracking.And we will arrange our special engineers to go your project site for installation and guidance.
4. What is your MOQ?
At the moment,about the quantity,we have no special requirements,even if you just order one sets,we will do our best for you.
5. What is material of your machine?
Usually,the parts which contact with oil directly and the important are stainless steel,other part is carbon steel or Si-Mn steel and other.And we can design it according to your requirements.
Such Our machine is of high quality, such as valves from Siemens, bearings from SKF,gear box from SEW, etc.. Automatic welding machine, X-ray test machine, steel rolling machine and others are equipped completely, which won customers’ trust from Europe, America, Mideast, Romania, etc.
