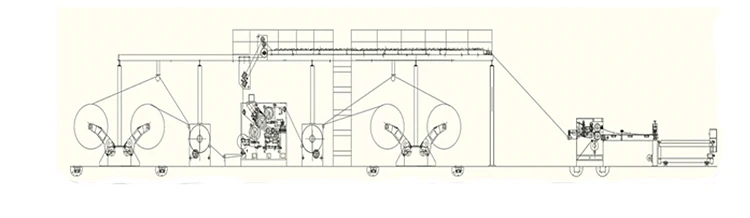

| specification | Equipment name | UNIT | QTY |
| ZJ-V5B | Hydraulic shaftless mill roll stand | a | 2 |
| / | Paper trolley | a | 4 |
| RG-1-900 | preheater | a | 2 |
| SF-320C | Fingerless type single facer | a | 1 |

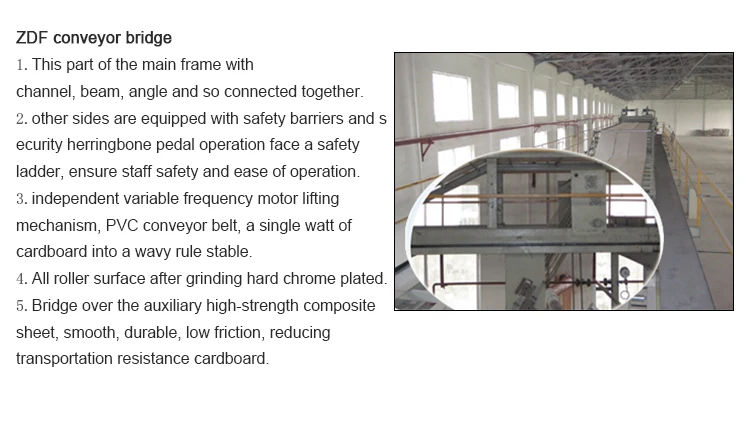

| ZDF | Conveyor bridge | set | 1 |
| DHC-150 | Single corrugated the aspect Cutter | a | 1 |

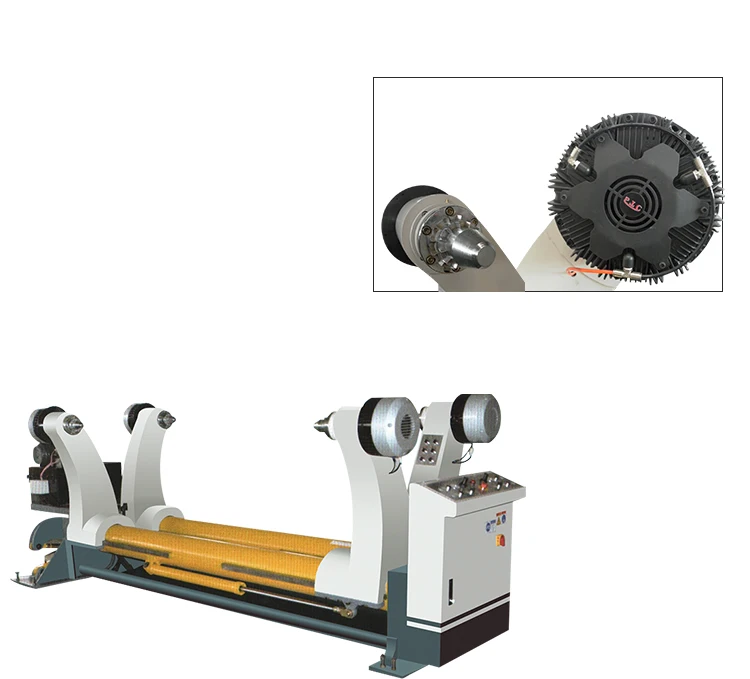

ZJ-V5B hydraulic shaftless mill roll stand
Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
Brake adjustable adopts multipoint braking system.
Every stand matched two sets paper car , and they can paper on the both sides at the same time.
Paper trolley, track
The whole track buried,The main frame of the 14th Channel steel with ¢ 20mm cold drawn welded round,length of track 6000mm.
Each paper holder matched two sets paper trolley, and paper on both sides at the same time.pull the roller paper to the right place.
RG-1-900 preheater
Preheat roller accord the pressure container national standards,and enclose the pressure container certificates and inspection certificate.
Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.
Electromotion adjustment angle, and angle can rotation adjustment the preheat area in the range of 360°.

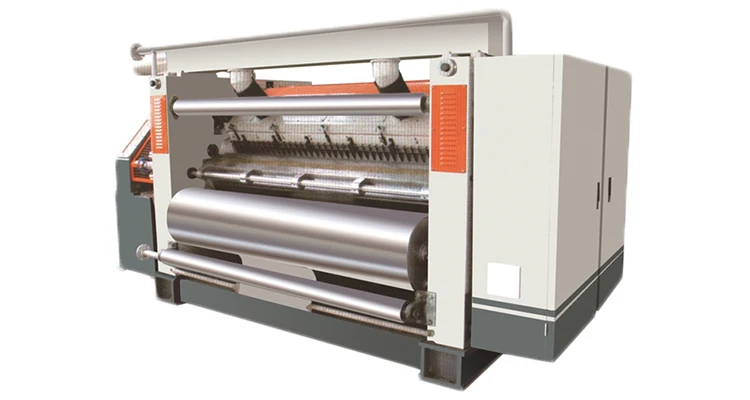

SF-320C fingerless type single facer
1.High quality resin sand casting,wall thickness 200mm.Adopt independent gear box, Universal joint transmission structure.
2.Glue roller unit structure with the overall relocation,Maintenance can sway the machine at the overall maintenance,improve the working efficiency.
3.The humidity control apparatus equipped with a spray, so flute type to maintain good stability of deformation, avoid dry.
4.Automatic circulation system for glue, two-cylinder pneumatic gluing device, with good cushioning effect.
5.Active force variable frequency motor drive, energy efficient, low failure rate.
6.Amount of glue size with electric adjustment, touch screen display and operation of the encoder transmission coating gap, high accuracy.

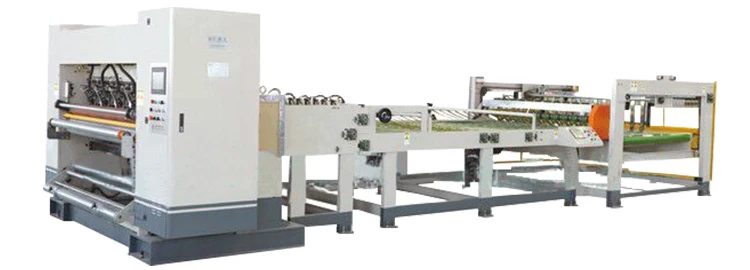

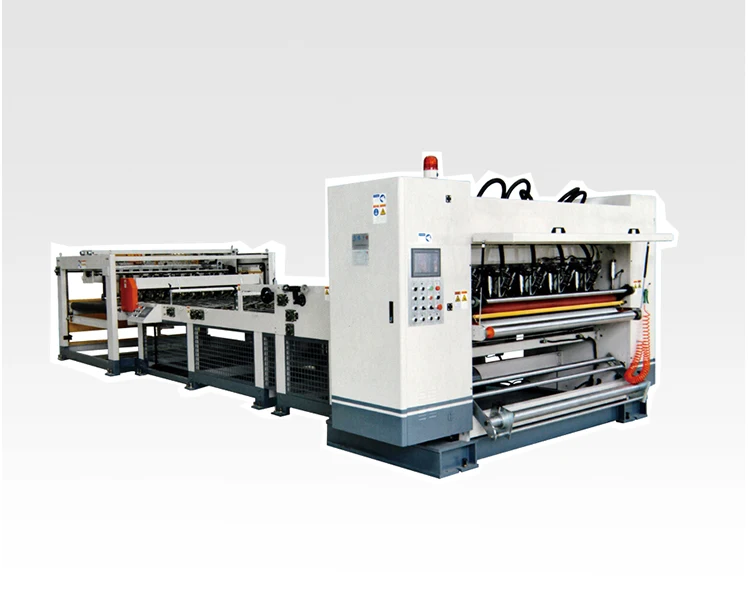

DHC-150 Single corrugated the aspect Cutter(Spiral knife Crosscutting,NC thin knife slitting, down stacking )
Store 200 groups of orders, the man-machine interface, the screen displays information can be found at any time, modify, append, canceled.
Germany KEB servo motor drive controller, high-performance synchronous servo motor drive.
Cutting Machine adopts inlaid front steel blade structure, hardened gear grinding backlash-free transmission, high precision and long life.
Host wall of gray cast iron, rigidity, vibration resistance.
stacking adopt gantry platform lifting,Reach a certain number of right-angle transverse,Three sections of the paper,Some hair design paper roll straight bend output,Second overlapping fixed-length buffer,three part points Pneumatic separate ,Accelerated export cardboard.Improve working efficiency.The maximum length of stacked is 1.3 meters .This machine is suitable for efficient production color printing business.
For a single fast, for a single time 3-8 seconds.
Using thin tungsten alloy steel knife,blade sharp,the using life is more than 8000000 meters.
