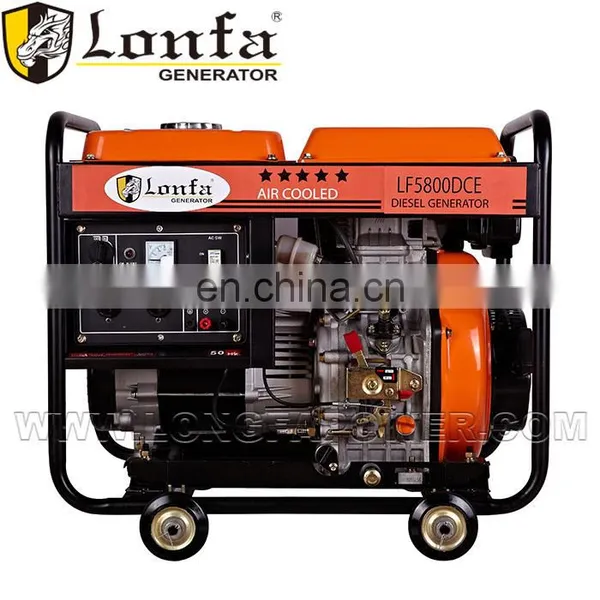

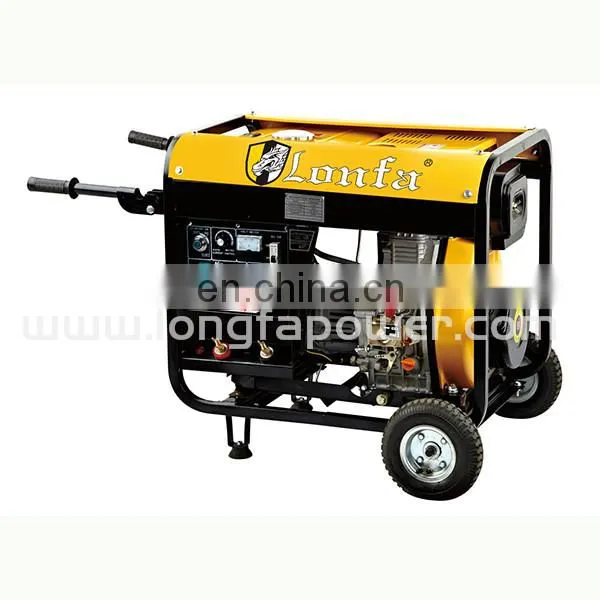

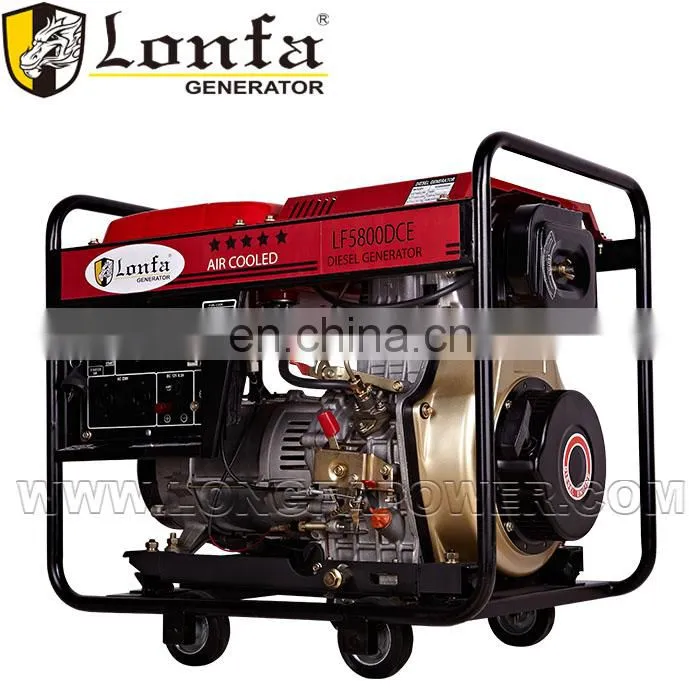

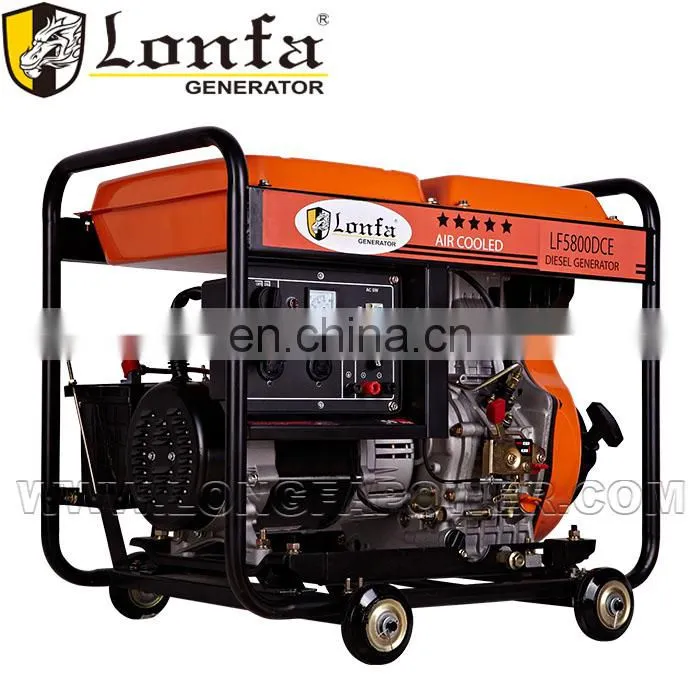

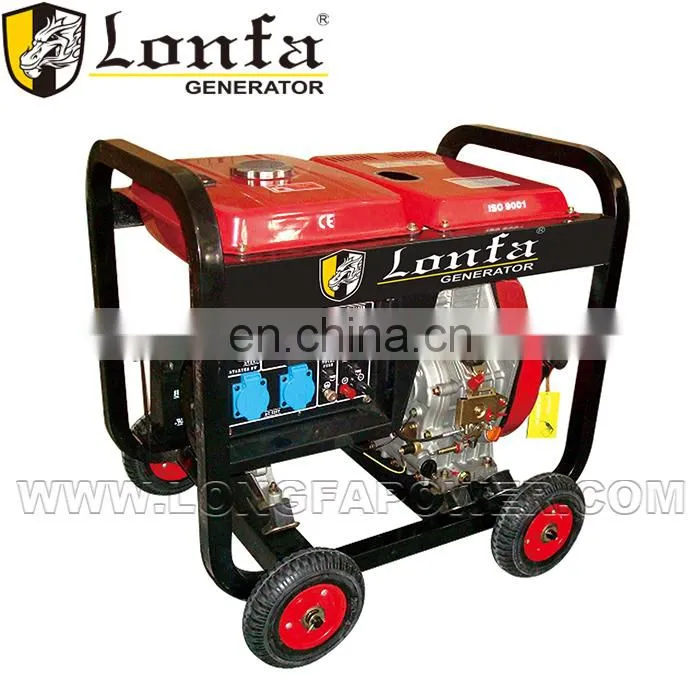

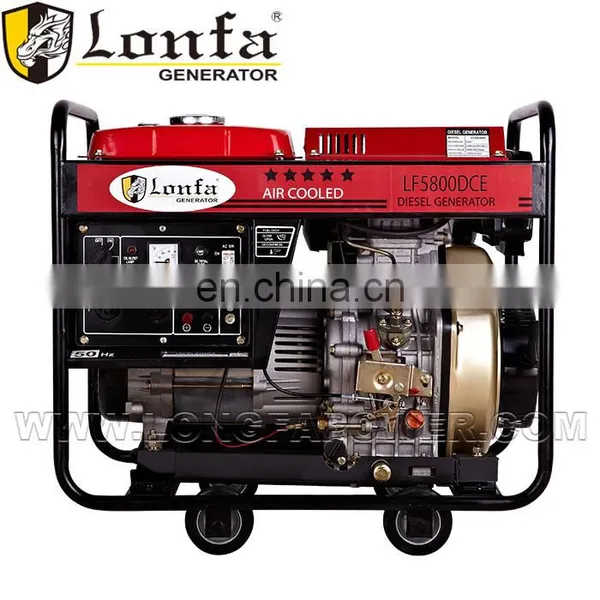

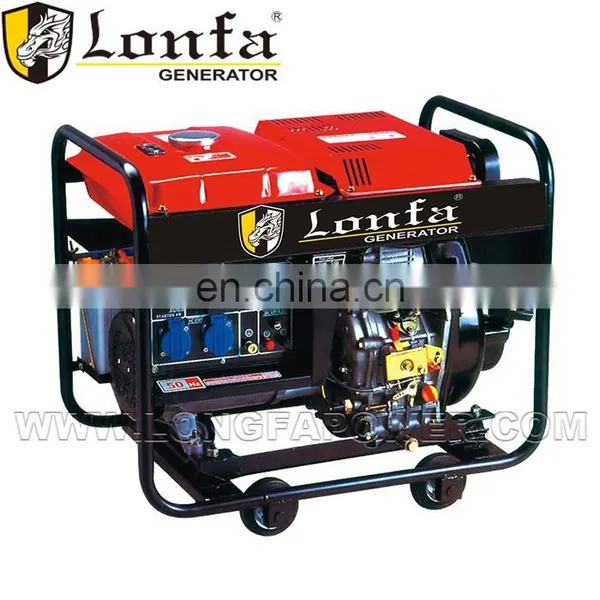

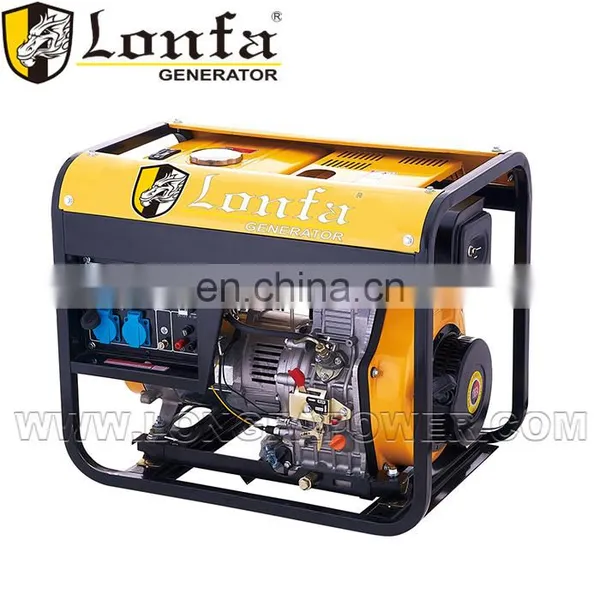

5000W Open Type Diesel Generator set with Handle and Wheels
| ITEM | OPEN TYPE DIESEL GENERATOR | |||||
| Type | Revolving Magnetic Field,Self-exciting,2 Poles,Single-phase(or 3-phase) | |||||
| Rating frequency(Hz) | 50/60 | |||||
| Rated AC Output(kVA) | 1.8 / 2.0 | 3.0 / 3.3 | 4.2 / 4.6 | 5.0 / 5.5 | 6.5/7.0 | 7.5/8.0 |
| Max. AC Output(kVA) | 2.0 / 2.2 | 3.3 / 3.6 | 4.6 / 5.0 | 5.5 / 6.0 | 7.0/7.5 | 8.0/8.5 |
| Voltage(V) | 110,115,120;220,230,240;110/220,115/230,120/240,(Single Phase)380,400,380/220,400/230(3 Phase) | |||||
| Voltage Regulator | Auto Regulating System | |||||
| Power factor(cos) | 0.8/1.0 | |||||
| Model | LFD170 | LFD178 | LFD186 | LFD186A | LFD188 | LFD192 |
| Type | Air-cooled,Single-cylinder,4-stroke,Direct-injection,Diesel Engine | |||||
| Bore x Stroke(mm) | 70x55 | 78x62 | 86x70 | 86x72 | 86x72 | 90 x 66 |
| Diaplacement(CC) | 211 | 296 | 406 | 418 | 418 | 420 |
| Max Power | 4.2/3600 | 6.0/3600 | 9.4/3600 | 10.0/3600 | 8.0/3600 | 10.0/3600 |
| Recommended Fuel | Light Diesel | |||||
| Fuel tank capacity(L) | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 25 |
| Engine Oil Capactiy(L) | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 |
| Lube Oil | SAE 10-30W | |||||
| Start System | Recoil or Electric/Recoil | |||||
| Operating Hour for 1 Tank Fuel(Hrs) | 18 | 12 | 9 | 7 | 7 | 7 |
| Noise level(7m)dB(A) | 82-84 | 82-84 | 82-84 | 82-84 | 82-84 | 82-84 |
| Packing Dimension Lx Wx H(mm) | 640x480x540 | 660x505x565 | 755x490x605 | 745x505x655 | 745x505x655 | 755x490x605 |
| Gross Weight/Net Weight(kg) | 50/ 48 | 67/ 62 | 92/90 | 107/ 105 | 107/ 105 | 101/99 |
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, Zhejiang Province, China, about 3 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: Only New material can be used for our products.
Materials for Generator: 100% Pure Crankcase, 100% Pure Copper Wire
Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase
4.Q:What is Minimum Order quantity?
A: MOQ 50/100 pieces for different products.
You are welcomed to consult for details.
5.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test,but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.
5000W Open Type Diesel Generator set with Handle and Wheels
