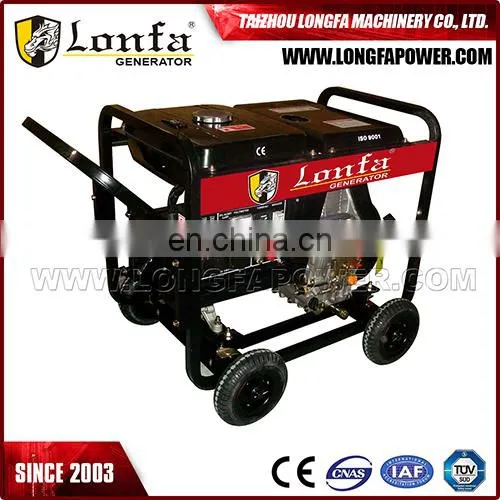

Help Center5KVA KAMA Open 186F Diesel Generator
Related Products
-
10KVA Silent Diesel Generator Brushless High Power Electric Generator Diesel Generator 10000 Watt 3 PhaseUS$ 2,252 - 3,456MOQ: 5 Sets -
Single Phase 5.5KVA Soundproof Diesel Generator CEUS$ 490 - 530MOQ: 100 Sets
-
Home Use 7KVA Silent Diesel Fuel Power GeneratorUS$ 490 - 530MOQ: 100 Sets
-
10kva Three Phase Silent Diesel GeneratorUS$ 432 - 598MOQ: 20 Sets
-
8kva Three Phase 220V Silent Cart Type Diesel GeneratorUS$ 432 - 598MOQ: 10 Sets
| ITEM | OPEN TYPE |
| Type | Revolving Magnetic Field,Self-exciting,2 Poles,Single-phase(or 3-phase) |
| Rating frequency(Hz) | 50/60 |
| Rated AC Output(kVA) | 5.0 / 5.5 |
| Max. AC Output(kVA) | 5.5 / 6.0 |
| Voltage(V) | 110,115,120;220,230,240;110/220,115/230,120/240,(Single Phase)380,400,380/220,400/230(3 Phase) |
| Voltage Regulator | Auto Regulating System |
| Power factor(cos) | 0.8/1.0 |
| Model | LFD186A |
| Type | Air-cooled,Single-cylinder,4-stroke,Direct-injection,Diesel Engine |
| Bore x Stroke(mm) | 86x72 |
| Diaplacement(CC) | 418 |
| Max Power | 10.0/3600 |
| Recommended Fuel | Light Diesel |
| Fuel tank capacity(L) | 12.5 |
| Engine Oil Capactiy(L) | 1.65 |
| Lube Oil | SAE 10-30W |
| Start System | Recoil or Electric/Recoil |
| Operating Hour for 1 Tank Fuel(Hrs) | 7 |
| Noise level(7m)dB(A) | 82-84 |
| Packing Dimension Lx Wx H(mm) | 745x505x655 |
| Gross Weight/Net Weight(kg) | 107/ 105 |
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:What is the Quality Warranty for the products?
A:We offer 1 year quality warranty for all of our products.
3.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, Zhejiang Province, China, about 2 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!
4.Q:What is the material of your products?
A: Only New material can be used for our products.
Materials for Generator: 100% Pure Crankcase, 100% Pure Copper Wire
Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase
5.Q:What is Minimum Order quantity?
A: MOQ 50/100 pieces for different products.
You are welcomed to consult for details.
6.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test,but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.
