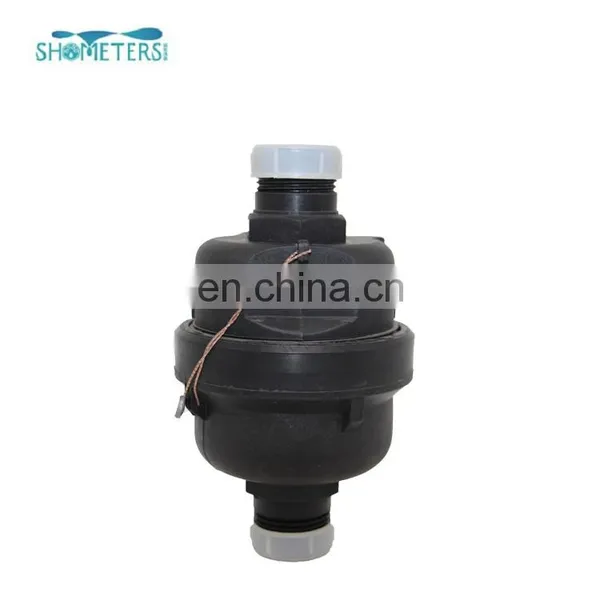

LXHY multiparameter liquid sealed Volumetric plastic water meter for drink
Products shows
Material:Brass body(DN15--40)
Plastic body(DN15--20)
This type of water meter can be used for a remote reading transmission system as
equipped with a built-in sensor.

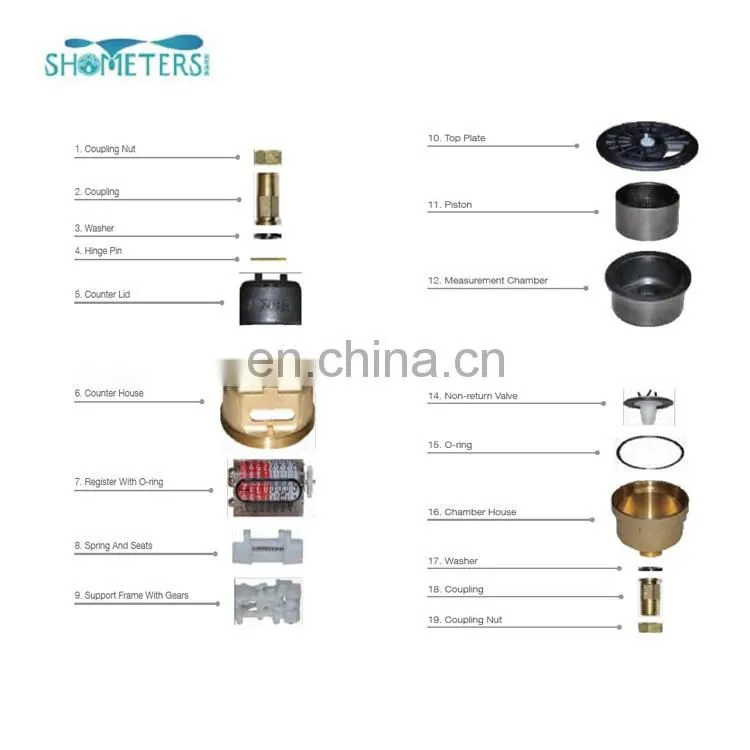

Product Parts
Features
· Low start-up flow rate.
· Volumetric rotary piston principle of measurement.
· LXHY-15~20 is no location limitation for installation.
Accuracy is not to be affected wherever installed at a
horizontal, vertical or inclined pipeline.
· Register is sealed with a special liquid to keep a clear reading
in long term service.
· Mechanism use of high-quality material to ensure a stable
characteristic.
· Accurate measurement with conformity to ISO 4064 class C.
· On request, the series can be equipped with a kind of remote
transmission device.
Pulse Position
| Magnet Position | Liter / Pulse |
| * 0.0001 | 1 |
| *0.001 | 10 |
Operating Condition
· The Max.Admissible water pressure 1.6MPa.
· Resisting water temperature: 50℃.
Main Technical Specifications:
| Description | Unit | Hydraulic Data And Dimensions | |||||
| Nominal Size | mm (inch) |
DN15 (1/2) |
DN20 (3/4) |
DN25 (1) |
DN32 (1-1/4) |
DN40 (1-1/2) |
|

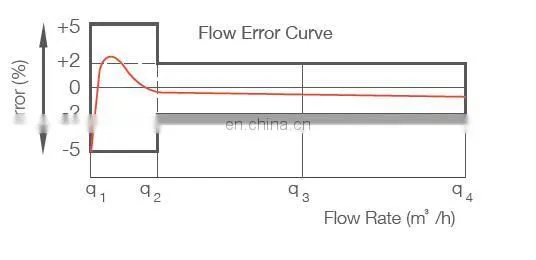

| Q 4 Error Limit±2% | m3 /h | 3.125 | 5 | 7.875 | 12.5 | 20 | |
| Q 3 Error Limit±2% | m 3/h | 2.5 | 4.0 | 6.3 | 10 | 16 | |
| Q 2 Error Limit±2% | l/h | 25 | 40 | 63 | 100 | 160 | |
| Q 1 Error Limit±5% | l/h | 15.6 | 25 | 39.4 | 62.5 | 100 | |
| Min.Reading | l | 0.05 | 0.05 | 0.05 | 0.5 | 0.5 | |
| Max.Reading | m3 | 9999.9999 | 9999.9999 | 9999.9999 | 99999.999 | 99999.999 | |
| MAP | MPa | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| Press Loss P AT Q3 | MPa | ≤0.063 | ≤0.063 | ≤0.063 | ≤0.063 | ≤0.063 | |
| L | mm | 195 | 267 | 319 | 384 | 428 | |
| I | mm | 115 | 165 | 199 | 260 | 300 | |
| B | mm | 43 | 43 | 53 | 60 | 77 | |
| Weight | With Connections | Kg | 1.14 | 1.56 | 2.48 | 3.47 | 5.65 |
| Without Connections | Kg | 0.97 | 1.3 | 2.05 | 2.75 | 4.7 | |

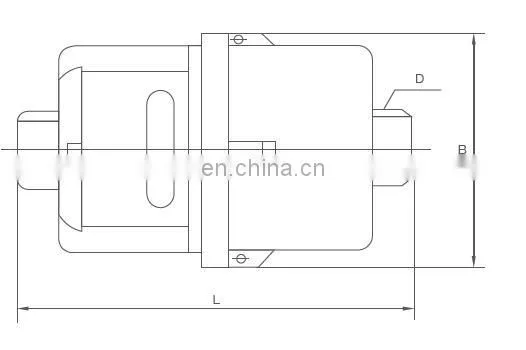

Brass Dimensions:
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date
of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return
to the SH-MECH Meters.
Technical data conform to international standard ISO 4064, and we have more water meter types,such as:
