Measuring Instruments low cost electromagnetic flow meter
1.Products features

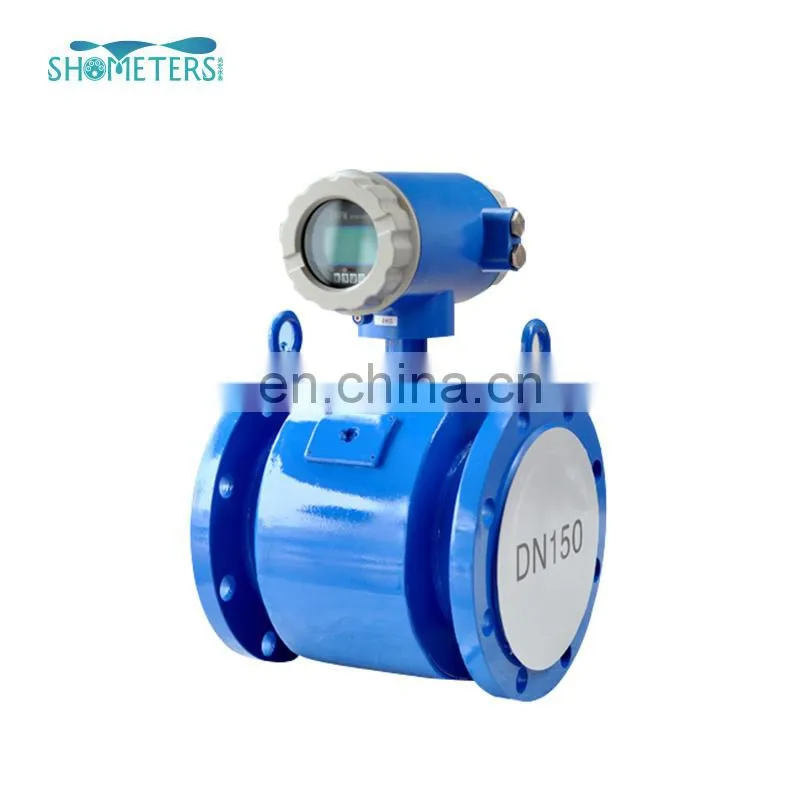

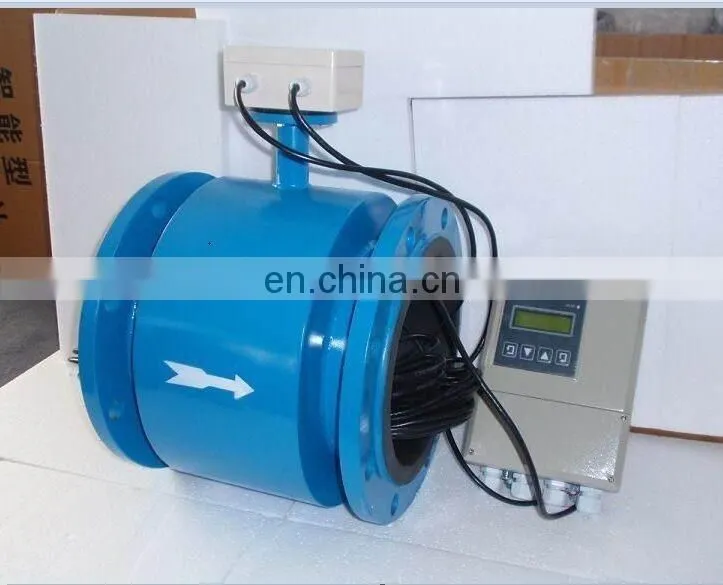

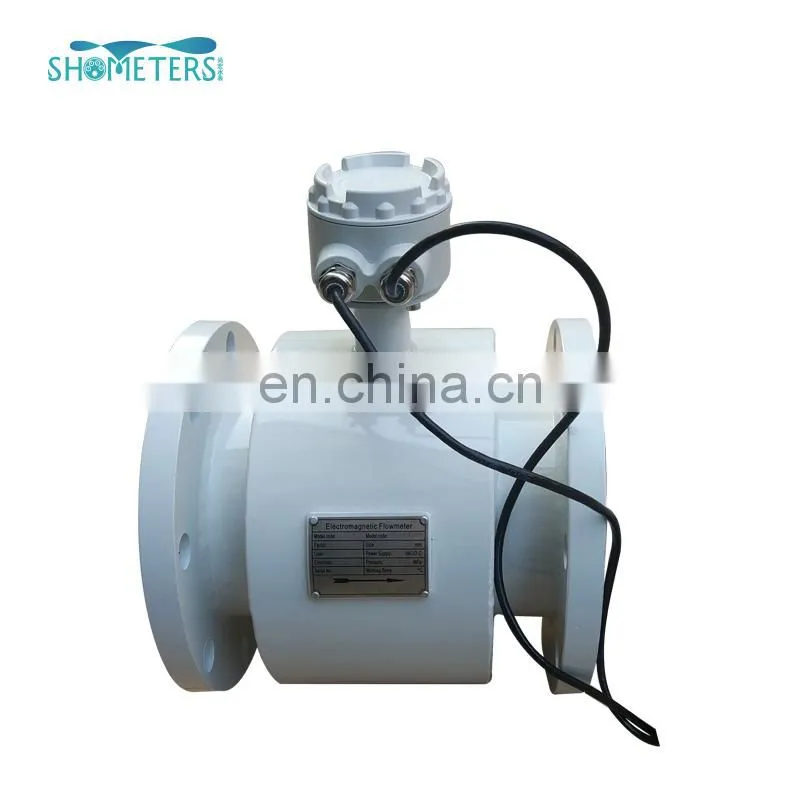

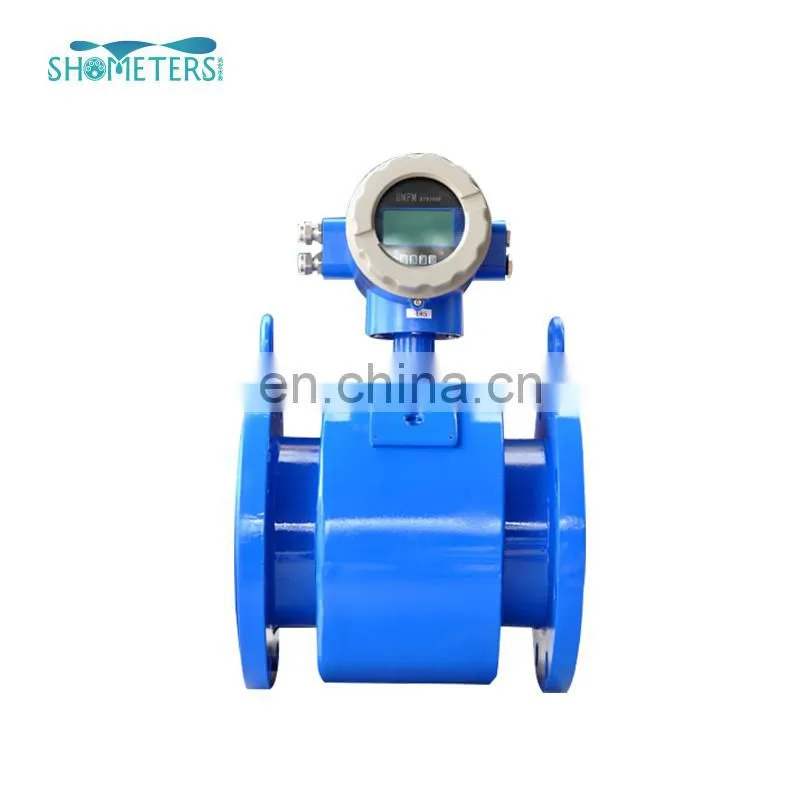

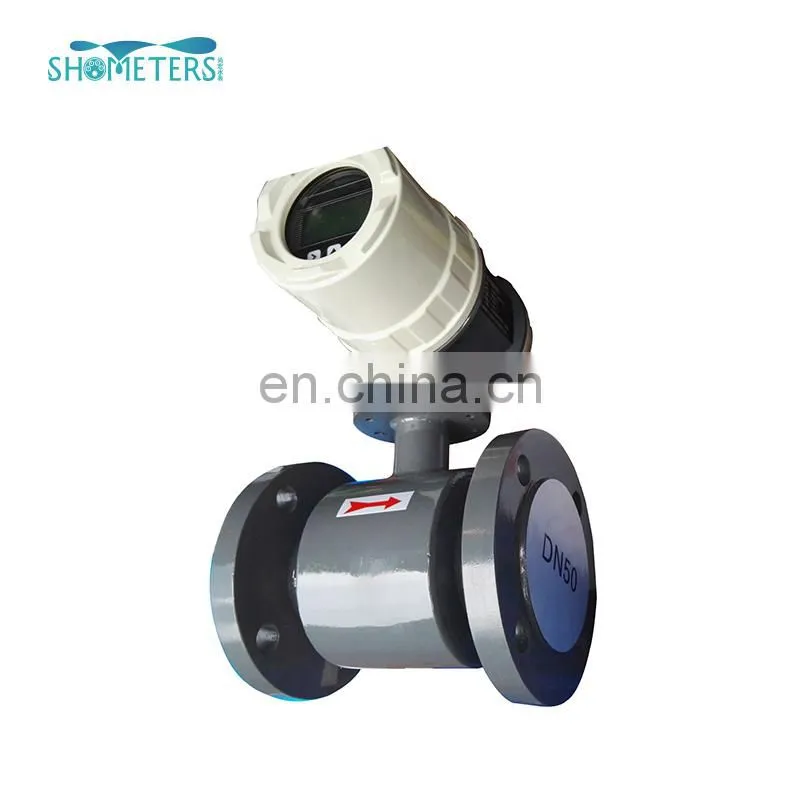

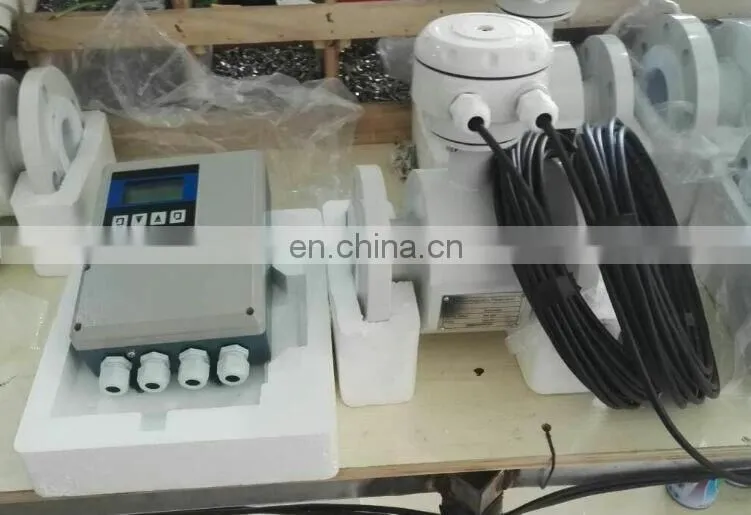

Electromagnetic flowmeter is composed of sensor and converter. It has two forms: compact-type and remote-type. The remote-type also needs a special double-layer shielded cable to connect the converter and the sensor. There are seven kinds of electrode materials and four kinds of lining materials available for sensor.
Technical Specifications |
||||||
|
|
|
|
|
|
|
Peak flow rate |
|
15 m/s |
|
|
|
|
|
|
|
|
|
|
|
Accuracy |
indication±0.5%(flow rate no less than 0.8m/s) |
|
||||
(refer to accuracy curve) |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Conductibility of fluid |
|
≥5μs/cm |
|
|
|
|
|
|
|
|
|
|
|
|
DN15~DN150 |
|
|
4.0MPa |
|
|
Nominal pressure |
DN15~DN600 |
|
|
1.6MPa |
|
|
DN200~DN1000 |
|
|
1.0MPa |
|
||
|
|
|
|
|||
|
DN700~DN3000 |
|
|
0.6MPa |
|
|
Ambient temperature |
sensor |
|
|
-25℃~+60℃ |
|
|
compact flowmeter and converter |
|
-10℃~+60℃ |
|
|||
|
|
|
||||
|
liner material |
Remote-type |
|
Compact-type |
|
|
|
polytetrafluoroethylene |
100℃;150℃(special |
70℃ |
|
||
|
order required) |
|
|
|||
|
|
|
|
|
||
The liner material and |
polyvinyl fluoride |
100℃;150℃(special |
70℃ |
|
||
order required) |
|
|
||||
|
|
|
|
|||
maximum temperature of |
fluorinated |
100℃;150℃(special |
70℃ |
|
||
fluid |
ethylene-propylene(FEP) |
order required) |
|
|
||
|
|
|
||||
|
polychloropree rubber |
80℃;120℃(special |
70℃ |
|
||
|
order required) |
|
|
|||
|
|
|
|
|
||
|
polyurethane |
|
80℃ |
|
70℃ |
|
|
|
|
|
|
|
|
Electrode type |
Fixed type(DN150~DN2600); Blade type(DN300~DN1600) |
|
||||
|
|
|
|
|
|
|
Material of signal electrode |
mo-containing stainless steel,hastelloy B,hastelloy C,titanium |
|
||||
alloy,tantalum alloy, platinum-iridium alloy,stainless steel-coated wolfram |
|
|||||
and grounding electrode |
|
|||||
|
carbide |
|
|
|
||
|
|
|
|
|
||
Flange Material |
|
carbon steel |
|
|
|
|
|
|
|
|
|
|
|
Grounding flange material |
stainless steel 1Cr18Ni9Ti |
|
||||
|
|
|
|
|
|
|
