NAP-56A is not made with thermoplastics to achieve a higher temperature resistivity. The pin locations and dimensions are compatible to NAP-55A for the convenience of current users of Nemoto NAP-55A. The gas sensitivity is better than NAP-55A by about 15%. Users are to pay attention to this higher gas sensitivity upon calibration.
* Target gases & concentration
gases |
Detection range |
|
Methane |
CH4 |
0.05-5% (0.05-2%) |
Ethane |
C2H6 |
0.05-3.2% (0.05-1.5%) |
Hydrogen |
H2 |
0.05-4% (0.05-1.5%) |
Hydro-carbons |
CnH2n+2 |
1-100%LEL (1-50%LEL) |
( ) is a detection range in high accuracy
* Ratings
Item |
Ratings |
|
Supply voltage |
DC 2.5±0.25V AC 2.5±0.25V(RMS 50-60Hz) |
|
Current (2.5V applied) |
DC 150 - 170mA AC 150 - 170mA(RMS 50-60Hz) |
|
Ambient temperature |
In operation -10 ~ +50℃ In storage -10 ~ +50℃ |
|
Ambient humidity |
In operation : less than 95%RH In storage : less than 99%RH (without dew condensation) |

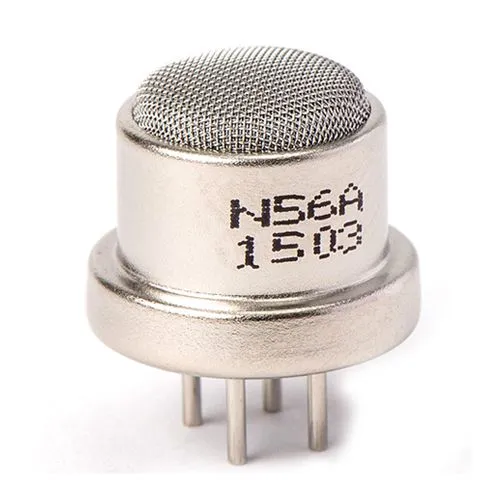

Structure & appearance of NAP-56A
* Gas sensitivity characteristics
Gases and concentration |
Output values |
Output in clean air |
-35~ +35mV |
Methane 3,000ppm |
15~ 23mV |
Iso-butane 1,400ppm |
12~ 18mV |
Hydrogen 1,400ppm |
10~ 17mV |
