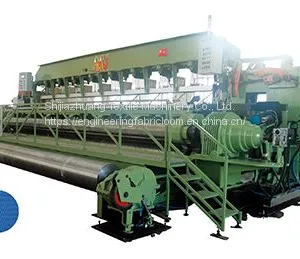

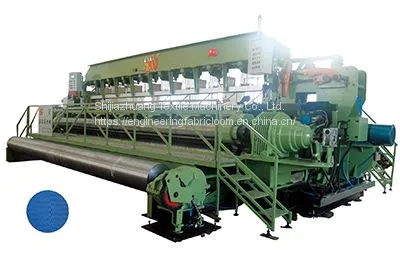

Help CenterCXWT Industrial Screen Loom
Related Products
CXWT Industrial Screen Loom,easy to operate Integral Core Loom,Woven Brake Lining Loom
easy to operate Integral Core Loom
Woven Brake Lining Loom
1、Range of Polyester monofilament: 0.2～1.2mm
2、Weft Density: 40～150 picks/10cm
3、Reed Width: 6300mm-7500mm.
4、Economic Loom Speed: 40-45rpm.
5、Power r: About 50Kw.
6、Weight: Approx. 40～60T.
1、Framework: The main wallboard adopts iron box structure; The Woven Brake Lining Loom installed on the overall base.
2、Main driven: Adopting bilateral motor two-sided coaxial drive.
3、Shedding Mechanism: Adopting bilateral broad knife blade side-drawing dobby device, 10 heald frames.
4、Weft Insertion mechanism: Servo motor drive, rapier weft insertion. 2 weft selection.
5、Beating Up Mechanism: Adopting multi-fissions crank four-linkage weft beating. Crankshaft has variable speed device drive.
6、Take Up Mechanism: Adopting servo motor control three-roller positive take-up.
7、Let-off Mechanism: Adopting servo motor control positive let-off.
8、Web-rolling Mechanism: Independent external central fabric rolling system.
9、Lubrication system: Automatic grease lubrication and manual lubrication.
10、Controlling System: With PLC computer control system, the complete machine can freely set up various parameters and automatically display faults.
