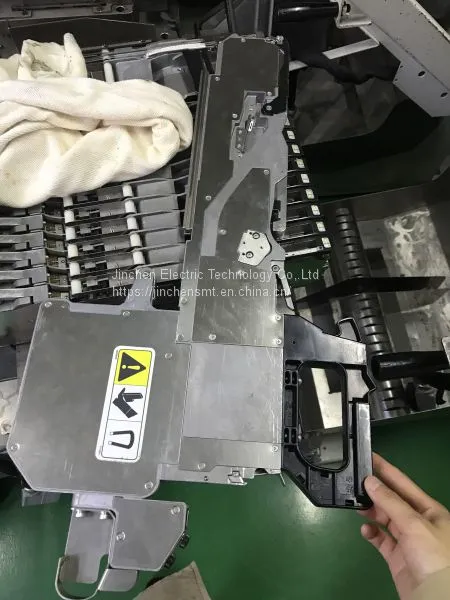

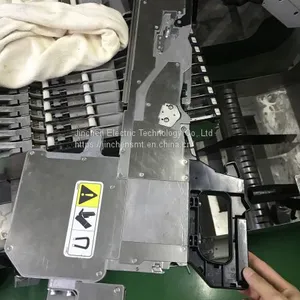

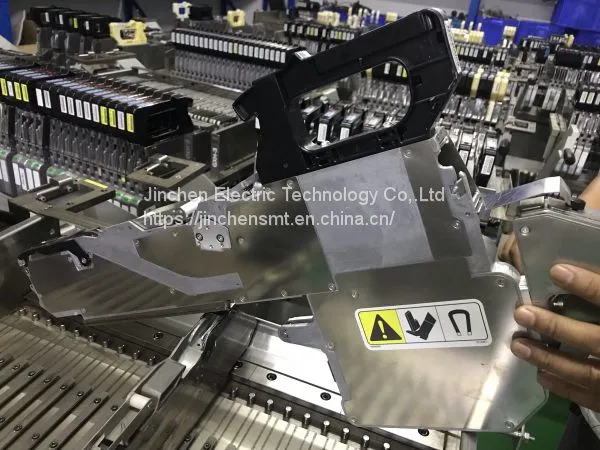

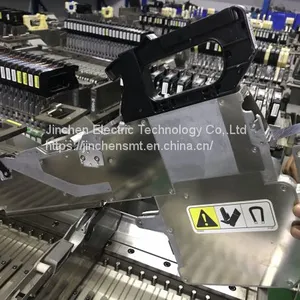

Hitachi CHIP Mounter feeder adjustment JIG JG-0209 for electric feeders
The jig makes it possible to perform the following measurements and write the offset data.
Measurement of Component Pickup Position and Writing of Offset Data for Tape Feeders
Lane Origin Offset (Lanes #1 and #2 for 8mm Tape Feeder)
Offset Data X,Y and Z
Notes: (a) The master tape is required for measurement of the X/Y data
(b)The following apparatuses are required for the measurement of the Z data. These apparatuses are not included in this feeder adjusting jig.
Block Gauge(104MM)
Pry-Type Dial Gauge(0.01MM)
Stand(used for the pry-type dial gauge)
Surface Plate(300 x 300mm or more )

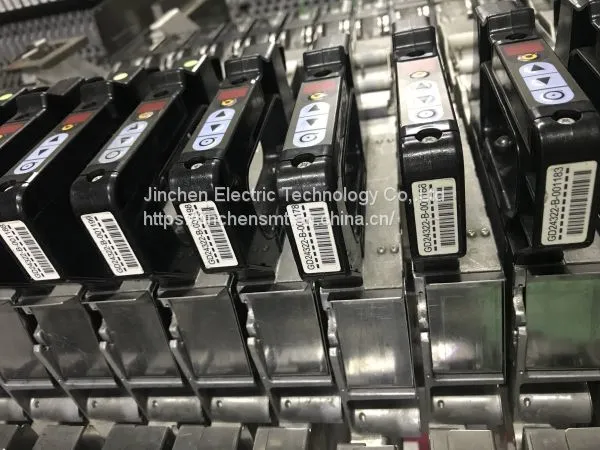

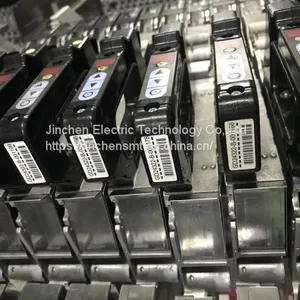

HITACHI SIGMA-G5/G5S/F8/F8S GXH-1/1S/3 machine feeders
8MM GT-38080/GD-38080/GD-38083
8MM GT-28080/GD-28080/GD-28081/GD28083
8MM GT-18080/GD-18080/GT-18081/GD-18081
8MM GT-08080/GD-08080/GT-08081/GD-08081
12/16MM GT-12162/GT-12161/GT-12160
12/16MM GD-12162/GD-12161/GD-12160
24/32MM GT-24322/GT-24321/GT-24320
24/32MM GD-24322/GD-24321/GD-24320
44/56MM GT-44562/GT-44561/GT-44560
44/56MM GD-44562/GD-44561/GD-44560
72MM GT-72002/GD-72002/GT-72001/GT72000
88MM GT-88002/GD-88002
