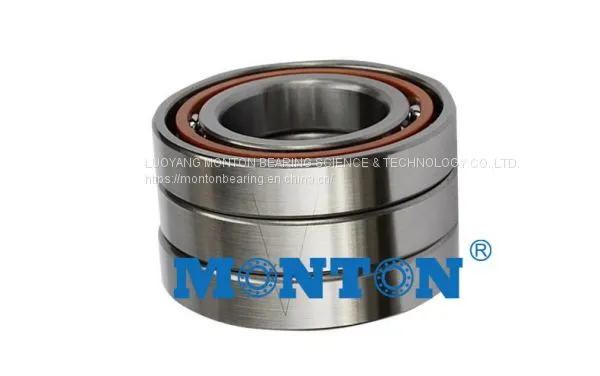

718 / 500C / 71888C Angular Contact Ball Bearing For Axial Loading With One Inner Ring
| Model | Size | 〆15º | 〆25º | Cage Material | ||||
| Limit Speed | Limit Speed | |||||||
| ID | OD | H | ||||||
| Cr Cor | Grease Oil | Cr Cor | Grease Oil | |||||
| 71888C | 440 | 540 | 46 | 159.7 249.15 | 3514 5700 | 150.6 235.23 | 3014 5000 | Copper |
| 71892C | 460 | 580 | 56 | 159.7 249.16 | 3515 5700 | 150.6 235.24 | 3015 5000 | Copper |
| 71896C | 480 | 600 | 56 | 159.7 249.17 | 3516 5700 | 150.6 235.25 | 3016 5000 | Copper |
| 718/500C | 500 | 620 | 56 | 159.7 249.18 | 3517 5700 | 150.6 235.26 | 3017 5000 | Copper |
Feature of Angular contact ball bearings:
When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction. Therefore it is suggested that two of there bearings be applied in back-to-back or face-to-face arrangements. Single row bearings can carry radial load and axial load in one direction. Double-row angular contact ball bearings have two designs of one outer ring and two inner rings and one outer ring and one inner ring. For the design with one outer ring and two inner rings, the axial clearance is easy to control during machining.
Applications:
These bearings are mainly applied in the machine tool spindles, high-frequency motors, gas turbine
Application:
| Engineering machinery, |
| Construction machinery, |
| Metallurgical mining machinery, |
| Marine port machinery, |
| Sewage Treatment Plant; |
| Wind Power Field; |
| Agricultural Machinery; |
| Petrochemical machinery, |
| Filling machines, |
| Engineering vehicles, |
| Military equipment and other industries. |
The main products of our company
1. Deep groove ball bearings
2. Thrust bearings
3. Self-aligned ball bearings
4. Angular Contact Ball bearings,
5. Tapered roller bearings
6. Spherical roller bearing
7. pillow block bearing
8. Shaft pin
9. other auto parts
