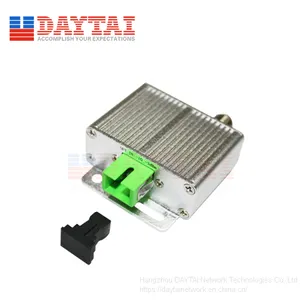

Help CenterMini Type FTTH Fiber Optical Node Receiver
Related Products
-
Patch Cord Type Passive 1 Way FTTH Optical Receiver Node for CATV Digital TVUS$ 1 - 19MOQ: 100 Pieces -
Patch Cord Type Mini Passive FTTH WDM (CATV+PON) Optical Receiver Node for Digital TVUS$ 1 - 19MOQ: 100 Pieces
-
Passive 1 Way FTTH Fiber Optical Receiver Node for CATV Digital TVUS$ 1 - 19MOQ: 100 Pieces
-
Mini Passive FTTH WDM (CATV+PON) Fiber Optical Receiver Node for Digital TVUS$ 1 - 19MOQ: 100 Pieces
-
1550nm Active FTTH WDM (CATV+PON) Optical Receiver Node for CATV Digital TVUS$ 1 - 19MOQ: 100 Pieces
Description

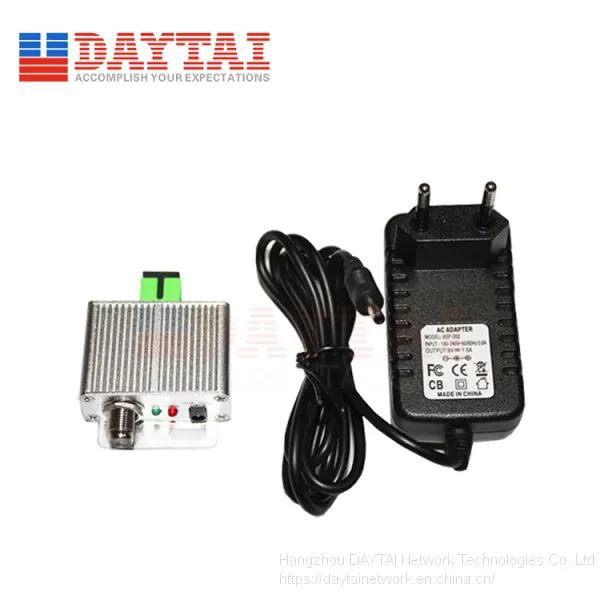

Mini Type FTTH Optical Node/Receiver,Optical connector:SC/APC, RF Connector: F Female connector,Input Optical Power:-18~+2dBm,Optical Receiver Wavelength:1100~1600nm,Optical Retum Loss:>45dB, suitable for: Digital & Anolog TV.
Features

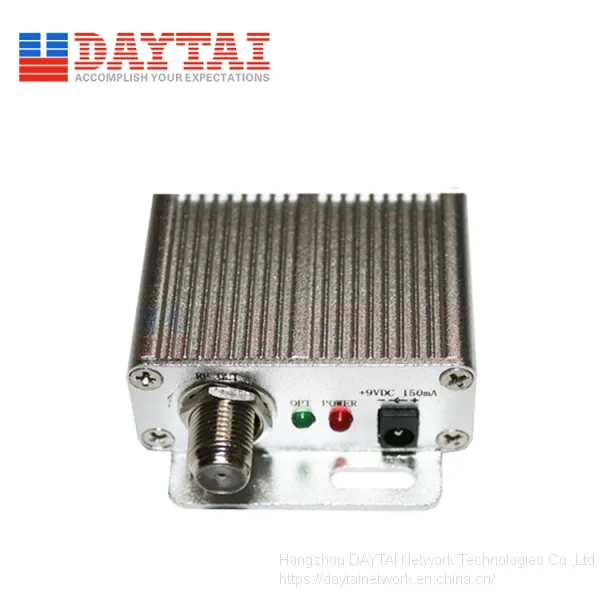

⊙Red-LED Power Indication

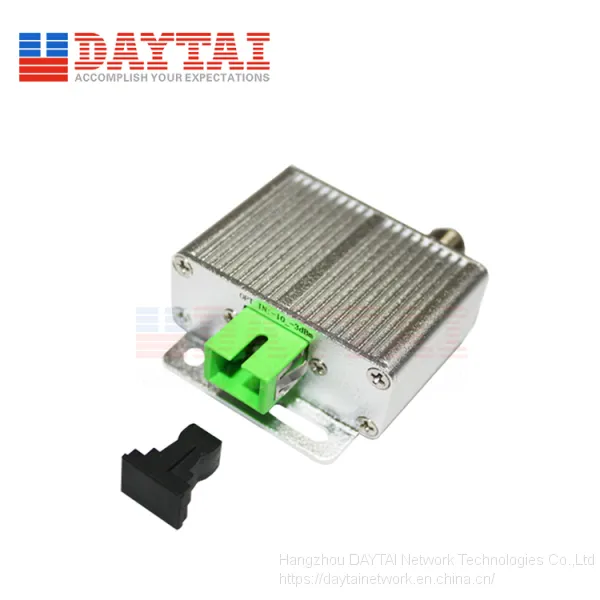

⊙Optical Connector: SC/APC
⊙Voltage supply:+6~18V (DC)
⊙Smaller size and easier install
⊙Excellent Linearity and flatness
⊙Designed For FTTH(Fiber To The Home Network
⊙Frequency range 40-860MHz For CATV End-users
⊙Green-LED Optical Power Indication(Opticalpower>-10dbm)
⊙Aluminum Profiles housing, excellent heat dissipationperformance
Item |
Description |
Remark |
|||
Customer Interface | |||||
RF Connector |
75Ω”F” connector |
||||
Optical |
SC/APC |
Can be Customized |
|||
DC Supply |
DC Adapter |
||||
Optical Parameter | |||||
Input Optical Power |
-18~+2 dBm |
Digital & Anolog TV |
|||
Optical Retum Loss |
>45dB |
||||
Optical Receiver Wavelength |
1100~1600nm |
||||
Optical Fiber Type |
Single Mode |
||||
RF Parameter | |||||
Frequency Range |
40-860 MHZ |
||||
Flatness |
±0.5 db |
||||
Output Level |
83dbuV |
-1dbm input power |
|||
Output Impedance |
75Ω |
||||
C/N |
52 dbc |
-1dbm input power |
|||
Other Parameter | |||||
Power Input Voltage |
DC:+6V~18V |
Factory Supply 9V DC Adaptor |
|||
Power Consumption |
|||||
Dimensions |
57*45*19mm |
||||
Net weight |
0.045KG |
Not including Power Adaptor |
|||

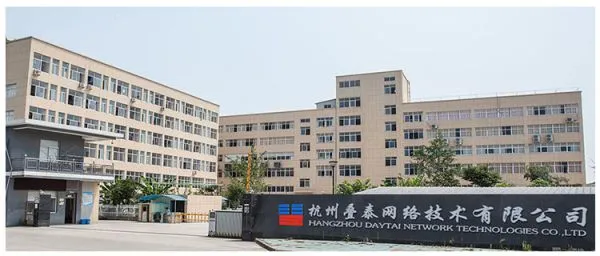

Hangzhou DAYTAI Network Technologies Co.,Ltd is a high-tech enterprise specializing in research development, production in GEPON products,fiber optic communication (FTTH),Digital TV,Cable TV ,Ethernet Networking. Our company was established in 2013 in Hangzhou City,Zhejiang Province,China. We devote to making research and delveloping the newest equipements in the Telecommunication Industry. Constantly screen the Chinese fiber optic and CATV equipment market in a search of the most efficient product solutions available to satisfy your needs. Our major markets includes Chinese mainland , United States, Canada, Korea, France, Germany, Britain, Turkey, Ukraine, Italy, Australia, India, the Philippines, South Africa ,Indonesia,Mexico, Brazil and other countries.
FAQ
Q1: What's the lead time?
Re: Generally about 15-20 days after order confirmed, it depends one the order quantity.
Q2: Can you send sample?
Re: Yes, but the shipping cost will be paid by you, please contact us for more details.
Q3: What's your payment terms?
Re: 30% in advance, 70% before shipping.
Q4: What's the payment method?
Re: T/T, Western Union, Paypal, etc.
Q5: How to ship products?
Re: DHL, UPS, Fedex, TNT, EMS, air transport, ocean shipping.
