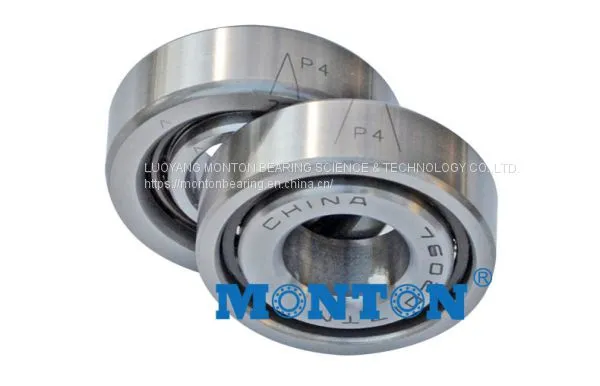

7218 BECBP Single Row Angular Contact Bearing 90X160X30 Ceramic Angular Contact Ball Bearings Manufacturers
US$ 100 - 1000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MONTON
Place of Origin:
China
Model Number:
7218 BECBP
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
Brass Cage 7322 BECBM Angular Contact Ball Bearing For Air Compressor Ceramic Angular Contact Ball Bearings FactoryUS$ 100 - 1000MOQ: 1 Piece -
7219 BEP Angular Contact Ball Bearings Factory Angular Contact Thin Section BearingsUS$ 100 - 1000MOQ: 1 Piece
-
7220 BECBP Single RowAngular Contact Ball Bearings, High Precision Spindle BearingUS$ 100 - 1000MOQ: 1 Piece
-
Spindle Bearing HCB7221-E-T-P4S-UL, 105x190x36mm, Super-Precision Angular Contact Ball BearingUS$ 100 - 1000MOQ: 1 Piece
-
HCB7222-C-T-P4S-UL, 110x200x38mm, Spindle Bearing ,Super-Precision Angular Contact Ball BearingUS$ 100 - 1000MOQ: 1 Piece
Brand Name
MONTON
Place of Origin
China
Model Number
7218 BECBP
Number of Row
Single Row
Seals Type
seals
Precision Rating
P4
Outside Diameter
10, 1000
Bore Size
10, 1000
7218 BECBP Single Row Angular Contact Bearing 90X160X30 ceramic angular contact ball bearings manufacturers
Abutment dimensions
| da | min. | 101 | mm |
| Da | max. | 149 | mm |
| Db | max. | 154 | mm |
| ra | max. | 2 | mm |
| rb | max. | 1 | mm |
Calculation data
| Basic dynamic load rating | C | 116 | kN | |
| Basic static load rating | C0 | 104 | kN | |
| Fatigue load limit | Pu | 4 | kN | |
| Reference speed | 5000 | r/min | ||
| Limiting speed | 5000 | r/min | ||
| Calculation factor | kr | 0.095 | ||
| Calculation factor | ka | 1.4 | ||
| Calculation factor | e | 1.14 | ||
| Single bearing or bearing pair arranged in tandem | ||||
| Calculation factor | X | 0.35 | ||
| Calculation factor | Y0 | 0.26 | ||
| Calculation factor | Y2 | 0.57 | ||
| Bearing pair arranged back-to-back or face-to-face | ||||
| Calculation factor | X | 0.57 | ||
| Calculation factor | Y0 | 0.52 | ||
| Calculation factor | Y1 | 0.55 | ||
| Calculation factor | Y2 | 0.93 | ||
Mass
| Mass bearing | 2.3 | kg |
1. Angular Contact Ball Bearing:
Angular contact ball bearing is particularly suitable for carrying combined (axial and radial) loads. Sometimes, they alsocan carry pure axial load and operate in higher speed. Under radial load, axial component force will be produced which must be counteracted.So the bearing is normally adjust against a second bearing
2. Features:
1) High quality and good service
2) Less friction and low noise
3) Competitive price
4) Quick delivery
5) Small order accepted
6) Excellent antitrust technology
7) Long life
