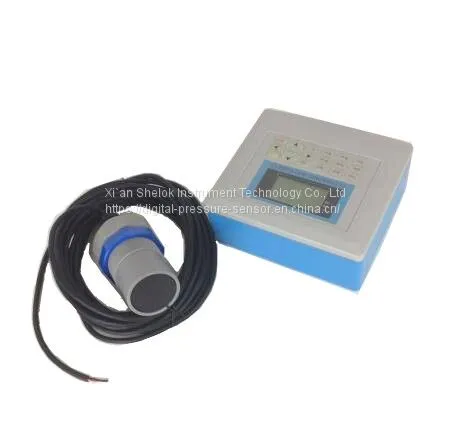

Description of ultrasonic fuel level sensor diesel deep well water tank level meter
YTH-F / FP split wireless ultrasonic water tank level meter produced with our many years experience of level meter production . drawing on a variety of similar products advantages, and the development of a convenient and applicable split ultrasonic level meter, Environmental machine circuit is prone to trouble to worry about. With accurate measurement, reliable work, the appearance of generous and so on. Using large-scale integrated circuits, component chip rate of 90%, to ensure the long-term reliability of the product. While reducing its power consumption to a very low, the use of large-screen display full Chinese menu easy to use, support SD card data acquisition and serial data download, can record ten interference echo points.
Specification of ultrasonic fuel level sensor diesel deep well water tank level meter
Range |
2-30m(optional) |
Blind area |
0.3~ 1.5m |
Minimum display resolution |
1mm |
Frequency |
20 KHz~200KHz |
Accuracy |
±0.3%F.S |
Display |
English bilingual LCD, colourful TFT(option) |
Analog signal output |
0~20mA;4~20mA>300Ω; 0~5V;0~10V |
Sensor material |
10m shielded cable (option the length ) |
Switch output |
2 lines NPN/Relay(AC:5A 250V DC:10A 24V) |
Work power |
DC12—24V or AC220V |
Case Material |
ABS plastics,Nylon |
Interface |
G1 1/2, M60×2 ,M30X1.5 or DN80 non-stander flage(Range 20m-30m) |
Protection grade |
IP65 and EXiaII BT4Gb |
Dimension of ultrasonic fuel level sensor diesel deep well water tank level meter
Sensor dimensions:
Φ65mm×119mm×G1 1/2 (2m range)
Φ74mm×137mm×M60 (5m-15m range)
Φ110mm×194mm×M30 (20m-30m range)
Sensor installation interface:
G1 1/2 (2m range)
M60×2 (5m-15m range)
M30X1.5 or DN80 non-standard flange (20m-30m range)
Applications of ultrasonic fuel level sensor diesel deep well water tank level meter
1.Water industry (pumping stations, biochemical reaction pool, sedimentation tank etc.)
2.Electric power, mine industry
3.Food industry
Features of ultrasonic fuel level sensor diesel deep well water tank level meter
1.International electrical interface easy to take.
2.The sensor is strong and stable for harsh industrial situations.
3.Strong anti-interference
4.4~20MA current output, optional field bus interface
5.Can manually set blind area
6.Support blue-tooth ,GPRS,Mini SD card ,USB ,Mini printer (option)
