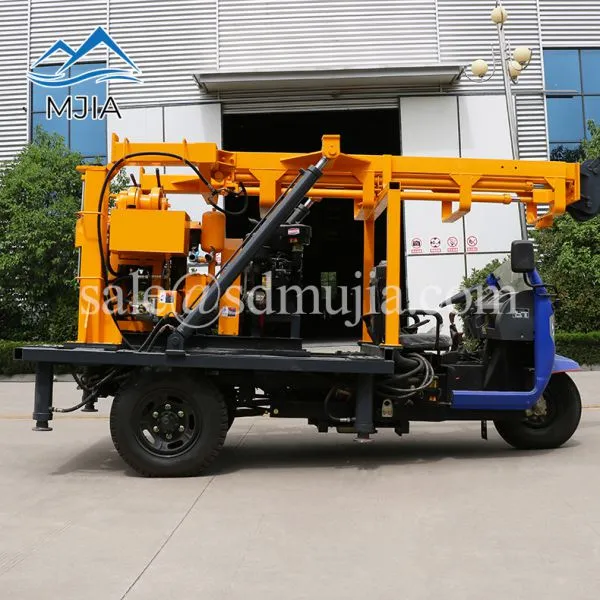

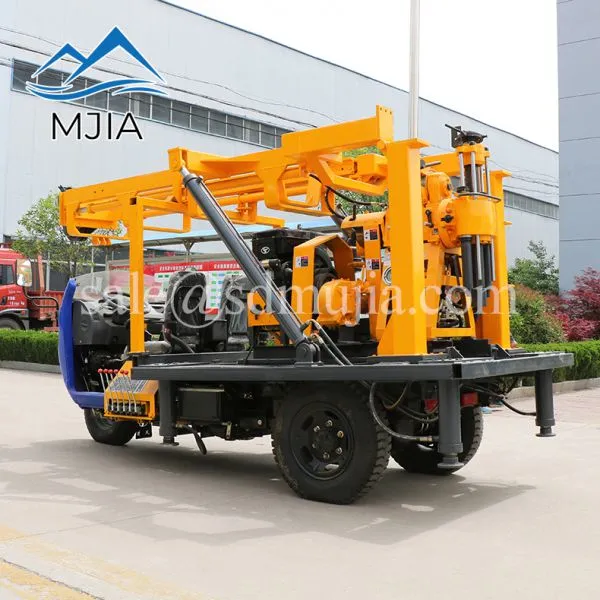

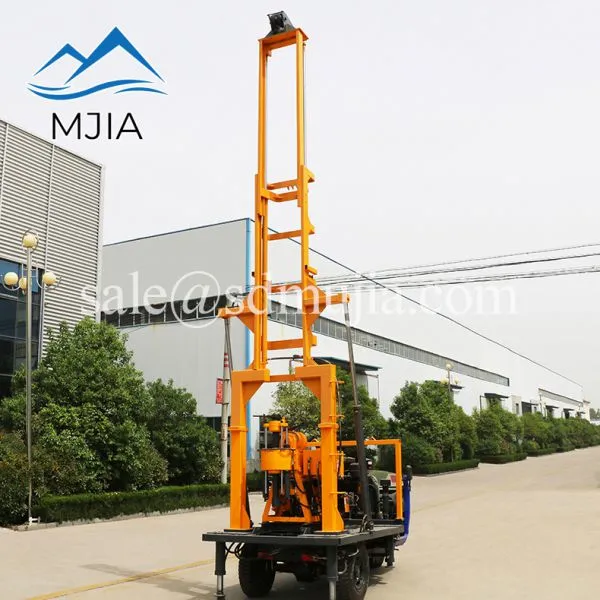

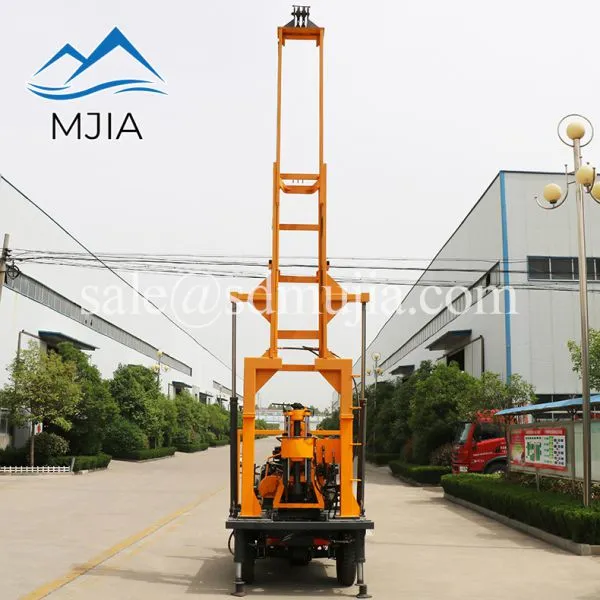

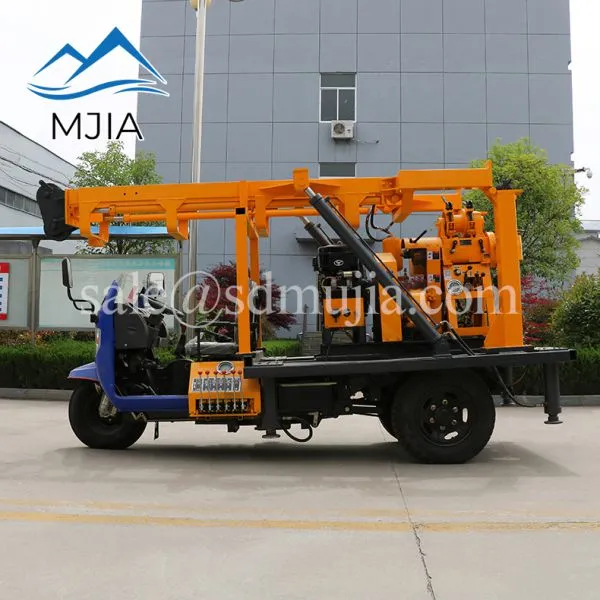

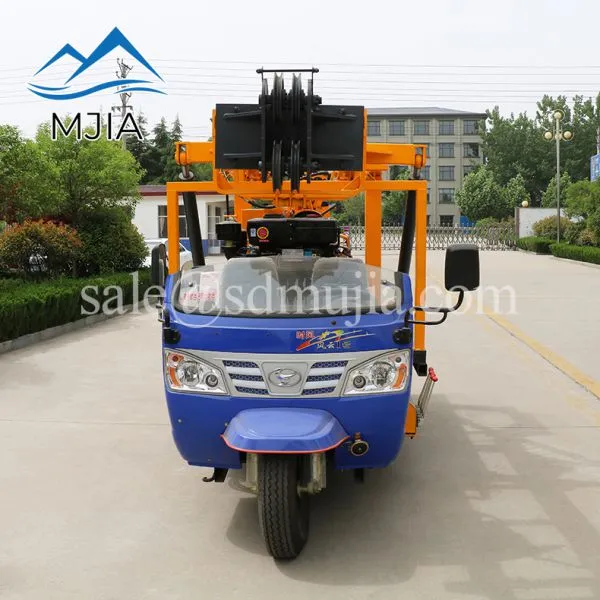

XYC-200A tricycle-mounted water well drilling rig
1. Applications of XYC-200A tricycle-mounted water well drilling rig
l Civil water well
l Geological exploration
l Soil survey
l Road and building exploration
l Mind exploration on the ground
l Blast hole
l Borehole
2. Features of XYC-200A tricycle-mounted water well drilling rig
l The rig is has the full hydraulic control drill mast, which increases drilling safety and efficiency, reduces labor usage and saves cost.
l The rig has the electric engine starter, which allows the machine to work in extreme weather condition.
l The rig has two hydraulic slide tracks, which makes it easier to lift up the rod without opening the gear box. The slide device extends the life span of the rig.
l The hydraulic tube twist machine can be installed, which helps to unload the rod.
3. Specifications of XYC-200A tricycle-mounted water well drilling rig
XYC-200A Unit Parameter | |
Drilling Depth (m) |
200 |
Open Hole Diameter (mm) |
75 - 325 |
End hole diameter (mm) |
75 - 110 |
Drill Rod Diameter (mm) |
50 |
Matching Power (hp) |
22 |
Drilling Angle |
90-75 |
Weight Without Power (kg) |
3000 |
Dimension (m) |
4*1.7*2.3 |
Spindle | |
Rotation Speed (rpm) |
64/128/287/557 |
Feed Stroke (mm) |
450 |
Winch | |
Pull Force (kg) |
1600 |
Pull Speed (m/s) |
0.12 - 0.95 |
Wire Rope Diameter (mm) |
12.5 |
Roll Capacity (m) |
35 |
Mud Pump | |
Model |
BW 160 |
Displacement (l/min) |
160 |
Max. pressure |
1.5mpa |
Inlet Hose Diameter (mm) |
51 |
Outlet Hoese Diameter (mm) |
32 |
Tricycle Chassis | |
Model |
Shifeng |
Emission Standard |
GB19756-2005 (II) |
Rated Power (kw) |
18.3 |
Rotation Speed (r/min) |
2200 |
Any changes of the parameters mentioned above can be made without prior notice.
