One.Product data:

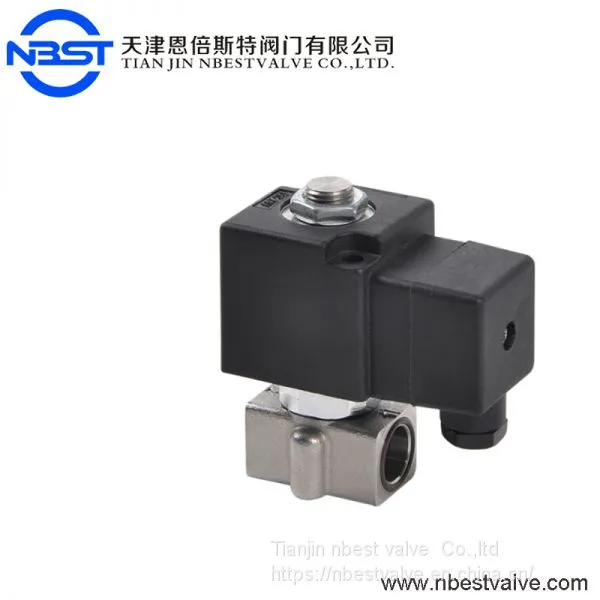

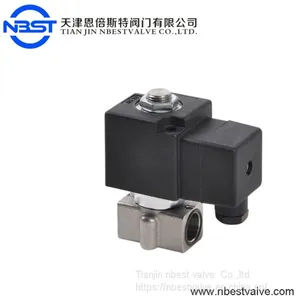

DC12V stainless steel water latching solenoid valve used to automatic irrigation
Characteristic 1.latching coil at low power consumption
2.Applied to washroom,public W.C,automatic irrigation
3.Life span can be over 1 million times
Medium: water,air etc
Temperature : NBR: -10°C to 80 °C
EPDM: -10°C to 120 °C
VITON:-10°C to 150 °C
Pressure: 0.03-1.0Mpa
Port size: 3/8'',1/2'',3/4'',1''11/4'',11/2'',2''
Port Thread: BSPP,BSPT,NPT,Flange,UNF,M8X1
Orifice(mm): 12,15,20,25,32,40,50
voltage: DC-DC6V,12V,24V
Coils: L11B,8/14W(DC) IP65,100% ED
Material: Body- brass, stainless steel
Seal- NBR,EPDM,VITON
Amature tube-stainless steel 304
Plunger-stainless steel430F
Stop-stainless steel 430F
Springs-SS304
Shading rings- stainless steel 304
Two related product:
Three.Company information:
Three.Company profile
Tianjin Nbestvalve Co., Ltd. was established in 2002, headquartered in No.21,No.1 Building, Ronghui Business Zone, Zhongguancun technology Park, Binhai New District, Tianjin, China. With the rapid development of the most dynamic Chinese Bohai Economic Rim, Our company, production, sales and manufacturing test capabilities, with independent import and export rights, is a science, industry and trade as one of the group enterprise.
Four.Aplication Area
a. Domestic sewage treatment.
b. industrial wastewater treatment.
c. industrial irrigation treatment.
Five.Packing and Freight
Six.FAQ
Q: Are you trading company or manufacture?
A: We are factory located in Tianjin, China.
Q: What's your product range?
A: We specialize in product butterfly valves,solenoid valve, gate valves, check valves, Y type strainer, water controlling valves,motorized valves,pneumatic valves,hydraulic valves and other pipe accessories.
Q: What's execution standard?
A: ISO/ANSI/DIN/JIS/EN/GOST standard.
Q: What's your strong product?
A: Concentric butterfly valves, grooved butterfly valves, dual plate check valves.
Q: Do you provide sample? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.
Q: How long is your delivery time?
A: Generally it is 7 days if the good are in stock, or it is 20 days if the goods are not in stock, it is according to the quantity.
Q: What is your terms of payments?
A: Payment ≤10000 USD, 100% in advance. Payment ≥10000USD, 30% T/T or other ways in advance, balance before shipment.
