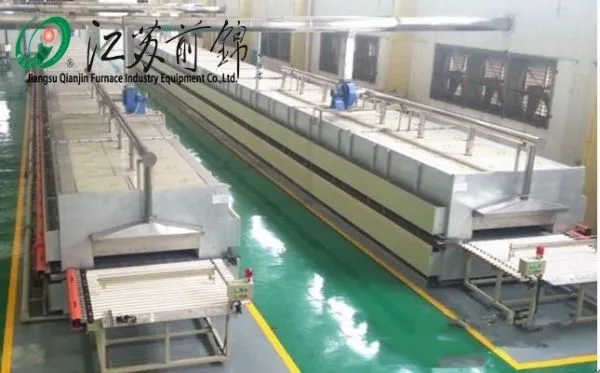

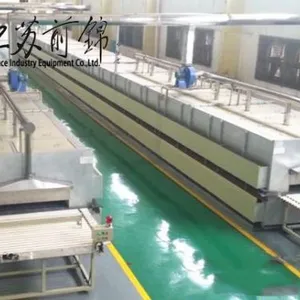

Help CenterRoller Furnace 40M Sintering Roller Furnace for Anode and Cathode Materials of Lithium Battery
Related Products
-
Ternary Material Roller Kiln Powder Raw Material Roller KilnCNY 1880000 - 2000000MOQ: 1 Set -
Roller Kiln With Double Deck Natural GasCNY 5000000 - 6000000MOQ: 1 Set
-
Natural Gas Shuttle Kiln 70m³ceramic Shuttle KilnUS$ 1880000 - 2000000MOQ: 1 Set
-
Ceramic Shuttle Kiln of Natural Gas 26m³CNY 1500000 - 2000000MOQ: 1 Set
-
Tunnel Kiln Natural Gas Ceramic Tunnel KilnCNY 1000000 - 1200000MOQ: 1 Set
Other parameters:
1.Rated temperature:1000℃
2.Operating temperature:850℃
3.Temperature control accuracy:≤±2℃
4.Group count of temperature control: 18 temperature zones,34 temperature-controlled meters,the temperature-controlled meter of each temperature zone can be set with different temperature. Integrated control between temperature zone 1 and zone 2.
5.Operating speed: the whole kiln will be calculated as 17h,40mm/min, speed will be controlled through frequency converter, main transmission will be achieved through frequency changer and needle swing motor.
6.Speed adjustable range: 1000～3500mm/h, it will be set in details according to technological process of product.
7.Mode of heating: electrical heating, installation up and down in the kiln, lateral insertion,easy to replace.
8.Heating element: high temperature resistance wire(place of origin: Jiangsu), the coils are fixed on the ceramic tube.
9.The material of furnace lining: the 1st layer of high-temperature segment in the furnace uses the material of mullite for the fabrication according to the design, then it uses light-weight insulation material and cellucotton as the heat preservation. It uses ceramic cover plate on the upper part of furnace and then adds the fiber cotton as thermal insulation .
10.Thermal insulation material : light-weight standard brick and fiber cotton

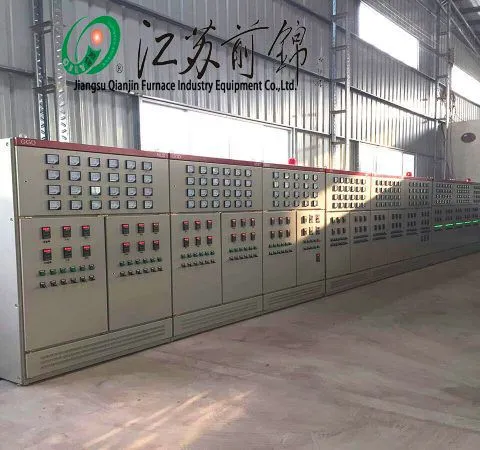

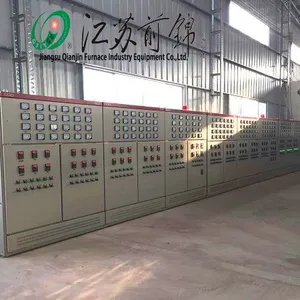

11.Control cabinet : 3 units, IPD adjustment, dimension is 2000x1200x500
12.The structure of equipment: welding and fabrication , connection and assembly on site .
13.Type of cooling: natural cooling +standby fan
14.Speed control : control through 2-stage cycloidal pin motor and frequency changer
15.Thermocouple: 34 pieces of thermocouple, index number of thermocouple is K .
16.The dimension of saggar: 340x340x80mm , 3 saggars are loaded in a row in the furnace .
Thanks for choosing QJ as your reliable partner and trust we will create a brilliant future!
Wish us a pleasant cooperation!
