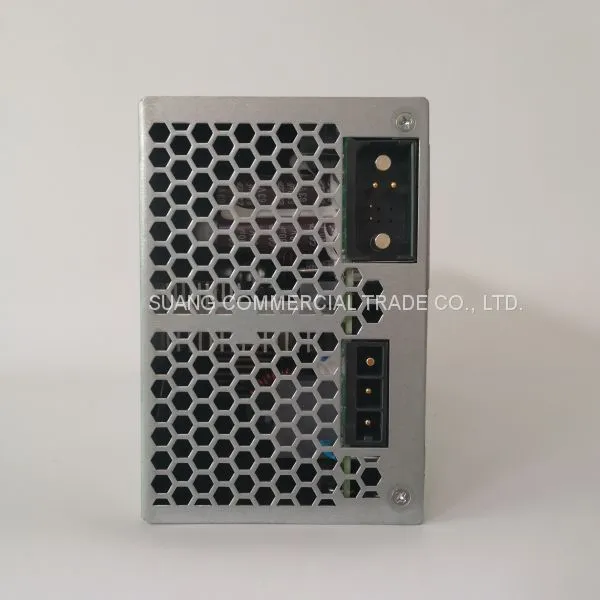

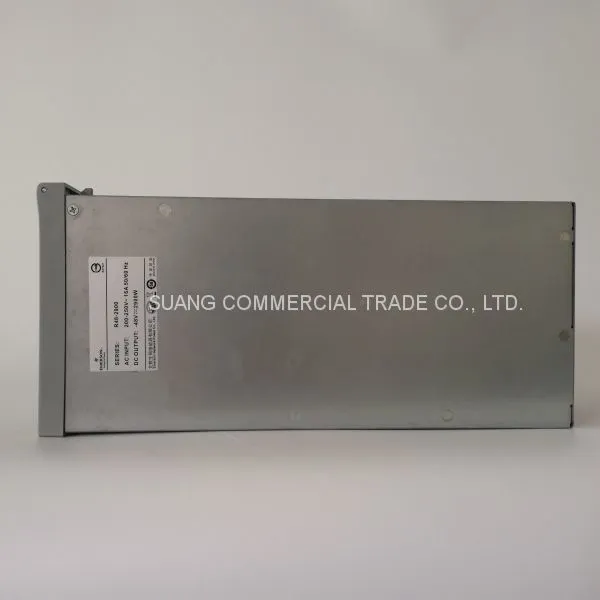

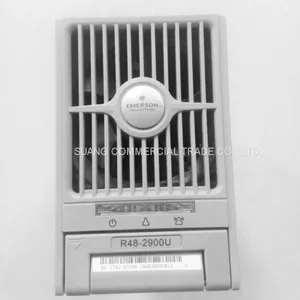

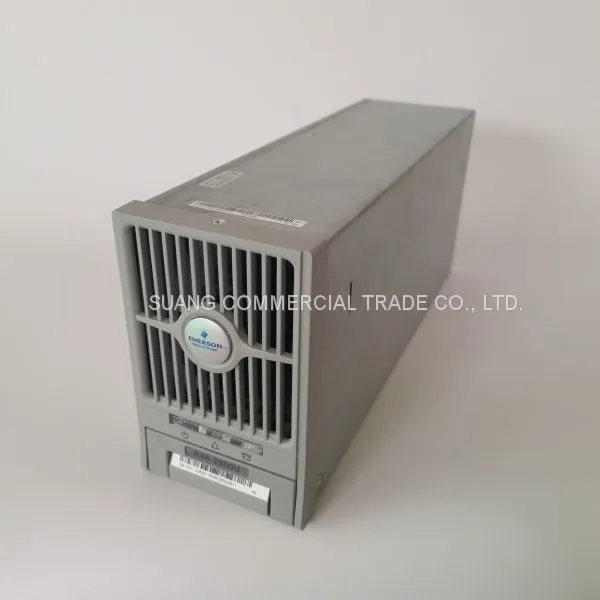

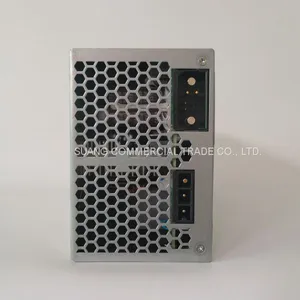

Help CenterNew Original Package Rectifier Module Emerson R48-2900U
Related Products
-
Factory Price 2000 Watt High Efficiency Rectifier Model R48-2000e3US$ 198 - 225MOQ: 1 Piece -
R48-2000A3 New Emerson Rectifier Module for Telecom Power SupplyUS$ 188 - 200MOQ: 1 Piece
-
New Packing Rectifier Module Emerson R48-1800A For Netsure 501US$ 141 - 150MOQ: 1 Piece
-
Hot Sales Huawei Embedded Power Supply Communication PowerUS$ 150 - 180MOQ: 1 Piece
-
NetSure212 C23-S1 DC Power Emerson M225S R48-1000A R48-500AUS$ 160 - 180MOQ: 1 Piece
Emerson r48-2900u power module is a high reliability, high power density, high performance, full digital communication power rectifier module designed by Emerson to meet the network requirements of 3g, fttx, data communication equipment, transmission equipment and access equipment. The maximum output current is 30A and the maximum output power is 2900w.
Emerson 48V/30A communication power module has two models: R48-2900U, R48-3200e, in which R48-2900U is standard rectifier module, efficiency is 92%; R48-3200e is high-efficiency rectifier module, efficiency is 96%. Customers can choose different modules according to the actual situation.

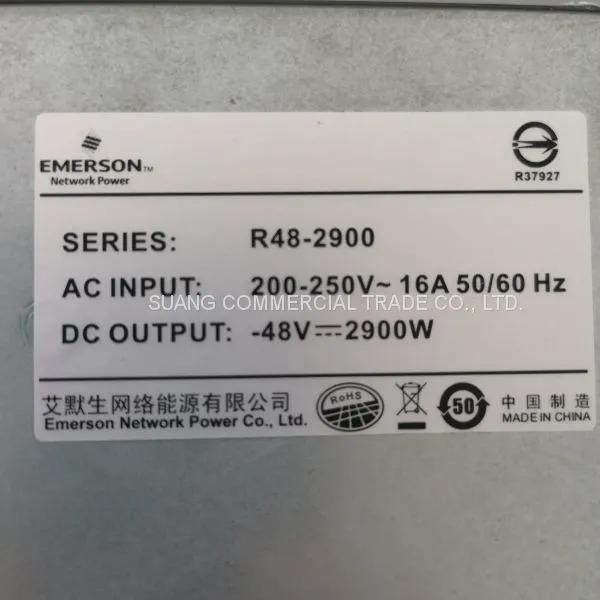

Emerson R48-2900U communication power module, nominal output voltage 48V, nominal output current 50A? For Emerson PS48600-3/2900, PS48300-3B/2900, PS48600-3B/2900 communication power system.
It is suitable for Emerson ps48600-3/2900, ps48300-3b/2900, ps48600-3b/2900 communication power supply system.
1, input voltage wide range of power limit: power derating input voltage range: 85Vac ~ 176VA
2, do not work under static voltage: 415Vac
3. Rated input current:
4, input current:
5. Input impulse current:
3, hot swap, adaptive
4, double temperature limit power, over temperature protection
5. Difference between DSP Software Current Sharing and Average Current
6, overvoltage shutdown, automatic restart.
7, hardware overvoltage protection:
8, - 59.5V. It needs manual start.
9, software overvoltage protection
10, - monitoring settings: 56-59V
11, there are two kinds of software overvoltage protection modes, which can be selected through background maintenance software.
12. A. overvoltage lockup mode.
13. When the output reaches the software protection point, the module shuts down and maintains, requiring manual intervention to resume work;
14, B. two overvoltage lock mode.
15. When the output reaches the software protection point and the output current is greater than 5A, the module restarts after 5 seconds of shutdown. If the second overvoltage occurs within the set time (default is 5 minutes, can be set), the module shuts down and maintains, requiring manual intervention before starting.
16, - if the rectifier module output current is less than 5A (rated output 10%), the rectifier module does not turn off.
17. - Artificial intervention: Reset the rectifier module by the monitoring module, or disconnect the rectifier module from the power system.
18. Slow start of current.
Lead time:
We have a lot of stock ,If the quantity isn't very big , we can send the goods as soon as possible after recieve payment.If big quanity, the lead time need according to the quantity.
Transporting:
If small quantity, usually send by courier (DHL,FEDEX,TNT and so on) . If big quantity, we advice ship by air or by sea. this will use longer time ,but cheaper fees. We are near the port of TianJin.
Our service:
We can offer the sample. If the quality is good, we can offer very very competitive price .And can pack according to customer's requirment.
1. Could i put my own logo on it?
> Sure, of course,we have over 18 years OEM experience,customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2. Should i pay extra for logo printing ?
> If you order amount over out MOQ for OEM package,all OEM fees would be free,if you want to make a trial order,we need to charge a very little fees for the printing and cartons.
3. How about the quality?
We import DU POND brand PA66 nylon raw material from USA,we make sure good quality from the most important factor.
> Acquire the CE & FDA Certification.
> 100% QC in produce process and before package.
4. Could i buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition.
5. How much for 1pc sample ?
> we will send 1 bag for free
6. If i have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
7. How long to make a sample?
> 3days which depends on the samples' complexity.
