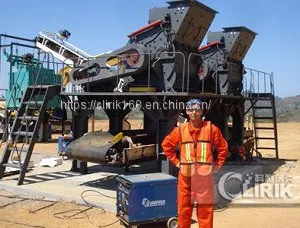

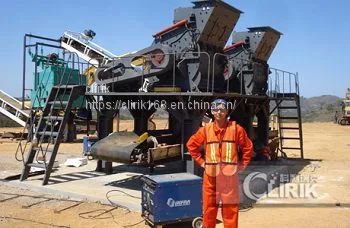

Help CenterStone European Version Coarse Grinding Mill
Related Products
-
74-5 Micron Stone Powder Making MachineUS$ 42000 - 180000MOQ: 1 Set -
HOT SALE Pulse Bag Filter in ChinaUS$ 42000 - 180000MOQ: 1 Set
-
5-47 Micron HGM100 Stone Pulverizing MachineUS$ 42000 - 180000MOQ: 1 Set
-
Asbestos Pulverizing Grinding MachineUS$ 42000 - 180000MOQ: 1 Set
-
Zirconium Silicate Stone Powder Grinding Mill Equipment for SaleUS$ 42000 - 180000MOQ: 1 Set
Application of European Version Coarse Grinding Mill:
Coarse vertical grinding mill is engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into coarse powder and small particles, it is widely used in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries.
Working principle of European Version Coarse Grinding Mill:
Coarse vertical grinding mill mainly consists of frame, rotor, support iron and grate bars. The frame is divided into two parts: upper part and lower part, which are welded by steel plates after being cut. Liners made of high manganese steels within the frame can be replaced after being worn out. The rotors consist of turn plates, pin shafts, and hammers which are grouped regularly in the main shaft. The main unit drives the main shaft through the motor and triangle belts, which, in turn, rotates the rollers. Large materials entering the crusher through the feed inlet are firstly crushed by the high-speed hammers, and then thrown fiercely to the support iron for further crushing. Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the grate bars. The gap between the rotors and the grate bars can also be adjusted according to different requirement. To avoid the plugging of the crusher, the proportion of water for the crushing materials is no more than 20%.
The features of European Version Coarse Grinding Mill:
The technical data of European Version Coarse Grinding Mill:
| Type | PC4008-75 | PC40012-90 | PC40015-132 |
| Rotor Diameter/mm | 750 | 900 | 1150 |
| Rotor Width/mm | 800 | 1200 | 1500 |
| Rotor Speed r/min | 800-1000 | 800-1000 | 550-800 |
| Feed head size/mm | 320*930 | 400*1200 | 500*1500 |
| Feeding Size/mm | ≤50 | ≤60 | ≤80 |
| Finished Size/mm | ≤3 | ≤3 | ≤8 |
| Capacity t/h | 10--30 | 30--60 | 50--100 |
| Powder/kw | 55-75 | 75-90 | 110-132 |
| Hammer Number (piece) | 18 | 32 | 32 |
| Overall Size L*W*H/mm | 2310*1665*1610 | 2840*2100*2020 | 3720*2650*2700 |
Should you have any questions, please do not hesitate to contact me.
Phone:+8615993021269
wechat:15993021269
qq:2937596967
