Track Pneumatic Well Drill FY200 Hot Spring Well Large Pneumatic Well Drill Machinery Large Power Civil Water Well Drill Rig
US$ 18200 - 19000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
huaxiamaster
Place of Origin:
China
Model Number:
FY200
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
5 days
Related Products
-
FY260 Crawler Type Pneumatic Well Drilling Machine Follows 260 Meters Water Well Track Pneumatic DTH Drilling Rig While DrillingUS$ 20000 - 23100MOQ: 1 Set -
Export FY300 Crawler Air Compressor Pneumatic Water Well Drilling Machine 300 Meters Deep Hole Water Well Drilling MachineUS$ 26000 - 28500MOQ: 1 Set
-
Supply Export FY400 Water Well Drilling Rig in Low Price 400 Meters Deep Portable Civil Engineering Geothermal Water Well RigUS$ 36000 - 40000MOQ: 1 Set
-
FY600 Type Ground Temperature Drill Machinery Deep Hole Crawler Type Pneumatic Well Drilling Rig Suitable for Industrial DrillingUS$ 35000 - 38000MOQ: 1 Set
-
on Promotion Pneumatic DTH Drilling Rig KQZ-180D/household Well Drill Machine for Sale Quality GuaranteeUS$ 4000 - 4300MOQ: 1 Set
Brand Name
huaxiamaster
Place of Origin
China
Model Number
FY200
Type
Rotary Drilling Rig
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
6 months
Weight
4.6T
Dimension(L*W*H)
3800*1600*2450MM
Power Type
Diesel
Usage
Water Well
Condition
New
Power(W)
65KW

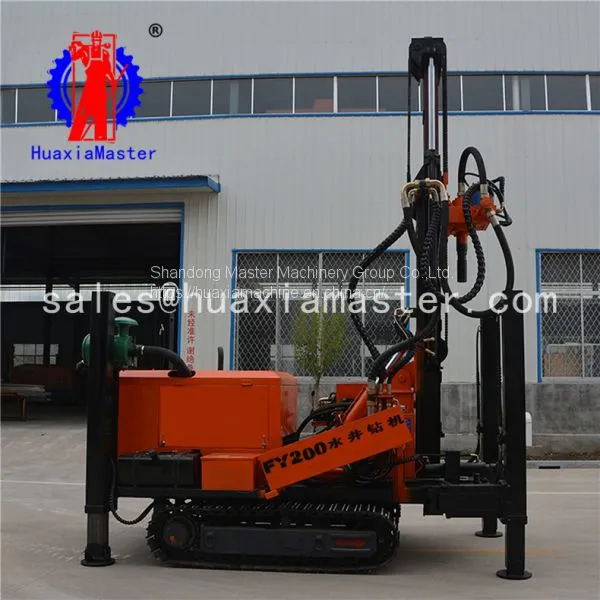

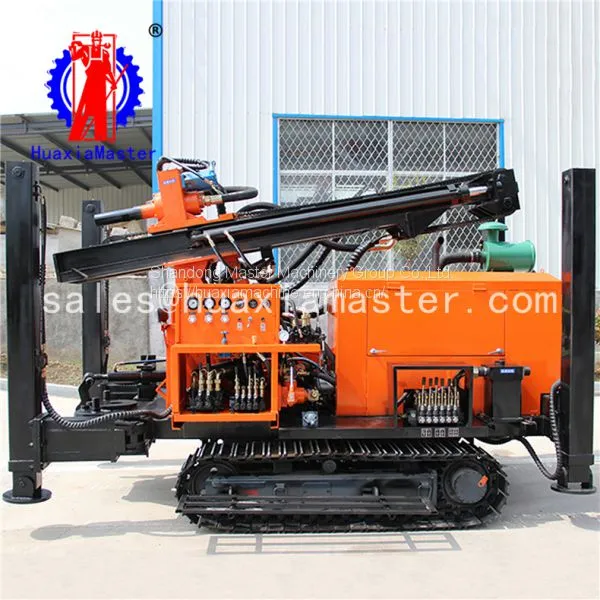

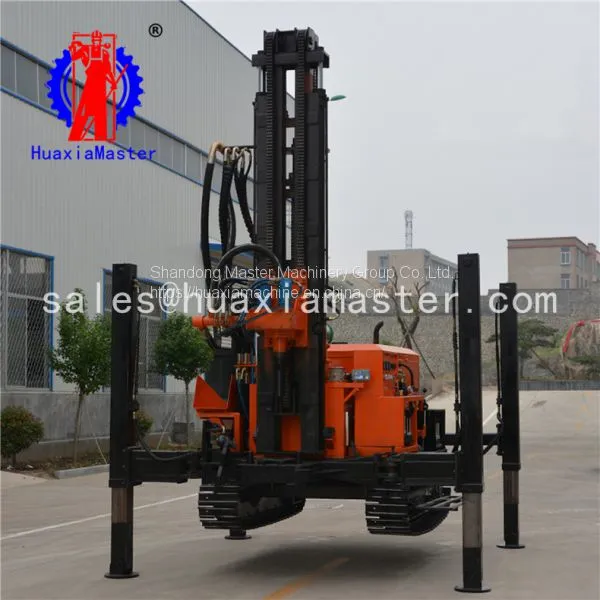

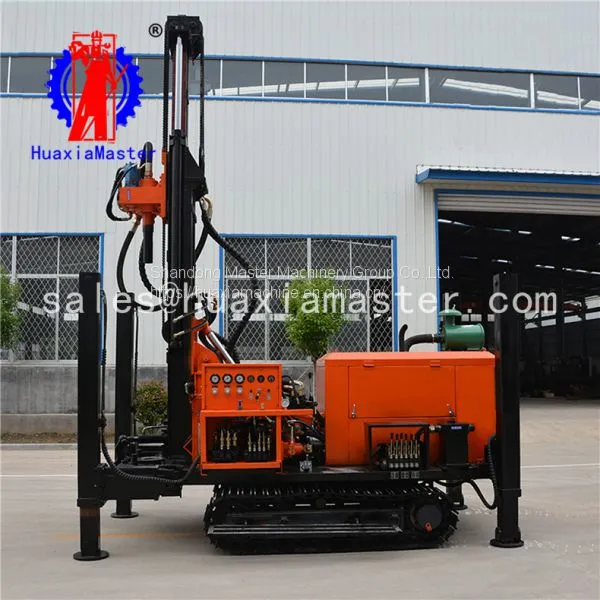

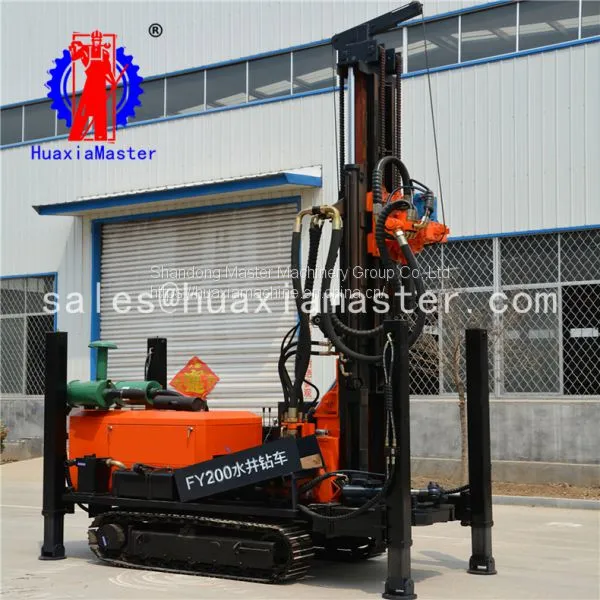

FY200 crawler pneumatic water well drilling rig
1. The applications of FY200 crawler pneumatic water well drilling rig
civil engineering drilling
geothermal drilling
drilling with large diameter
deep drilling footage
-
fast, flexible and efficient.
2.The specifications of FY200 crawler pneumatic water well drilling rig
Model |
FY200 |
|
Gross weight |
t |
4.6 |
Dimension |
mm |
3800*1600*2450 |
Aperture |
mm |
140-325 |
Drilling depth |
m |
200 |
Feed stroke |
mm |
3000 |
Travel speed |
km/h |
2.5 |
Grade ability |
max. |
30° |
Rising height from ground |
mm |
250 |
Wind pressure |
mpa |
1.7-3.0 |
Air consumption |
m³/min |
17-35 |
Engine power |
kw |
65 |
Rotary speed |
rpm |
50-70 |
Rotation torque |
n.m |
5000-6500 |
