Help CenterMarine Rubber Pneumatic Fender for Ship Operation
Related Products
-
Yokohama Type Ship Pneumatic Fender for Bunkering ServiceUS$ 3000 - 3500MOQ: 1 Piece -
ISO17357 Yokohama Type Pneumatic Marine Rubber Fender for Ship to QuayUS$ 3000 - 3500MOQ: 1 Piece
-
Marine Large Yokohama Type Pneumatic Rubber Fender for STSUS$ 3000 - 3500MOQ: 1 Piece
-
1.5m*3.0m Marine Mooring Yokohama Type Fender for SaleUS$ 3000 - 3500MOQ: 1 Piece
-
Floating Dock Pneumatic Fender for Port BerthingUS$ 500 - 2000MOQ: 1 Piece
Floating pneumatic fenders have been in use for around 50 years.It is the leading anti-collision device for marine application in the world. The compressed air filled rubber fender is used as a protective medium for ship-to-ship, ship to quay and ship-to -berthing.
Floating pneumatic fenders can be delivered in various sizes and types. Chain and tyre net(CTN) type is usually recommend to protect the fender body, but sling type or body only is also available.
Florescence brand Pneumatic Rubber Fender are exported to many countries like Vietnam, America, Denmark, Finland, Indonesia, Singapore, Philippines, France and more. High product quality and reasonable costing drives their adoption in the global market and are increasingly preferred as the most popular replacement to Yokohama fenders.
3 Lower mooring forces
4 Adaptable to the tide
5 Low maintenance cost
6 Low reaction force and hull pressure
7 Most cost competitive system
8 Simple and low cosy installation
9 Various optional fitting
10 Advange against shearing force
1.Net-type fender: fenders which are covered by a tire chain net, each end shall be linked together with one to two ring(s).
2.Sling-type fender: fenders which are designed to be used without a protection net.
Test of ship dock pneumatic fender for boat berthing
The material test of the outer rubber and the inner rubber shall be conducted in accordance with the physical properties of inner and outer rubber required by ISO 17357:2002
2.Dimensional inspection
The dimension of all the fenders shall be inspected at the initial internal pressure and the results shall be within the following tolerances:
- length: +10%, -5%;
-diameter: +10%,-5%
3.Air-leakage test
The air-leakage test shall be conducted on all the fenders at initial pressure for more than 30 min, and the test results shall confirm that there is no air leakage.
4.Hydrostatic-pressure test
The hydrostatic-pressure test shall be performed for 10 min at the hydrostatic-pressure shown in "test pressure at 0% deflection". Maximum temporary elongation: 10%.
Pneumatic fender project case

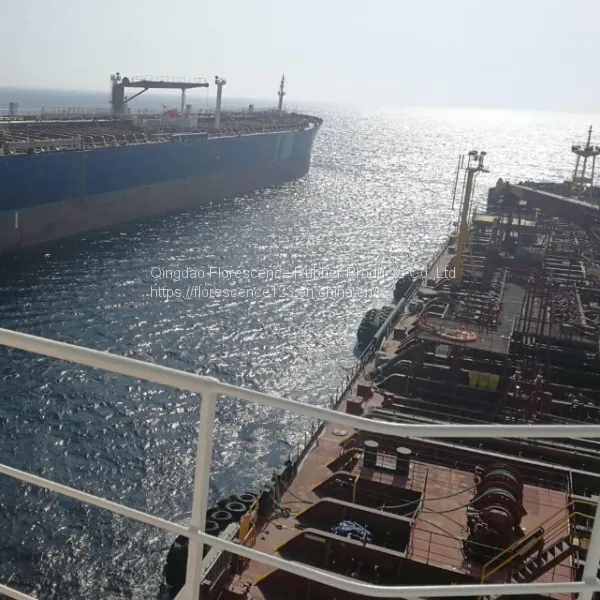

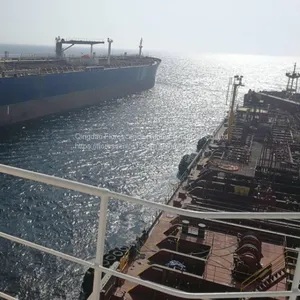

1.Pneumatic Fenders Use For STS Operation In Russia
Qingdao Florescence 15pcs Dia3.3m L6.5m pneumatic fenders used for oil tanker in Russia since 2017. Pneumatic fenders worked well and played a great role during STS operation.
2.Pneumatic Fenders Use For Dock In Lithuania
Qingdao Florescence recommends Dia2.5m L3.5m pneumatic fenders based on customer's ship and dock information. Customer used pneumatic fenders for ship to dock service in 2018 and used for ship to ship operation in 2019.
3.Dia1.5m L3.0m pneumatic fenders use in Mexico
Dia1.5m L3.0m pneumatic fenders were used for ship to ship service in Mexico. And will use for dock during ship berthing. Fenders are commonly fitted with a chain-tyre net for added protection. They were developed in order to extend the range of usage of pneumatic fenders and enable them to be used for docks.
