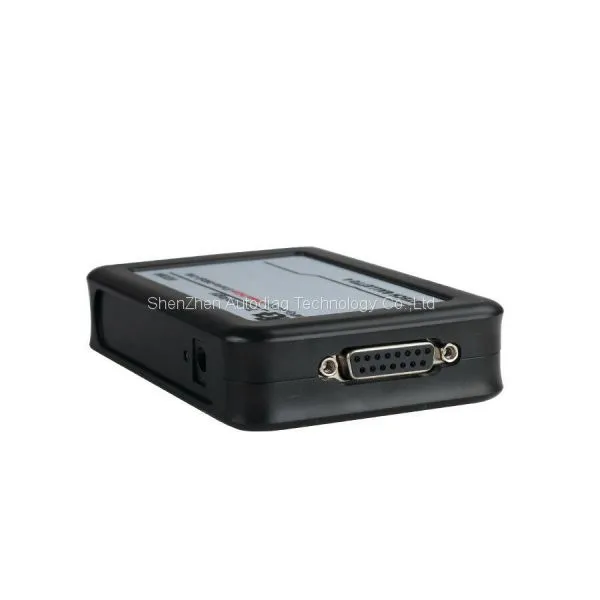

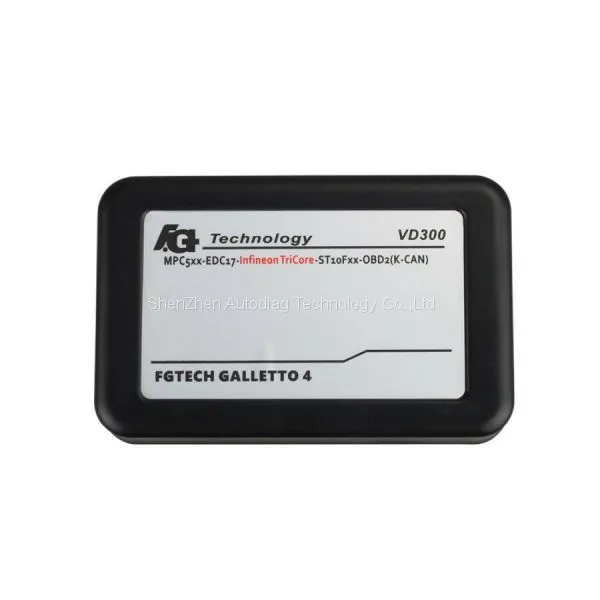

Latest Version V54 OBD2 VD300 FGTech Galletto 4 Master BDM-TriCore-OBD Function
US$ 30 - 45
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
autodiagtech
Place of Origin:
China
Model Number:
vd300
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
4 days
Related Products
-
OBD SBC Reset Tool Fit for Mercede Benz W211/R230 ABS/SBC Tool Repair Code C249US$ 25 - 39MOQ: 1 Piece -
Mtool STool V1.46 ONLINE VERSION Mileage Correction TOYOTA FORD TRANSIT CUSTOM by OBDUS$ 190 - 205MOQ: 1 Piece
-
El-50448 Car Auto Tire Pressure Monitor Sensor OEC-T5 For GM/Opel TPMS Activation Reset Tool Diagnostic Tools Car RepairingUS$ 5 - 9MOQ: 1 Piece
-
Launch EasyDiag 3.0 OBDII Code Reader Bluetooth Android Scanner OBD2 no Extended Cable Diagnostic Tool X431 Easy Diag V3.0US$ 175 - 199MOQ: 1 Piece
-
ME9.7/272-273/ Renew Cable ECU Programming for Mercedes Benz New ECU ME9.7/272-273/ Renew Cable For KTM100 KTAG ECU Programming OBD CableUS$ 28 - 35MOQ: 1 Piece
Brand Name
autodiagtech
Place of Origin
China
Model Number
vd300
Type
Code Reader
Certification
CE
Voltage
24V
Power
12v
Warranty
12
Applicable Models
for all cars
Latest Version V54 OBD2 VD300 FGTech Galletto 4 Master BDM-TriCore-OBD Function
| for more information and details,contact our sales skype berylliu3 or whastapp +8619926672802 |
VD300 V54 FGTech Galletto 4 :
1. Latest Version: V54
2. Supported Operating System: Windows XP, more friendly than Fgtech v53 , much easier to operate
3. Unlock Version: Can Use Directly. No Need To Activate
4. FGTECH V54 PCB board
5. Supported Languages: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish
6. Support Tricore Function

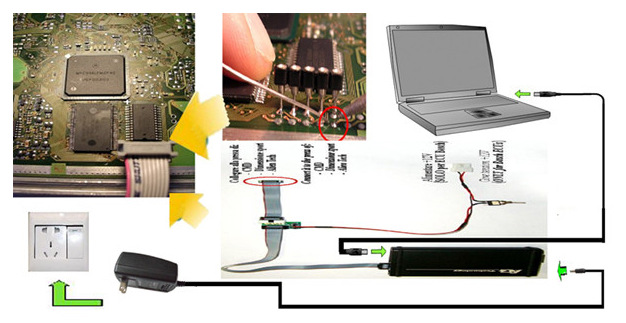

FG Tech Galletto BDM Connection:
FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode, checksum.
V54 FGTech Galletto 4 Boot Mode System:
NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF
New Delphy DCM3.5xx DCM3.7xx TRW
Motorola Freescale MPC 555/556/561/562/563/564/565
Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
Motorola MC 68376 Campi 01 Lamborghini - Lotus
Motorola MC 68336 MEMS D5 ROVER
Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu
V54 FGTech Galletto 4 Automatic Checksum:
All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens
Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
Motorola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM
5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,
FGTech Galletto 4 Master Version:
Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time

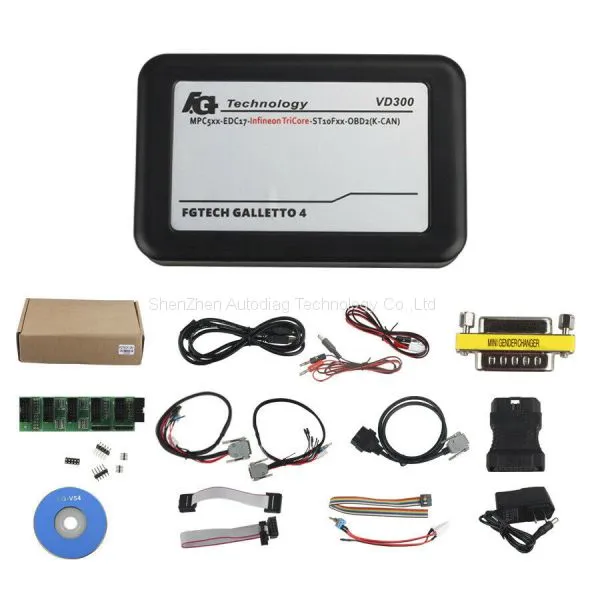

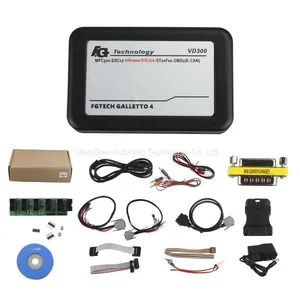

FGTech Galletto V54 Package List:
1pc x New Version Main Interface
1pc x ECU Cable for Boot
1pc x Adapter for BDM to CMD with BDM Cables

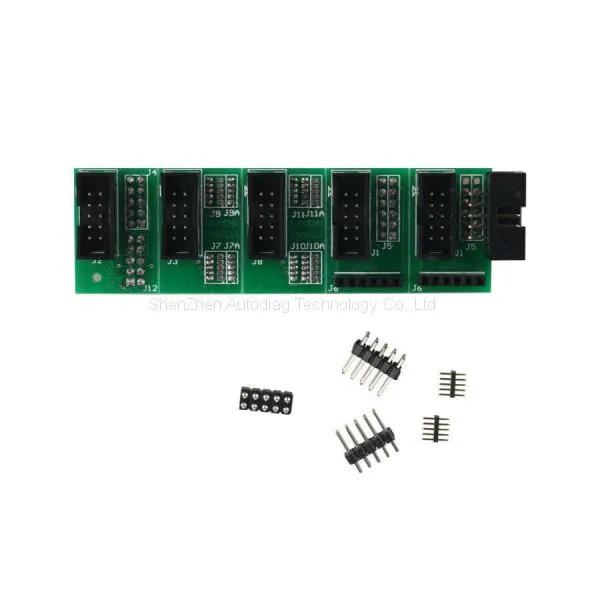

3pcs x BDM Adapters
6pcs x BDM Connectors
2pcs x Power Cable

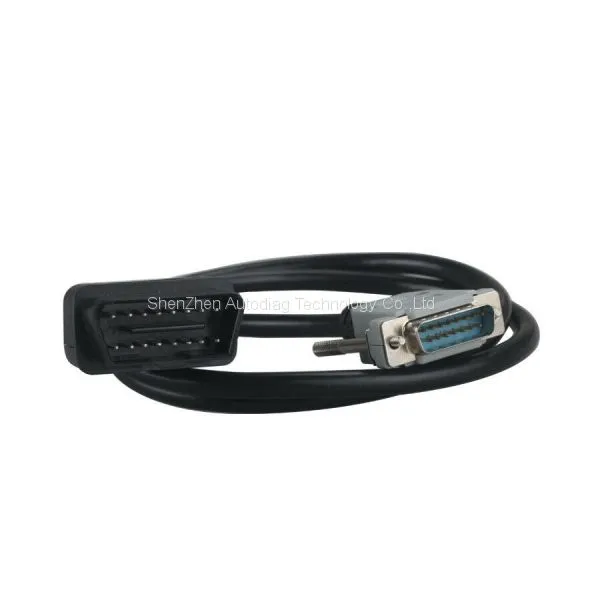

1pc x OBD2 Cable
1pc x USB Cable (1.5meter)
1pc x CD ( SW -MASTER, Documents PDF, Pictures, etc.)
