Diesel Engine Powered Winch; Pulling Motored Winch; Cable Pulling Motored Engine Winch
Product Spotlights
gasoline motor/ diesel motor / electric motor to be selected
US$ 1000 - 1200
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Other, stringing tool
Certification:
ISO
Feature:
Other, stringing tool
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
Gasoline Engine Powered Winch; Pulling Motored Winch; Cable Pulling Motored Engine WinchUS$ 1000 - 1200MOQ: 1 Unit -
Hand Tractor Winch; Pulling Winch; Moving WinchUS$ 2000 - 2200MOQ: 1 Unit
-
Cable Pulling Machine; Electricity Motor Winch; Electricity Engine Pulling WinchUS$ 1100 - 1200MOQ: 1 Unit
-
Conductor Recycle Winch; Cable Recycle Machine; Cable Stringing Recycling Motored WinchUS$ 2300 - 2500MOQ: 1 Unit
-
Cable Conveyor; Electric Cable Conveyor; Cable Pushing Machine; PullerUS$ 1000 - 2000MOQ: 5 Sets
Type
Other, stringing tool
Certification
ISO
Feature
Other, stringing tool
Condition
New
Customized
Non-Customized
Transport Package
wooden box
Specification
3/5/8T
Trademark
ocean
Origin
China

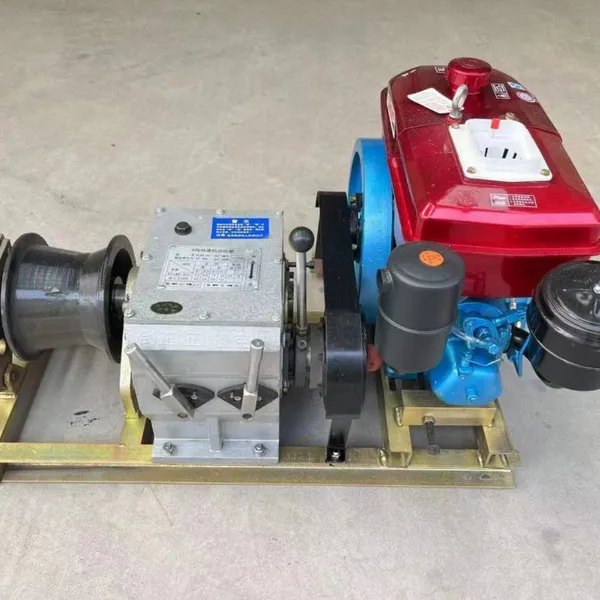

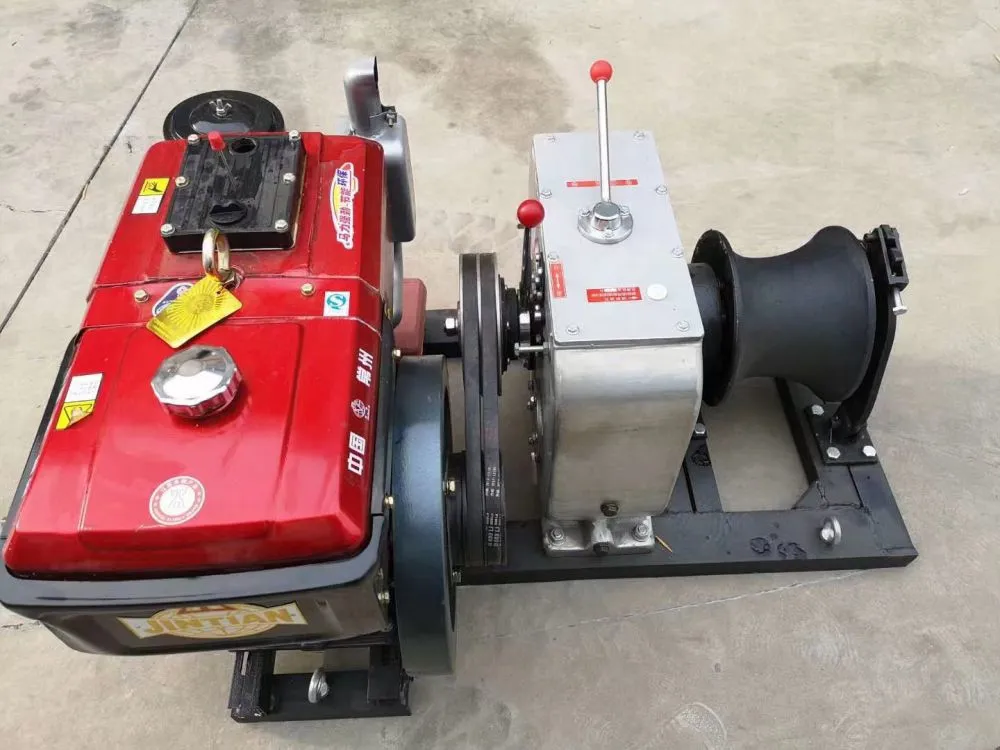

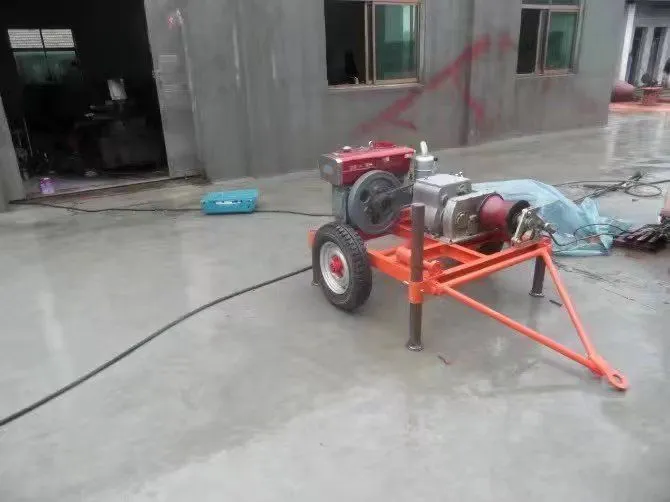

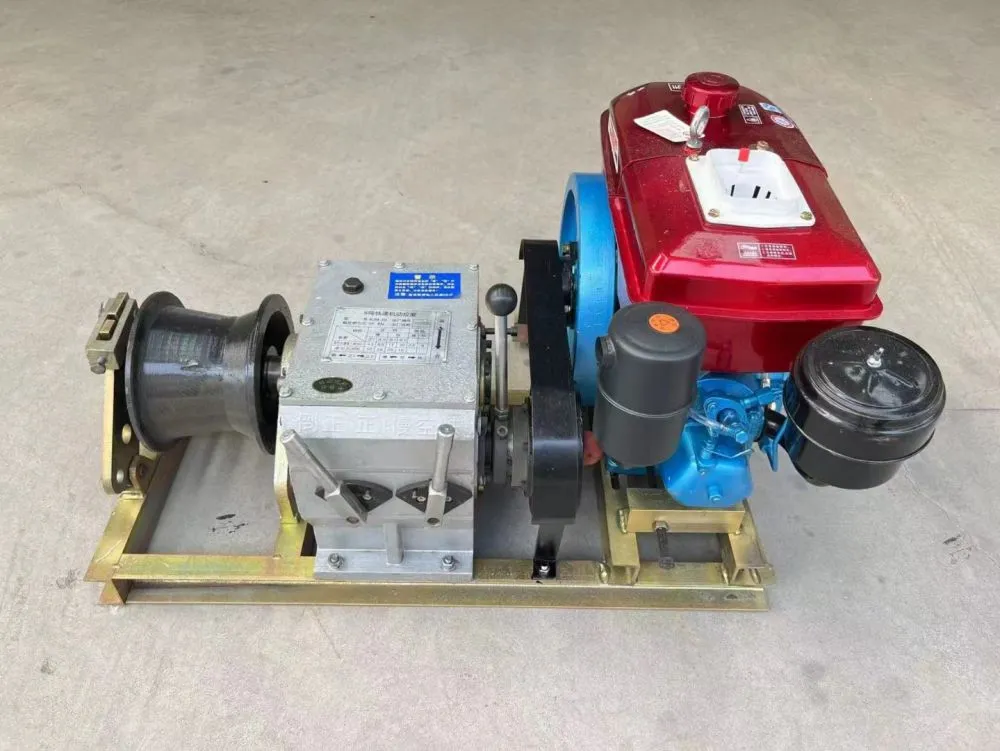

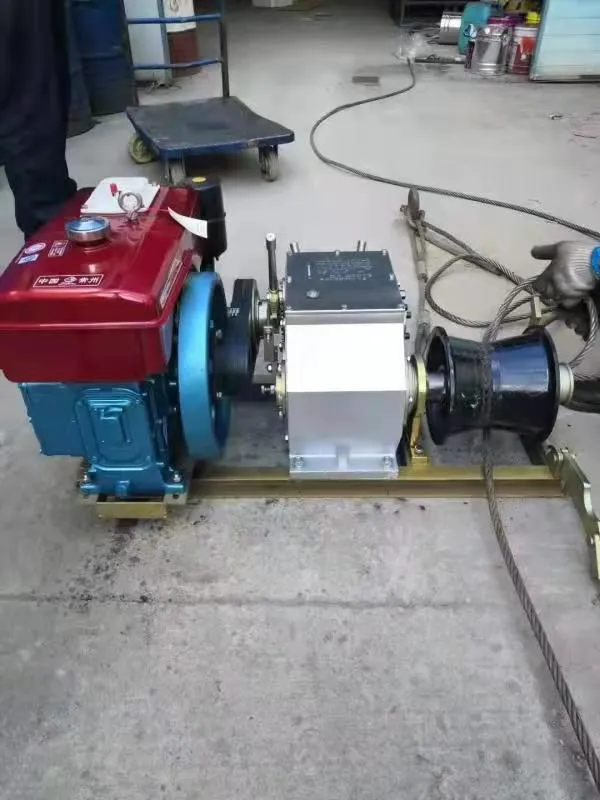

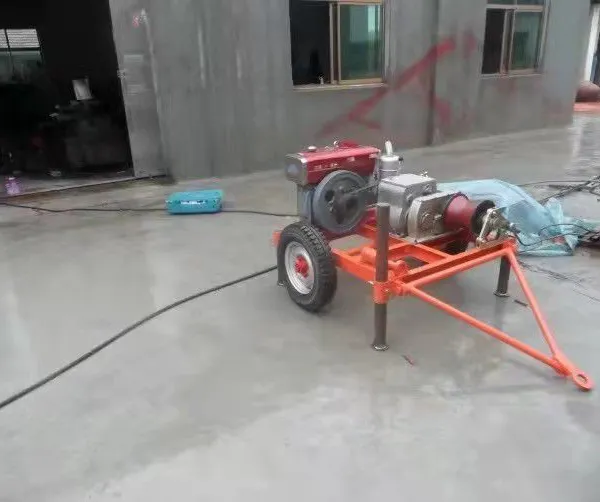

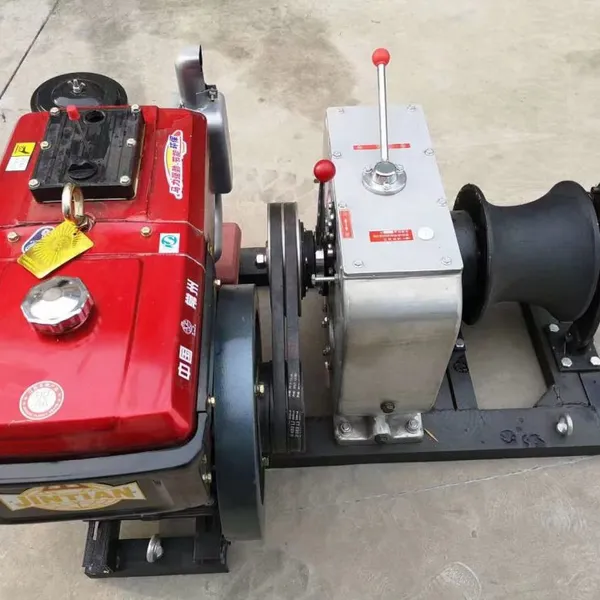

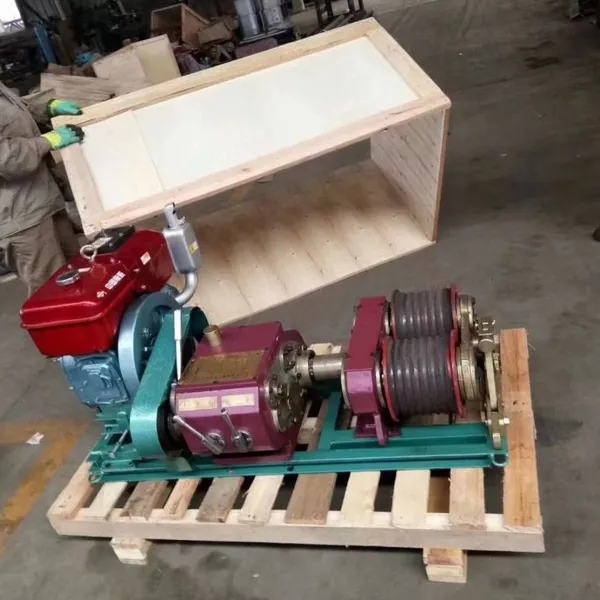

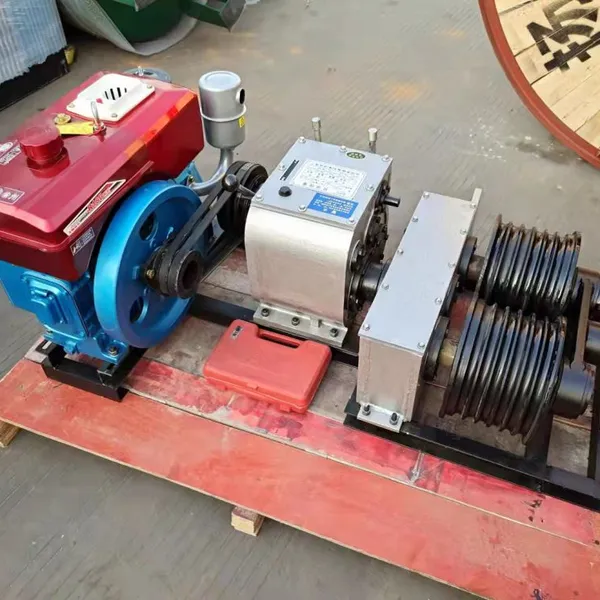

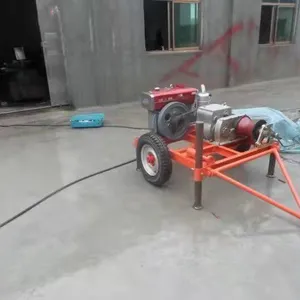

Diesel engine powered winch is used to pull cable/conductor in stringing progress, the motor is diesel engine.
| Model | JJC-30 | JJC-50 |
| Power(HP) | 4hp | 6hp |
| Engine model | Z170F | R175A |
| Speed(rpm) | 2600 | 2600 |
| line pull(KN)/ speed(m/min)(quick) | 7/18 | 15/13.8 |
| line pull(KN）/moderate(m/min)(moderate) | 15/7.2 | 30/5.7 |
| line pull(KN)/speed(m/min)(slow) | 30/4.6 | 50/3.6 |
| reverse speed(m/min) | 5.2 | 6.3 |
| drum bottom Dia(mm) | Φ160 | Φ160 |
| Dimension(mm)/weight(kg) | 800x620x520/140 | 890x670x530/175 |
